Search › Model › ZWE186

ZWE186

Toyota AURIS-COROLLA · 2012 · 2,837 parts · 249 categories

2,837 items

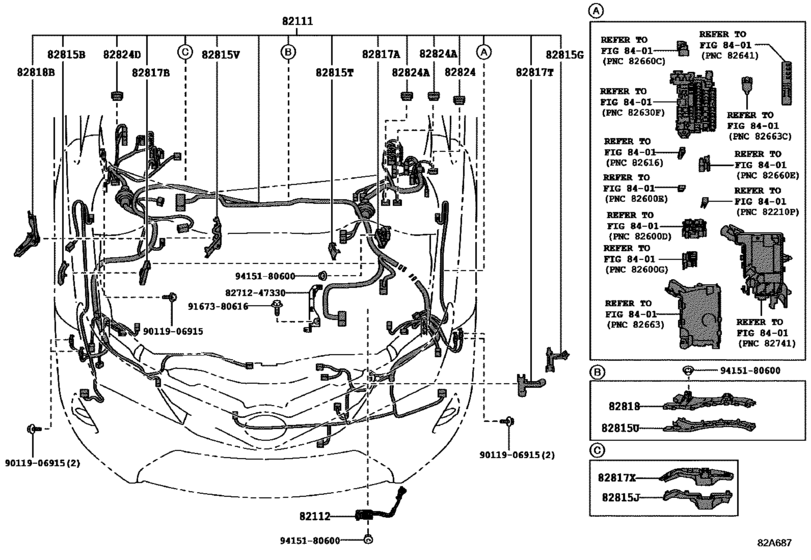

Wiring & Clamp ([04.2016 - ] ENGINE ROOM (1604- )ZWE186) 21

#	OEM	Part name
82111	82111-1HN40	Wire, Engine Room Main
82112	82112-47030	Wire, Engine Room, No.2
82815	82815-47390	Cover, Wiring Harness Protector
82815	82815-47560	Cover, Wiring Harness Protector No.5
82815	82815-47570	Cover, Wiring Harness Protector No.6 - WIRING HARNESS PROTECTOR, NO.8
82815	82815-47670	Cover, Wiring Harness Protector
82815	82815-75010	Cover, Wiring Harness Protector No.5
82815	82815-76160	Cover, Wiring Harness Protector No.5
82817	82817-47610	Protector, Wiring Harness, No.2 - WIRING HARNESS, NO.5
82817	82817-47620	Protector, Wiring Harness, No.1
82817	82817-47800	Protector, Wiring Harness, No.3
82817	82817-47810	Protector, Wiring Harness, No.2 - WIRING HARNESS, NO.6
82818	82817-75070	Protector, Wiring Harness, No.5 - WIRING HARNESS, NO.8
82818	82817-76370	Protector, Wiring Harness, No.3
82824	82824-50350	Connector, Wiring Harness
82824	82824-50360	Connector, Wiring Harness
82824	82824-73030	Connector, Wiring Harness
8271247330	82712-47330	Hose, Suction
9011906915	90119-06915	BOLT W-WASHER
9167380616	91673-80616	Bolt, W/washer
9415180600	94151-80600	Nut, Cap(For Cylinder Head Cover)

OEM	Part name	Category
82111-1HN40	Wire, Engine Room Main	Wiring & Clamp ([04.2016 - ] ENGINE ROOM (1604- )ZWE186)
82112-47030	Wire, Engine Room, No.2	Wiring & Clamp ([04.2016 - ] ENGINE ROOM (1604- )ZWE186)
82712-47330	Hose, Suction	Wiring & Clamp ([04.2016 - ] ENGINE ROOM (1604- )ZWE186)
82815-47390	Cover, Wiring Harness Protector	Wiring & Clamp ([04.2016 - ] ENGINE ROOM (1604- )ZWE186)
82815-47560	Cover, Wiring Harness Protector No.5	Wiring & Clamp ([04.2016 - ] ENGINE ROOM (1604- )ZWE186)
82815-47570	Cover, Wiring Harness Protector No.6 - WIRING HARNESS PROTECTOR, NO.8	Wiring & Clamp ([04.2016 - ] ENGINE ROOM (1604- )ZWE186)
82815-47670	Cover, Wiring Harness Protector	Wiring & Clamp ([04.2016 - ] ENGINE ROOM (1604- )ZWE186)
82815-75010	Cover, Wiring Harness Protector No.5	Wiring & Clamp ([04.2016 - ] ENGINE ROOM (1604- )ZWE186)
82815-76160	Cover, Wiring Harness Protector No.5	Wiring & Clamp ([04.2016 - ] ENGINE ROOM (1604- )ZWE186)
82817-47610	Protector, Wiring Harness, No.2 - WIRING HARNESS, NO.5	Wiring & Clamp ([04.2016 - ] ENGINE ROOM (1604- )ZWE186)
82817-47620	Protector, Wiring Harness, No.1	Wiring & Clamp ([04.2016 - ] ENGINE ROOM (1604- )ZWE186)
82817-47800	Protector, Wiring Harness, No.3	Wiring & Clamp ([04.2016 - ] ENGINE ROOM (1604- )ZWE186)
82817-47810	Protector, Wiring Harness, No.2 - WIRING HARNESS, NO.6	Wiring & Clamp ([04.2016 - ] ENGINE ROOM (1604- )ZWE186)
82817-75070	Protector, Wiring Harness, No.5 - WIRING HARNESS, NO.8	Wiring & Clamp ([04.2016 - ] ENGINE ROOM (1604- )ZWE186)
82817-76370	Protector, Wiring Harness, No.3	Wiring & Clamp ([04.2016 - ] ENGINE ROOM (1604- )ZWE186)
82824-50350	Connector, Wiring Harness	Wiring & Clamp ([04.2016 - ] ENGINE ROOM (1604- )ZWE186)
82824-50360	Connector, Wiring Harness	Wiring & Clamp ([04.2016 - ] ENGINE ROOM (1604- )ZWE186)
82824-73030	Connector, Wiring Harness	Wiring & Clamp ([04.2016 - ] ENGINE ROOM (1604- )ZWE186)
90119-06915	BOLT W-WASHER	Wiring & Clamp ([04.2016 - ] ENGINE ROOM (1604- )ZWE186)
91673-80616	Bolt, W/washer	Wiring & Clamp ([04.2016 - ] ENGINE ROOM (1604- )ZWE186)
94151-80600	Nut, Cap(For Cylinder Head Cover)	Wiring & Clamp ([04.2016 - ] ENGINE ROOM (1604- )ZWE186)

Source: Public OEM parts-catalog data
Variants: 2 / 18
Category: 249
Collected: 2026-08-02
