Search › Model › ZWE186
ZWE186

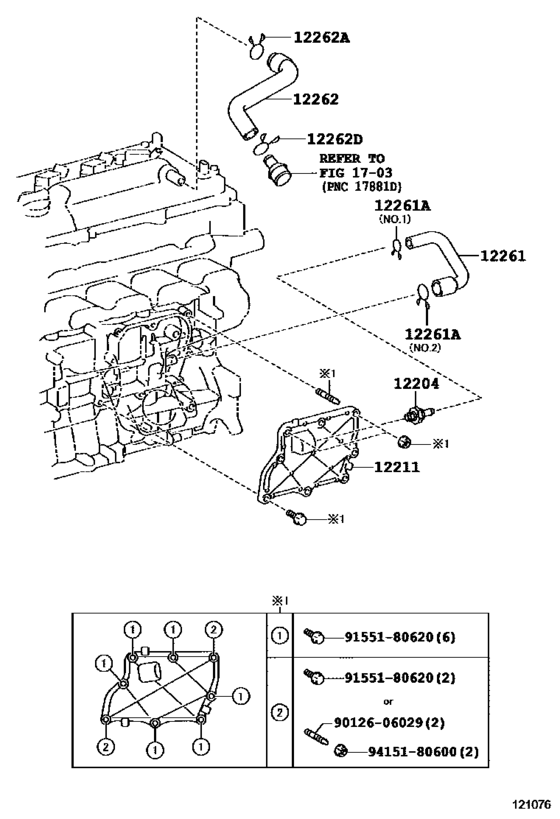

Ventilation Hose ([04.2016 - ] (1604- )2ZRFXE) 11
| # | OEM | Part name |
|---|---|---|
| 12204 | 12204-37010 | Valve Sub-Assy, Ventilation |
| 12211 | 12211-37010 | Case, Ventilation, No.1 |
| 12261 | 12261-37060 | Hose, Ventilation |
| 12261 | 90466-22005 | Clip Or Clamp(For Ventilation Hose) |
| 12261 | 90467-15120 | Clip Or Clamp(For Ventilation Hose) |
| 12262 | 12262-37041 | Hose, Ventilation, No.2 |
| 12262 | 90467-21004 | Clip Or Clamp(For Ventilation Hose) |
| 9012606029 | 90126-06029 | Bolt, Stud(For Vacuum Transmitting Pipe) |
| 9012606029 | 90126-A0014 | Bolt, Stud(For Oil Strainer) |
| 9155180620 | 91551-80620 | Bolt |
| 9415180600 | 94151-80600 | Nut, Cap(For Cylinder Head Cover) |
| OEM | Part name | Category |
|---|---|---|
| 12204-37010 | Valve Sub-Assy, Ventilation | Ventilation Hose ([04.2016 - ] (1604- )2ZRFXE) |
| 12211-37010 | Case, Ventilation, No.1 | Ventilation Hose ([04.2016 - ] (1604- )2ZRFXE) |
| 12261-37060 | Hose, Ventilation | Ventilation Hose ([04.2016 - ] (1604- )2ZRFXE) |
| 12262-37041 | Hose, Ventilation, No.2 | Ventilation Hose ([04.2016 - ] (1604- )2ZRFXE) |
| 90126-06029 | Bolt, Stud(For Vacuum Transmitting Pipe) | Ventilation Hose ([04.2016 - ] (1604- )2ZRFXE) |
| 90126-A0014 | Bolt, Stud(For Oil Strainer) | Ventilation Hose ([04.2016 - ] (1604- )2ZRFXE) |
| 90466-22005 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([04.2016 - ] (1604- )2ZRFXE) |
| 90467-15120 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([04.2016 - ] (1604- )2ZRFXE) |
| 90467-21004 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([04.2016 - ] (1604- )2ZRFXE) |
| 91551-80620 | Bolt | Ventilation Hose ([04.2016 - ] (1604- )2ZRFXE) |
| 94151-80600 | Nut, Cap(For Cylinder Head Cover) | Ventilation Hose ([04.2016 - ] (1604- )2ZRFXE) |
