Search › Model › ZWE186
ZWE186

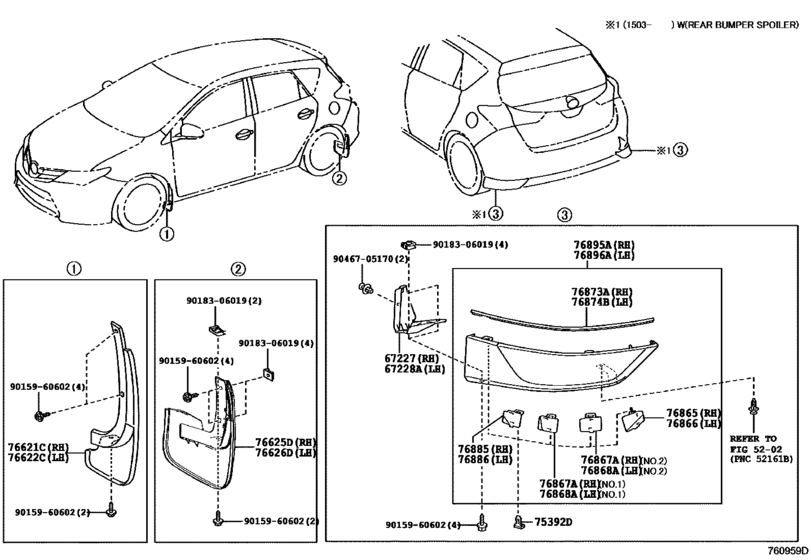

Mudguard & Spoiler ([08.2012 - ] (1208- )) 7
| # | OEM | Part name |
|---|---|---|
| 76621 | 76621-12340 | Mudguad, Front Fender, Rh |
| 76622 | 76622-12330 | Mudguard, Front Fender, Lh |
| 76625 | 76625-12570 | Mudguard, Quarter Panel, Rear Rh |
| 76626 | 76626-12570 | Mudguard, Quarter Panel, Rear Lh |
| 9015960602 | 90159-60602 | SCREW |
| 9018306019 | 90183-06019 | Clip, Outside Moulding, No.1 |
| 9046705170 | 90467-05170 | Clip, Rear Bumper Side |
| OEM | Part name | Category |
|---|---|---|
| 76621-12340 | Mudguad, Front Fender, Rh | Mudguard & Spoiler ([08.2012 - ] (1208- )) |
| 76622-12330 | Mudguard, Front Fender, Lh | Mudguard & Spoiler ([08.2012 - ] (1208- )) |
| 76625-12570 | Mudguard, Quarter Panel, Rear Rh | Mudguard & Spoiler ([08.2012 - ] (1208- )) |
| 76626-12570 | Mudguard, Quarter Panel, Rear Lh | Mudguard & Spoiler ([08.2012 - ] (1208- )) |
| 90159-60602 | SCREW | Mudguard & Spoiler ([08.2012 - ] (1208- )) |
| 90183-06019 | Clip, Outside Moulding, No.1 | Mudguard & Spoiler ([08.2012 - ] (1208- )) |
| 90467-05170 | Clip, Rear Bumper Side | Mudguard & Spoiler ([08.2012 - ] (1208- )) |
