Search › Model › ZWE186

ZWE186

Toyota AURIS-COROLLA · 2012 · 2,837 parts · 249 categories

2,837 items

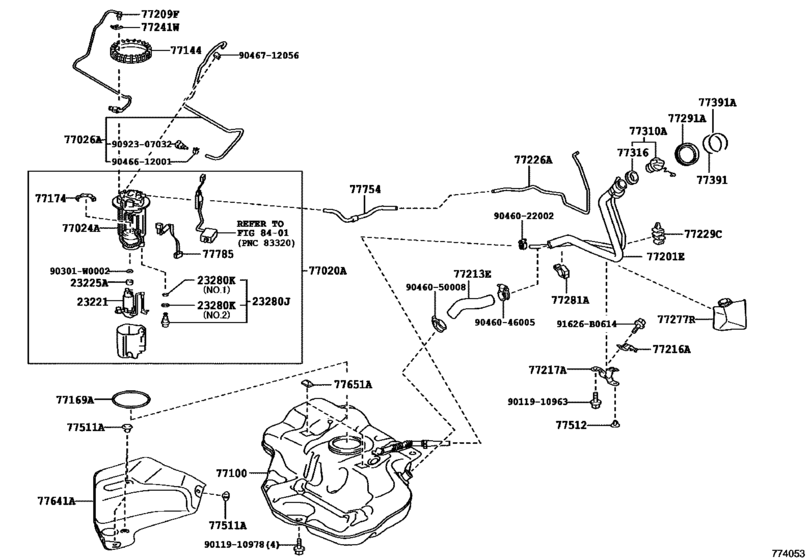

Fuel Tank & Tube ([04.2016 - ] FUEL TANK (1604- )ZWE186) 45

#	OEM	Part name
23221	23220-0Q041	Pump, Fuel
23225	23225-0T010	Spacer, Fuel Pump
23280	23280-21010	Regulator Assy, Fuel Pressure
23280	90301-04013	Ring, O(For Fuel Pump)
23280	90301-15024	Ring, O(For Fuel Pump)
77020	77020-02502	Tube Assy, Fuel Suction W/pump & Gage
77024	77024-02330	Plate Sub-Assy, Fuel Suction
77026	77026-02070	Tube Sub-Assy, Fuel Evaporation, No.1
77100	77001-02560	Tank Assy, Fuel
77144	77144-02110	Retainer, Fuel Pump Gauge
77169	77169-0D030	Gasket, Fuel Suction Tube Set
77174	77174-05010	Support, Fuel Suction, No.1
77201	77201-12840	Pipe Sub-Assy, Fuel Tank Filler
77209	77209-02190	Tube Sub-Assy, Fuel Tank Main
77213	77213-20190	Hose, Fuel Tank To Filler Pipe
77216	77216-12190	Support, Fuel Reservoir Filler Pipe, No.1
77217	77217-47080	Support, Fuel Reservoir Filler Pipe, No.2
77226	77226-12120	Tube, Fuel Tank Breather, No.6
77229	77229-12070	Clamp, Breather Tube
77241	77241-32060	Clip, Tube Joint
77277	77277-12180	Protector, Fuel Tank Filler Pipe
77281	77281-12200	Clamp, Fuel Filler Pipe
77291	77291-12230	Shield, Fuel Tank Filler Pipe
77310	77300-52030	Cap Assy, Fuel Tank
77316	77316-52040	Gasket, Fuel Tank Cap
77391	77391-12020	Ring, Fuel Inlet Box
77391	77391-75010	Ring, Fuel Inlet Box
77511	77512-35140	Bracket, Fuel Tank
77641	77641-02180	Protector, Fuel Tank, No.1
77651	77651-02110	Cushion, Fuel Tank, No.1
77754	77754-02090	Hose, Charcoal Canister Outlet, No.1
77785	77785-02081	Harness, Fuel Pump
77785	77785-12010	Harness, Fuel Pump
90301	90301-W0002	AUTO PART
91626	91626-B0614	BOLT, W/WASHER
9011910963	90119-10963	New Genuine Part
9011910978	90119-10978	New Genuine Part
9046022002	90460-22002	CLAMP
9046022002	90460-22001	CLAMP
9046046005	90460-46005	Clamp (For Fuel Filler Pipe)
9046050008	90460-50008	Clamp (For Fuel Filler Pipe)
9046612001	90466-12001	Clamp Or Clip, Hose(For Water By-Pass Hose, No.1)
9046712056	90467-12056	Clamp Or Clip(For Throttle Body Hose)
9046712056	90466-T0048	New Genuine Part
9092307032	90923-07032	New Genuine Part

OEM	Part name	Category
23220-0Q041	Pump, Fuel	Fuel Tank & Tube ([04.2016 - ] FUEL TANK (1604- )ZWE186)
23225-0T010	Spacer, Fuel Pump	Fuel Tank & Tube ([04.2016 - ] FUEL TANK (1604- )ZWE186)
23280-21010	Regulator Assy, Fuel Pressure	Fuel Tank & Tube ([04.2016 - ] FUEL TANK (1604- )ZWE186)
77001-02560	Tank Assy, Fuel	Fuel Tank & Tube ([04.2016 - ] FUEL TANK (1604- )ZWE186)
77020-02502	Tube Assy, Fuel Suction W/pump & Gage	Fuel Tank & Tube ([04.2016 - ] FUEL TANK (1604- )ZWE186)
77024-02330	Plate Sub-Assy, Fuel Suction	Fuel Tank & Tube ([04.2016 - ] FUEL TANK (1604- )ZWE186)
77026-02070	Tube Sub-Assy, Fuel Evaporation, No.1	Fuel Tank & Tube ([04.2016 - ] FUEL TANK (1604- )ZWE186)
77144-02110	Retainer, Fuel Pump Gauge	Fuel Tank & Tube ([04.2016 - ] FUEL TANK (1604- )ZWE186)
77169-0D030	Gasket, Fuel Suction Tube Set	Fuel Tank & Tube ([04.2016 - ] FUEL TANK (1604- )ZWE186)
77174-05010	Support, Fuel Suction, No.1	Fuel Tank & Tube ([04.2016 - ] FUEL TANK (1604- )ZWE186)
77201-12840	Pipe Sub-Assy, Fuel Tank Filler	Fuel Tank & Tube ([04.2016 - ] FUEL TANK (1604- )ZWE186)
77209-02190	Tube Sub-Assy, Fuel Tank Main	Fuel Tank & Tube ([04.2016 - ] FUEL TANK (1604- )ZWE186)
77213-20190	Hose, Fuel Tank To Filler Pipe	Fuel Tank & Tube ([04.2016 - ] FUEL TANK (1604- )ZWE186)
77216-12190	Support, Fuel Reservoir Filler Pipe, No.1	Fuel Tank & Tube ([04.2016 - ] FUEL TANK (1604- )ZWE186)
77217-47080	Support, Fuel Reservoir Filler Pipe, No.2	Fuel Tank & Tube ([04.2016 - ] FUEL TANK (1604- )ZWE186)
77226-12120	Tube, Fuel Tank Breather, No.6	Fuel Tank & Tube ([04.2016 - ] FUEL TANK (1604- )ZWE186)
77229-12070	Clamp, Breather Tube	Fuel Tank & Tube ([04.2016 - ] FUEL TANK (1604- )ZWE186)
77241-32060	Clip, Tube Joint	Fuel Tank & Tube ([04.2016 - ] FUEL TANK (1604- )ZWE186)
77277-12180	Protector, Fuel Tank Filler Pipe	Fuel Tank & Tube ([04.2016 - ] FUEL TANK (1604- )ZWE186)
77281-12200	Clamp, Fuel Filler Pipe	Fuel Tank & Tube ([04.2016 - ] FUEL TANK (1604- )ZWE186)
77291-12230	Shield, Fuel Tank Filler Pipe	Fuel Tank & Tube ([04.2016 - ] FUEL TANK (1604- )ZWE186)
77300-52030	Cap Assy, Fuel Tank	Fuel Tank & Tube ([04.2016 - ] FUEL TANK (1604- )ZWE186)
77316-52040	Gasket, Fuel Tank Cap	Fuel Tank & Tube ([04.2016 - ] FUEL TANK (1604- )ZWE186)
77391-12020	Ring, Fuel Inlet Box	Fuel Tank & Tube ([04.2016 - ] FUEL TANK (1604- )ZWE186)
77391-75010	Ring, Fuel Inlet Box	Fuel Tank & Tube ([04.2016 - ] FUEL TANK (1604- )ZWE186)
77512-35140	Bracket, Fuel Tank	Fuel Tank & Tube ([04.2016 - ] FUEL TANK (1604- )ZWE186)
77641-02180	Protector, Fuel Tank, No.1	Fuel Tank & Tube ([04.2016 - ] FUEL TANK (1604- )ZWE186)
77651-02110	Cushion, Fuel Tank, No.1	Fuel Tank & Tube ([04.2016 - ] FUEL TANK (1604- )ZWE186)
77754-02090	Hose, Charcoal Canister Outlet, No.1	Fuel Tank & Tube ([04.2016 - ] FUEL TANK (1604- )ZWE186)
77785-02081	Harness, Fuel Pump	Fuel Tank & Tube ([04.2016 - ] FUEL TANK (1604- )ZWE186)
77785-12010	Harness, Fuel Pump	Fuel Tank & Tube ([04.2016 - ] FUEL TANK (1604- )ZWE186)
90119-10963	New Genuine Part	Fuel Tank & Tube ([04.2016 - ] FUEL TANK (1604- )ZWE186)
90119-10978	New Genuine Part	Fuel Tank & Tube ([04.2016 - ] FUEL TANK (1604- )ZWE186)
90301-04013	Ring, O(For Fuel Pump)	Fuel Tank & Tube ([04.2016 - ] FUEL TANK (1604- )ZWE186)
90301-15024	Ring, O(For Fuel Pump)	Fuel Tank & Tube ([04.2016 - ] FUEL TANK (1604- )ZWE186)
90301-W0002	AUTO PART	Fuel Tank & Tube ([04.2016 - ] FUEL TANK (1604- )ZWE186)
90460-22001	CLAMP	Fuel Tank & Tube ([04.2016 - ] FUEL TANK (1604- )ZWE186)
90460-22002	CLAMP	Fuel Tank & Tube ([04.2016 - ] FUEL TANK (1604- )ZWE186)
90460-46005	Clamp (For Fuel Filler Pipe)	Fuel Tank & Tube ([04.2016 - ] FUEL TANK (1604- )ZWE186)
90460-50008	Clamp (For Fuel Filler Pipe)	Fuel Tank & Tube ([04.2016 - ] FUEL TANK (1604- )ZWE186)
90466-12001	Clamp Or Clip, Hose(For Water By-Pass Hose, No.1)	Fuel Tank & Tube ([04.2016 - ] FUEL TANK (1604- )ZWE186)
90466-T0048	New Genuine Part	Fuel Tank & Tube ([04.2016 - ] FUEL TANK (1604- )ZWE186)
90467-12056	Clamp Or Clip(For Throttle Body Hose)	Fuel Tank & Tube ([04.2016 - ] FUEL TANK (1604- )ZWE186)
90923-07032	New Genuine Part	Fuel Tank & Tube ([04.2016 - ] FUEL TANK (1604- )ZWE186)
91626-B0614	BOLT, W/WASHER	Fuel Tank & Tube ([04.2016 - ] FUEL TANK (1604- )ZWE186)
