ZWE186

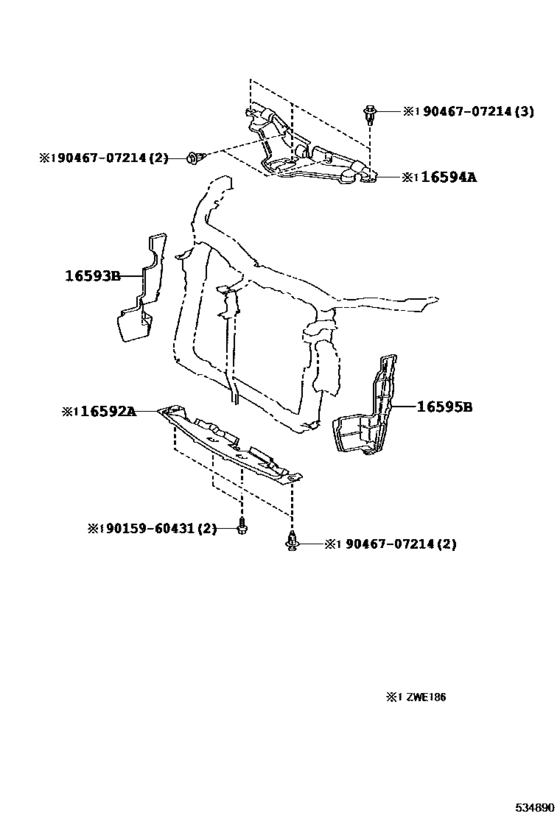

Front Fender Apron & Dash Panel ([08.2012 - ] AIR GUIDE (1208- )) 6
| # | OEM | Part name |
|---|---|---|
| 16592 | 16592-37050 | Guide, Radiator Air, No.3 |
| 16593 | 16593-37090 | Guide, Radiator Air, No.1 Rh |
| 16594 | 16594-37030 | Guide, Radiator Air, No.2 |
| 16595 | 16595-37100 | Guide, Radiator Air, No.1 Lh |
| 9015960431 | 90159-60431 | SCREW |
| 9046707214 | 90467-07214 | Clip, Front Fender Liner |
| OEM | Part name | Category |
|---|---|---|
| 16592-37050 | Guide, Radiator Air, No.3 | Front Fender Apron & Dash Panel ([08.2012 - ] AIR GUIDE (1208- )) |
| 16593-37090 | Guide, Radiator Air, No.1 Rh | Front Fender Apron & Dash Panel ([08.2012 - ] AIR GUIDE (1208- )) |
| 16594-37030 | Guide, Radiator Air, No.2 | Front Fender Apron & Dash Panel ([08.2012 - ] AIR GUIDE (1208- )) |
| 16595-37100 | Guide, Radiator Air, No.1 Lh | Front Fender Apron & Dash Panel ([08.2012 - ] AIR GUIDE (1208- )) |
| 90159-60431 | SCREW | Front Fender Apron & Dash Panel ([08.2012 - ] AIR GUIDE (1208- )) |
| 90467-07214 | Clip, Front Fender Liner | Front Fender Apron & Dash Panel ([08.2012 - ] AIR GUIDE (1208- )) |
