Search › Model › ZWE186

ZWE186

Toyota AURIS-COROLLA · 2012 · 2,837 parts · 249 categories

2,837 items

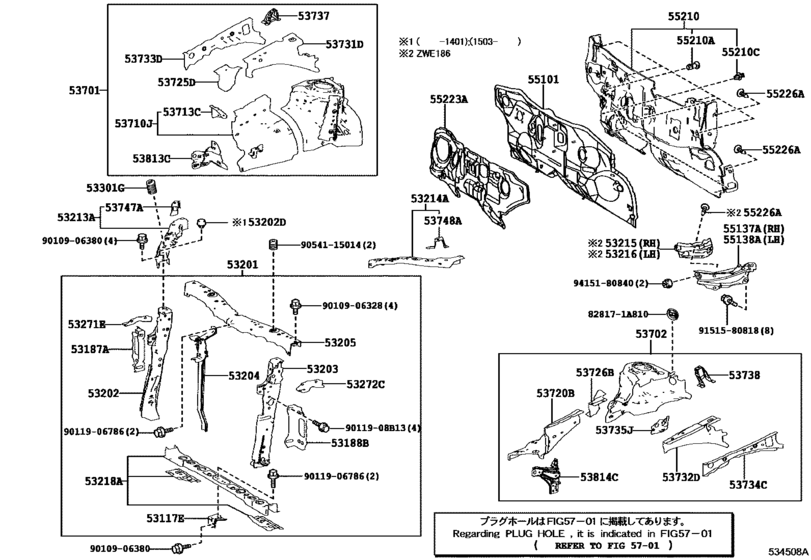

Front Fender Apron & Dash Panel ([08.2012 - ] (1208- )) 52

#	OEM	Part name
53117	53117-21011	Bracket, Radiator Grille, Lower
53187	53187-12030	Stay, Radiator Support, Rh
53188	53188-12030	Stay, Radiator Support, Lh
53201	53201-12906	Support Sub-Assy, Radiator
53202	53202-12520	Support Sub-Assy, Radiator, Rh
53202	90541-09117	Cushion, Radiator Support
53203	53203-12490	Support Sub-Assy, Radiator, Lh
53204	53209-12161	Brace Sub-Assy, Radiator Support To Cross Member
53205	53205-12310	Support Sub-Assy, Radiator, Upper
53213	53107-12030	Support, Radiator, Upper Rh
53214	53108-12040	Support, Radiator, Upper Lh
53215	55211-02190	Silencer, Front Panel, Rh
53216	55212-02020	Silencer, Front Panel, Lh
53218	53218-12901	Support, Radiator, Lower
53271	53271-12100	Bracket, Headlamp Mounting, Rh
53272	53272-12070	Bracket, Headlamp Mounting, Lh
53301	53384-50010	Cushion, Hood Bumper
53701	53701-12A40	Apron Sub-Assy, Front Fender, Rh
53702	53702-12A50	Apron Sub-Assy, Front Fender, Lh
53710	53710-12030	Apron Assy, Front Fender, Rh
53713	53713-12160	Extension Sub-Assy, Front Fender Apron, Front Rh
53720	53720-12030	Apron Assy, Front Fender, Lh
53725	53725-12040	Reinforcement, Front Spring Support, No.2 Rh
53726	53726-12040	Reinforcement, Front Spring Support, No.2 Lh
53731	53731-12170	Member, Front Apron To Cowl Side, Upper Rh
53732	53732-12150	Member, Front Apron To Cowl Side, Upper Lh
53733	53733-12070	Member, Front Apron To Cowl Side, Lower Front Rh
53734	53734-12070	Member, Front Apron To Cowl Side, Lower Front Lh
53735	53735-12070	Patch, Front Fender Apron, No.5
53737	53737-12120	Plate, Front Apron To Cowl Side Member, Rh
53738	53738-12080	Plate, Front Apron To Cowl Side Member, Lh
53747	53747-12060	Extension, Apron Fender Side, Rh
53748	53748-12070	Extension, Apron Fender Side, Lh
53813	53813-12160	Extension, Front Fender, Rh
53814	53814-12110	Extension, Front Fender, Lh
55101	55101-12C30	Panel Sub-Assy, Dash
55137	55137-12071	Brace, Dash To Frame, Rh
55138	55138-12041	Brace, Dash To Frame, Lh
55210	55210-02620	Insulator Assy, Dash Panel
55210	90467-11122	Clip
55210	90467-11127	Clip
55223	55223-47060	Insulator, Dash Panel, Outer
55226	90467-06020-C0	Clip
828171	82817-1A810	Grommet(For Front Fender Apron)
9011908	90119-08B13	BOLT WWASHER
9010906328	90109-06328	BOLT
9010906328	90080-10342	New Genuine Part
9010906380	90109-06380	BOLT
9011906786	90119-06786	BOLT WWASHER
9054115014	90541-15014	Cushion, Hood Bumper
9151580818	91515-80818	New Genuine Part
9415180840	94151-80840	NUT, FLANGE

OEM	Part name	Category
53107-12030	Support, Radiator, Upper Rh	Front Fender Apron & Dash Panel ([08.2012 - ] (1208- ))
53108-12040	Support, Radiator, Upper Lh	Front Fender Apron & Dash Panel ([08.2012 - ] (1208- ))
53117-21011	Bracket, Radiator Grille, Lower	Front Fender Apron & Dash Panel ([08.2012 - ] (1208- ))
53187-12030	Stay, Radiator Support, Rh	Front Fender Apron & Dash Panel ([08.2012 - ] (1208- ))
53188-12030	Stay, Radiator Support, Lh	Front Fender Apron & Dash Panel ([08.2012 - ] (1208- ))
53201-12906	Support Sub-Assy, Radiator	Front Fender Apron & Dash Panel ([08.2012 - ] (1208- ))
53202-12520	Support Sub-Assy, Radiator, Rh	Front Fender Apron & Dash Panel ([08.2012 - ] (1208- ))
53203-12490	Support Sub-Assy, Radiator, Lh	Front Fender Apron & Dash Panel ([08.2012 - ] (1208- ))
53205-12310	Support Sub-Assy, Radiator, Upper	Front Fender Apron & Dash Panel ([08.2012 - ] (1208- ))
53209-12161	Brace Sub-Assy, Radiator Support To Cross Member	Front Fender Apron & Dash Panel ([08.2012 - ] (1208- ))
53218-12901	Support, Radiator, Lower	Front Fender Apron & Dash Panel ([08.2012 - ] (1208- ))
53271-12100	Bracket, Headlamp Mounting, Rh	Front Fender Apron & Dash Panel ([08.2012 - ] (1208- ))
53272-12070	Bracket, Headlamp Mounting, Lh	Front Fender Apron & Dash Panel ([08.2012 - ] (1208- ))
53384-50010	Cushion, Hood Bumper	Front Fender Apron & Dash Panel ([08.2012 - ] (1208- ))
53701-12A40	Apron Sub-Assy, Front Fender, Rh	Front Fender Apron & Dash Panel ([08.2012 - ] (1208- ))
53702-12A50	Apron Sub-Assy, Front Fender, Lh	Front Fender Apron & Dash Panel ([08.2012 - ] (1208- ))
53710-12030	Apron Assy, Front Fender, Rh	Front Fender Apron & Dash Panel ([08.2012 - ] (1208- ))
53713-12160	Extension Sub-Assy, Front Fender Apron, Front Rh	Front Fender Apron & Dash Panel ([08.2012 - ] (1208- ))
53720-12030	Apron Assy, Front Fender, Lh	Front Fender Apron & Dash Panel ([08.2012 - ] (1208- ))
53725-12040	Reinforcement, Front Spring Support, No.2 Rh	Front Fender Apron & Dash Panel ([08.2012 - ] (1208- ))
53726-12040	Reinforcement, Front Spring Support, No.2 Lh	Front Fender Apron & Dash Panel ([08.2012 - ] (1208- ))
53731-12170	Member, Front Apron To Cowl Side, Upper Rh	Front Fender Apron & Dash Panel ([08.2012 - ] (1208- ))
53732-12150	Member, Front Apron To Cowl Side, Upper Lh	Front Fender Apron & Dash Panel ([08.2012 - ] (1208- ))
53733-12070	Member, Front Apron To Cowl Side, Lower Front Rh	Front Fender Apron & Dash Panel ([08.2012 - ] (1208- ))
53734-12070	Member, Front Apron To Cowl Side, Lower Front Lh	Front Fender Apron & Dash Panel ([08.2012 - ] (1208- ))
53735-12070	Patch, Front Fender Apron, No.5	Front Fender Apron & Dash Panel ([08.2012 - ] (1208- ))
53737-12120	Plate, Front Apron To Cowl Side Member, Rh	Front Fender Apron & Dash Panel ([08.2012 - ] (1208- ))
53738-12080	Plate, Front Apron To Cowl Side Member, Lh	Front Fender Apron & Dash Panel ([08.2012 - ] (1208- ))
53747-12060	Extension, Apron Fender Side, Rh	Front Fender Apron & Dash Panel ([08.2012 - ] (1208- ))
53748-12070	Extension, Apron Fender Side, Lh	Front Fender Apron & Dash Panel ([08.2012 - ] (1208- ))
53813-12160	Extension, Front Fender, Rh	Front Fender Apron & Dash Panel ([08.2012 - ] (1208- ))
53814-12110	Extension, Front Fender, Lh	Front Fender Apron & Dash Panel ([08.2012 - ] (1208- ))
55101-12C30	Panel Sub-Assy, Dash	Front Fender Apron & Dash Panel ([08.2012 - ] (1208- ))
55137-12071	Brace, Dash To Frame, Rh	Front Fender Apron & Dash Panel ([08.2012 - ] (1208- ))
55138-12041	Brace, Dash To Frame, Lh	Front Fender Apron & Dash Panel ([08.2012 - ] (1208- ))
55210-02620	Insulator Assy, Dash Panel	Front Fender Apron & Dash Panel ([08.2012 - ] (1208- ))
55211-02190	Silencer, Front Panel, Rh	Front Fender Apron & Dash Panel ([08.2012 - ] (1208- ))
55212-02020	Silencer, Front Panel, Lh	Front Fender Apron & Dash Panel ([08.2012 - ] (1208- ))
55223-47060	Insulator, Dash Panel, Outer	Front Fender Apron & Dash Panel ([08.2012 - ] (1208- ))
82817-1A810	Grommet(For Front Fender Apron)	Front Fender Apron & Dash Panel ([08.2012 - ] (1208- ))
90080-10342	New Genuine Part	Front Fender Apron & Dash Panel ([08.2012 - ] (1208- ))
90109-06328	BOLT	Front Fender Apron & Dash Panel ([08.2012 - ] (1208- ))
90109-06380	BOLT	Front Fender Apron & Dash Panel ([08.2012 - ] (1208- ))
90119-06786	BOLT WWASHER	Front Fender Apron & Dash Panel ([08.2012 - ] (1208- ))
90119-08B13	BOLT WWASHER	Front Fender Apron & Dash Panel ([08.2012 - ] (1208- ))
90467-06020-C0	Clip	Front Fender Apron & Dash Panel ([08.2012 - ] (1208- ))
90467-11122	Clip	Front Fender Apron & Dash Panel ([08.2012 - ] (1208- ))
90467-11127	Clip	Front Fender Apron & Dash Panel ([08.2012 - ] (1208- ))
90541-09117	Cushion, Radiator Support	Front Fender Apron & Dash Panel ([08.2012 - ] (1208- ))
90541-15014	Cushion, Hood Bumper	Front Fender Apron & Dash Panel ([08.2012 - ] (1208- ))
91515-80818	New Genuine Part	Front Fender Apron & Dash Panel ([08.2012 - ] (1208- ))
94151-80840	NUT, FLANGE	Front Fender Apron & Dash Panel ([08.2012 - ] (1208- ))

Source: Public OEM parts-catalog data
Variants: 2 / 18
Category: 249
Collected: 2026-08-02
