ZWE186

Toyota AURIS-COROLLA · 2012 · 2,837 parts · 249 categories

← Back to categories

2,837 items

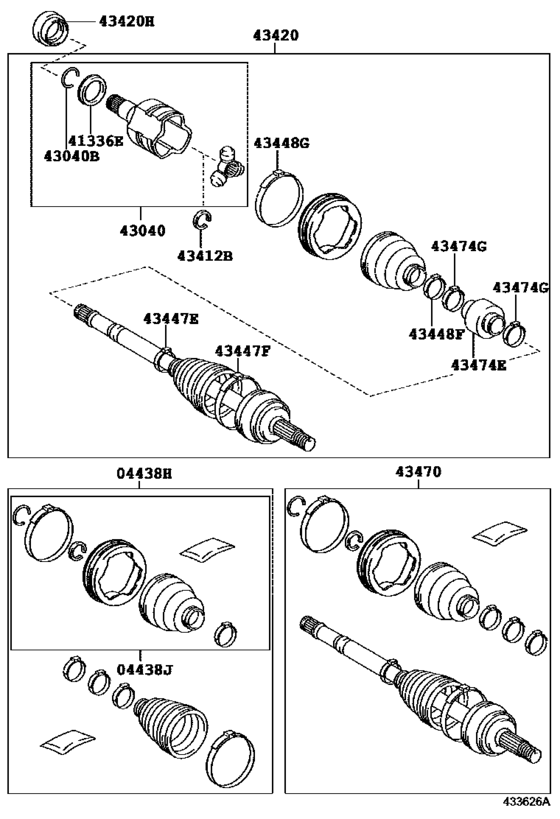

Front Drive Shaft ([04.2016 - ] ﾋﾀﾞﾘｶﾞﾜ (1604- )ZWE186) 18

#	OEM	Part name
4438	04428-47064	Boot Kit, Front Drive Shaft, In & Outboard, Rh
4438	04428-47065	Boot Kit, Front Drive Shaft, In & Outboard, Rh
4438	04437-47033	Boot Kit, Front Drive Shaft Inboard Joint, Rh
41336	41336-28020	Cover, Front Drive Shaft Dust, Lh
43040	43040-47030	Joint Assy, Front Drive Inboard, Lh
43040	90521-33002	Ring, Hole Snap (For Rear Differential Side Gear Shaft)
43412	43425-12070	Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)
43420	43420-12A60	Shaft Assy, Front Drive, Lh
43420	90311-50045	Oil Seal, Front Drive Shaft, Lh
43420	90311-50064	SEAL TYPE T OIL
43447	42345-12230	Clamp (For Front Axle Outboard Joint Boot Rh)
43447	42345-12240	Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)
43448	42345-12180	Clamp (For Front Axle Outboard Joint Boot Lh)
43470	43470-80392	Shaft Assy, Front Drive Outboard Joint, Lh
43470	43470-80406	Shaft Assy, Front Drive Outboard Joint, Lh
43474	43474-12160	Damper, Drive Shaft
43474	42345-12090	Clamp (For Drive Shaft Damper Setting)
43474	42345-14010	Clamp, Rear Drive Shaft Boot

OEM	Part name	Category
04428-47064	Boot Kit, Front Drive Shaft, In & Outboard, Rh	Front Drive Shaft ([04.2016 - ] ﾋﾀﾞﾘｶﾞﾜ (1604- )ZWE186)
04428-47065	Boot Kit, Front Drive Shaft, In & Outboard, Rh	Front Drive Shaft ([04.2016 - ] ﾋﾀﾞﾘｶﾞﾜ (1604- )ZWE186)
04437-47033	Boot Kit, Front Drive Shaft Inboard Joint, Rh	Front Drive Shaft ([04.2016 - ] ﾋﾀﾞﾘｶﾞﾜ (1604- )ZWE186)
41336-28020	Cover, Front Drive Shaft Dust, Lh	Front Drive Shaft ([04.2016 - ] ﾋﾀﾞﾘｶﾞﾜ (1604- )ZWE186)
42345-12090	Clamp (For Drive Shaft Damper Setting)	Front Drive Shaft ([04.2016 - ] ﾋﾀﾞﾘｶﾞﾜ (1604- )ZWE186)
42345-12180	Clamp (For Front Axle Outboard Joint Boot Lh)	Front Drive Shaft ([04.2016 - ] ﾋﾀﾞﾘｶﾞﾜ (1604- )ZWE186)
42345-12230	Clamp (For Front Axle Outboard Joint Boot Rh)	Front Drive Shaft ([04.2016 - ] ﾋﾀﾞﾘｶﾞﾜ (1604- )ZWE186)
42345-12240	Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)	Front Drive Shaft ([04.2016 - ] ﾋﾀﾞﾘｶﾞﾜ (1604- )ZWE186)
42345-14010	Clamp, Rear Drive Shaft Boot	Front Drive Shaft ([04.2016 - ] ﾋﾀﾞﾘｶﾞﾜ (1604- )ZWE186)
43040-47030	Joint Assy, Front Drive Inboard, Lh	Front Drive Shaft ([04.2016 - ] ﾋﾀﾞﾘｶﾞﾜ (1604- )ZWE186)
43420-12A60	Shaft Assy, Front Drive, Lh	Front Drive Shaft ([04.2016 - ] ﾋﾀﾞﾘｶﾞﾜ (1604- )ZWE186)
43425-12070	Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)	Front Drive Shaft ([04.2016 - ] ﾋﾀﾞﾘｶﾞﾜ (1604- )ZWE186)
43470-80392	Shaft Assy, Front Drive Outboard Joint, Lh	Front Drive Shaft ([04.2016 - ] ﾋﾀﾞﾘｶﾞﾜ (1604- )ZWE186)
43470-80406	Shaft Assy, Front Drive Outboard Joint, Lh	Front Drive Shaft ([04.2016 - ] ﾋﾀﾞﾘｶﾞﾜ (1604- )ZWE186)
43474-12160	Damper, Drive Shaft	Front Drive Shaft ([04.2016 - ] ﾋﾀﾞﾘｶﾞﾜ (1604- )ZWE186)
90311-50045	Oil Seal, Front Drive Shaft, Lh	Front Drive Shaft ([04.2016 - ] ﾋﾀﾞﾘｶﾞﾜ (1604- )ZWE186)
90311-50064	SEAL TYPE T OIL	Front Drive Shaft ([04.2016 - ] ﾋﾀﾞﾘｶﾞﾜ (1604- )ZWE186)
90521-33002	Ring, Hole Snap (For Rear Differential Side Gear Shaft)	Front Drive Shaft ([04.2016 - ] ﾋﾀﾞﾘｶﾞﾜ (1604- )ZWE186)
