ZWE186

Toyota AURIS-COROLLA · 2012 · 2,837 parts · 249 categories

2,837 items

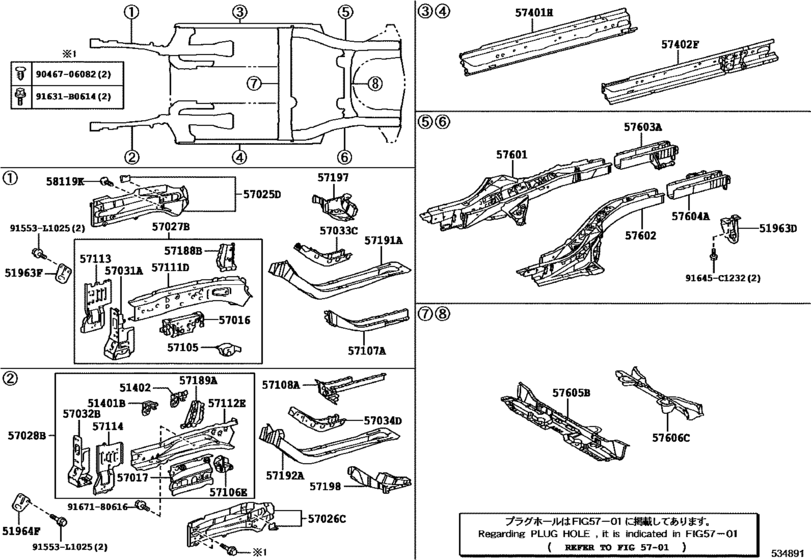

Floor Side Member ([04.2016 - ] (1604- )ZWE186) 45

#	OEM	Part name
51401	51401-12020	Bracket Sub-Assy, Engine Front Mounting
51402	51402-12020	Bracket Sub-Assy, Engine Front Mounting, Lh
51963	51968-12180	Hook, Transport, Rear Lh
51963	51963-12250	Hook, Transport
51964	51964-12040	Hook, Transport, Lh
57016	57016-12110	Reinforcement Sub-Assy, Front Side Member, Rh
57017	57017-12070	Reinforcement Sub-Assy, Front Side Member, Lh
57025	57025-12010	Member Sub-Assy, Front Side, Outer Rh
57025	51681-12080	Plate, Front Brake Flexible Hose Support, Rh
57026	57026-12020	Member Sub-Assy, Front Side, Outer Lh
57026	51682-12080	Plate, Front Brake Flexible Hose Support, Lh
57027	57027-12010	Member Sub-Assy, Front Side, Inner Rh
57028	57028-12020	Member Sub-Assy, Front Side, Inner Lh
57031	57031-12010	Reinforce Sub-Assy, Front Side Member, No.2 Rh
57032	57032-12010	Reinforcement Sub-Assy, Front Side Member, No.2 Lh
57033	57033-12010	Reinforce Sub-Assy, Front Side Member, No.3 Rh
57034	57034-12010	Reinforce Sub-Assy, Front Side Menber, No.3 Lh
57105	57105-12160	Bracket Sub-Assy, Front Suspension Member Mounting, Front Rh
57106	57106-12150	Bracket Sub-Assy, Front Suspension Member Mounting, Front Lh
57107	57107-12120	Plate Sub-Assy, Front Side Member, No.2 Rh
57108	57108-12140	Plate Sub-Assy, Front Side Member, No.2 Lh
57111	57111-12230	Member, Front Side, Rh
57112	57112-12190	Member, Front Side, Lh
57113	57113-12220	Extension, Front Side Member, Rh
57114	57114-12191	Extension, Front Side Member, Lh
57188	57188-12030	Gusset, Front Side Member To Spring Support, Rh
57189	57189-12010	Gusset, Front Side Member To Spring Support, Lh
57191	57191-12070	Member, Front Side, Inner Rear Rh
57192	57192-12060	Member, Front Side, Inner Rear Lh
57197	57197-12040	Box, Torque, Front Rh
57198	57198-12040	Box, Torque, Front Lh
57401	57401-12600	Member Sub-Assy, Floor Side, Inner Rh
57402	57402-12610	Member Sub-Assy, Floor Side, Inner Lh
57601	57601-12A10	Member Sub-Assy, Rear Floor Side, Rh
57602	57602-12A10	Member Sub-Assy, Rear Floor Side, Lh
57603	57603-12070	Member Sub-Assy, Rear Floor Side, Rear Rh
57604	57604-12070	Member Sub-Assy, Rear Floor Side, Rear Lh
57605	57605-02190	Member Sub-Assy, Rear Floor Cross, No.1
57606	57606-12270	Member Sub-Assy, Rear Floor Cross, No.2
58119	58119-12020	Cover, Front Floor Side, Front
91553	91553-L1025	New Genuine Part
91631	91631-B0614	BOLT WWASHER
91645	91645-C1232	New Genuine Part
9046706082	90467-06082	New Genuine Part
9167180616	91671-80616	BOLT FLANGE

OEM	Part name	Category
51401-12020	Bracket Sub-Assy, Engine Front Mounting	Floor Side Member ([04.2016 - ] (1604- )ZWE186)
51402-12020	Bracket Sub-Assy, Engine Front Mounting, Lh	Floor Side Member ([04.2016 - ] (1604- )ZWE186)
51681-12080	Plate, Front Brake Flexible Hose Support, Rh	Floor Side Member ([04.2016 - ] (1604- )ZWE186)
51682-12080	Plate, Front Brake Flexible Hose Support, Lh	Floor Side Member ([04.2016 - ] (1604- )ZWE186)
51963-12250	Hook, Transport	Floor Side Member ([04.2016 - ] (1604- )ZWE186)
51964-12040	Hook, Transport, Lh	Floor Side Member ([04.2016 - ] (1604- )ZWE186)
51968-12180	Hook, Transport, Rear Lh	Floor Side Member ([04.2016 - ] (1604- )ZWE186)
57016-12110	Reinforcement Sub-Assy, Front Side Member, Rh	Floor Side Member ([04.2016 - ] (1604- )ZWE186)
57017-12070	Reinforcement Sub-Assy, Front Side Member, Lh	Floor Side Member ([04.2016 - ] (1604- )ZWE186)
57025-12010	Member Sub-Assy, Front Side, Outer Rh	Floor Side Member ([04.2016 - ] (1604- )ZWE186)
57026-12020	Member Sub-Assy, Front Side, Outer Lh	Floor Side Member ([04.2016 - ] (1604- )ZWE186)
57027-12010	Member Sub-Assy, Front Side, Inner Rh	Floor Side Member ([04.2016 - ] (1604- )ZWE186)
57028-12020	Member Sub-Assy, Front Side, Inner Lh	Floor Side Member ([04.2016 - ] (1604- )ZWE186)
57031-12010	Reinforce Sub-Assy, Front Side Member, No.2 Rh	Floor Side Member ([04.2016 - ] (1604- )ZWE186)
57032-12010	Reinforcement Sub-Assy, Front Side Member, No.2 Lh	Floor Side Member ([04.2016 - ] (1604- )ZWE186)
57033-12010	Reinforce Sub-Assy, Front Side Member, No.3 Rh	Floor Side Member ([04.2016 - ] (1604- )ZWE186)
57034-12010	Reinforce Sub-Assy, Front Side Menber, No.3 Lh	Floor Side Member ([04.2016 - ] (1604- )ZWE186)
57105-12160	Bracket Sub-Assy, Front Suspension Member Mounting, Front Rh	Floor Side Member ([04.2016 - ] (1604- )ZWE186)
57106-12150	Bracket Sub-Assy, Front Suspension Member Mounting, Front Lh	Floor Side Member ([04.2016 - ] (1604- )ZWE186)
57107-12120	Plate Sub-Assy, Front Side Member, No.2 Rh	Floor Side Member ([04.2016 - ] (1604- )ZWE186)
57108-12140	Plate Sub-Assy, Front Side Member, No.2 Lh	Floor Side Member ([04.2016 - ] (1604- )ZWE186)
57111-12230	Member, Front Side, Rh	Floor Side Member ([04.2016 - ] (1604- )ZWE186)
57112-12190	Member, Front Side, Lh	Floor Side Member ([04.2016 - ] (1604- )ZWE186)
57113-12220	Extension, Front Side Member, Rh	Floor Side Member ([04.2016 - ] (1604- )ZWE186)
57114-12191	Extension, Front Side Member, Lh	Floor Side Member ([04.2016 - ] (1604- )ZWE186)
57188-12030	Gusset, Front Side Member To Spring Support, Rh	Floor Side Member ([04.2016 - ] (1604- )ZWE186)
57189-12010	Gusset, Front Side Member To Spring Support, Lh	Floor Side Member ([04.2016 - ] (1604- )ZWE186)
57191-12070	Member, Front Side, Inner Rear Rh	Floor Side Member ([04.2016 - ] (1604- )ZWE186)
57192-12060	Member, Front Side, Inner Rear Lh	Floor Side Member ([04.2016 - ] (1604- )ZWE186)
57197-12040	Box, Torque, Front Rh	Floor Side Member ([04.2016 - ] (1604- )ZWE186)
57198-12040	Box, Torque, Front Lh	Floor Side Member ([04.2016 - ] (1604- )ZWE186)
57401-12600	Member Sub-Assy, Floor Side, Inner Rh	Floor Side Member ([04.2016 - ] (1604- )ZWE186)
57402-12610	Member Sub-Assy, Floor Side, Inner Lh	Floor Side Member ([04.2016 - ] (1604- )ZWE186)
57601-12A10	Member Sub-Assy, Rear Floor Side, Rh	Floor Side Member ([04.2016 - ] (1604- )ZWE186)
57602-12A10	Member Sub-Assy, Rear Floor Side, Lh	Floor Side Member ([04.2016 - ] (1604- )ZWE186)
57603-12070	Member Sub-Assy, Rear Floor Side, Rear Rh	Floor Side Member ([04.2016 - ] (1604- )ZWE186)
57604-12070	Member Sub-Assy, Rear Floor Side, Rear Lh	Floor Side Member ([04.2016 - ] (1604- )ZWE186)
57605-02190	Member Sub-Assy, Rear Floor Cross, No.1	Floor Side Member ([04.2016 - ] (1604- )ZWE186)
57606-12270	Member Sub-Assy, Rear Floor Cross, No.2	Floor Side Member ([04.2016 - ] (1604- )ZWE186)
58119-12020	Cover, Front Floor Side, Front	Floor Side Member ([04.2016 - ] (1604- )ZWE186)
90467-06082	New Genuine Part	Floor Side Member ([04.2016 - ] (1604- )ZWE186)
91553-L1025	New Genuine Part	Floor Side Member ([04.2016 - ] (1604- )ZWE186)
91631-B0614	BOLT WWASHER	Floor Side Member ([04.2016 - ] (1604- )ZWE186)
91645-C1232	New Genuine Part	Floor Side Member ([04.2016 - ] (1604- )ZWE186)
91671-80616	BOLT FLANGE	Floor Side Member ([04.2016 - ] (1604- )ZWE186)
