ZWE186

Toyota AURIS-COROLLA · 2012 · 2,837 parts · 249 categories

2,837 items

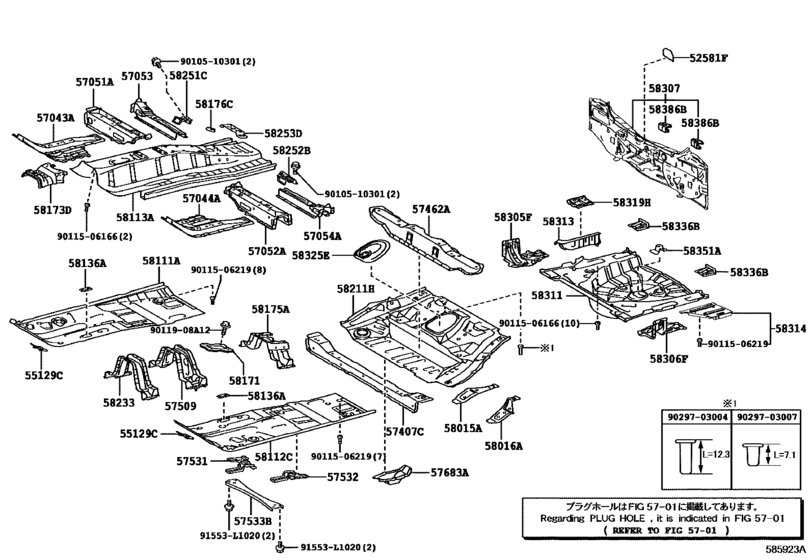

Floor Pan & Lower Back Panel ([04.2016 - ] FLOOR PAN & LOWER BACK PANEL (1604- )ZWE186) 49

#	OEM	Part name
52581	52581-12140	Protector, Rear Bumper
55129	55129-12040	Cover, Dash Panel Hole
55129	55139-12050	Cover, Dash Panel Hole
57043	57043-12020	Reinforcement Sub-Assy, Front Side Member, Rear Rh
57044	57044-12020	Reinforcement Sub-Assy, Front Side Member, Rear Lh
57051	57051-12060	Member Sub-Assy, Front Floor Cross, Rh
57052	57052-12010	Member Sub-Assy, Front Floor Cross, Lh
57053	57053-12010	Reinforcement Sub-Assy, Front Floor Cross Member, Rh
57054	57054-12010	Reinforcement Sub-Assy, Front Floor Cross Member, Lh
57407	57407-02160	Member Sub-Assy, Center Floor Cross, No.1
57462	57405-02010	Member, Center Floor Cross, No.2
57509	58161-12231	Reinforcement Sub-Assy, Front Floor, Center
57531	57531-12010	Bracket, Front Floor Center Brace, Rh
57532	57532-12010	Bracket, Front Floor Center Brace, Lh
57533	57533-12010	Brace, Front Floor, Center
57683	57683-02120	Bracket, Fuel Tank Mounting, No.1
58015	58015-02170	Reinforce Sub-Assy, Belt Anchor, No.3 Rh
58016	58016-02150	Reinforce Sub-Assy, Belt Anchor, No.3 Lh
58111	58111-76901	Pan, Front Floor, Rh
58112	58112-12902	Pan, Front Floor, Lh
58113	58113-76901	Panel, Front Floor, Center
58136	58136-12040	Cover, Front Floor Service Hole
58171	58171-12120	Reinforcement, Parking Brake Base
58173	58173-12020	Bracket, Computer Mounting, No.3
58175	57805-12151	Reinforcement Sub-Assy, Belt Anchor, No.1
58176	58176-12020	Reinforcement, Parking Brake Base, No.1
58211	58211-02911	Pan, Center Floor
58233	58203-12070	Bracket Sub-Assy, Exhaust Pipe Mounting
58251	58251-12040	Brace, Floor Panel, Front Rh
58252	58252-12040	Brace, Floor Panel, Front Lh
58253	58253-12060	Bracket, Parking Cable Clamp
58305	58305-12040	Extension Sub-Assy, Rear Floor Side Panel, Rh
58306	58306-12030	Extension Sub-Assy, Rear Floor Side Panel, Lh
58307	58307-12B41	Panel Sub-Assy, Body Lower Back
58311	58311-76010	Pan, Rear Floor
58313	58313-02140	Panel, Rear Floor Side, Rh
58314	58314-12340	Panel, Rear Floor Side, Lh
58319	58319-02030	Plate, Sub Floor
58325	58325-02160	Cover, Rear Floor Service Hole
58336	58336-12090	Reinforcement, Rear Floor Pan
58351	58351-12060	Bracket, Spare Wheel Carrier
58386	58386-12030	Bracket, Rear Bumper Cover, No.2
91553	91553-L1020	New Genuine Part
9011908	90119-08A12	New Genuine Part
9010510301	90105-10301	BOLT WASHER BASED
9011506166	90115-06166	Bolt, Weld(For Front Floor Pan)
9011506219	90115-06219	Bolt, Weld(For Front Floor Pan, Lh)
9029703004	90297-03004	New Genuine Part
9029703007	90297-03007	Retainer, Rear Heater Mounting

OEM	Part name	Category
52581-12140	Protector, Rear Bumper	Floor Pan & Lower Back Panel ([04.2016 - ] FLOOR PAN & LOWER BACK PANEL (1604- )ZWE186)
55129-12040	Cover, Dash Panel Hole	Floor Pan & Lower Back Panel ([04.2016 - ] FLOOR PAN & LOWER BACK PANEL (1604- )ZWE186)
55139-12050	Cover, Dash Panel Hole	Floor Pan & Lower Back Panel ([04.2016 - ] FLOOR PAN & LOWER BACK PANEL (1604- )ZWE186)
57043-12020	Reinforcement Sub-Assy, Front Side Member, Rear Rh	Floor Pan & Lower Back Panel ([04.2016 - ] FLOOR PAN & LOWER BACK PANEL (1604- )ZWE186)
57044-12020	Reinforcement Sub-Assy, Front Side Member, Rear Lh	Floor Pan & Lower Back Panel ([04.2016 - ] FLOOR PAN & LOWER BACK PANEL (1604- )ZWE186)
57051-12060	Member Sub-Assy, Front Floor Cross, Rh	Floor Pan & Lower Back Panel ([04.2016 - ] FLOOR PAN & LOWER BACK PANEL (1604- )ZWE186)
57052-12010	Member Sub-Assy, Front Floor Cross, Lh	Floor Pan & Lower Back Panel ([04.2016 - ] FLOOR PAN & LOWER BACK PANEL (1604- )ZWE186)
57053-12010	Reinforcement Sub-Assy, Front Floor Cross Member, Rh	Floor Pan & Lower Back Panel ([04.2016 - ] FLOOR PAN & LOWER BACK PANEL (1604- )ZWE186)
57054-12010	Reinforcement Sub-Assy, Front Floor Cross Member, Lh	Floor Pan & Lower Back Panel ([04.2016 - ] FLOOR PAN & LOWER BACK PANEL (1604- )ZWE186)
57405-02010	Member, Center Floor Cross, No.2	Floor Pan & Lower Back Panel ([04.2016 - ] FLOOR PAN & LOWER BACK PANEL (1604- )ZWE186)
57407-02160	Member Sub-Assy, Center Floor Cross, No.1	Floor Pan & Lower Back Panel ([04.2016 - ] FLOOR PAN & LOWER BACK PANEL (1604- )ZWE186)
57531-12010	Bracket, Front Floor Center Brace, Rh	Floor Pan & Lower Back Panel ([04.2016 - ] FLOOR PAN & LOWER BACK PANEL (1604- )ZWE186)
57532-12010	Bracket, Front Floor Center Brace, Lh	Floor Pan & Lower Back Panel ([04.2016 - ] FLOOR PAN & LOWER BACK PANEL (1604- )ZWE186)
57533-12010	Brace, Front Floor, Center	Floor Pan & Lower Back Panel ([04.2016 - ] FLOOR PAN & LOWER BACK PANEL (1604- )ZWE186)
57683-02120	Bracket, Fuel Tank Mounting, No.1	Floor Pan & Lower Back Panel ([04.2016 - ] FLOOR PAN & LOWER BACK PANEL (1604- )ZWE186)
57805-12151	Reinforcement Sub-Assy, Belt Anchor, No.1	Floor Pan & Lower Back Panel ([04.2016 - ] FLOOR PAN & LOWER BACK PANEL (1604- )ZWE186)
58015-02170	Reinforce Sub-Assy, Belt Anchor, No.3 Rh	Floor Pan & Lower Back Panel ([04.2016 - ] FLOOR PAN & LOWER BACK PANEL (1604- )ZWE186)
58016-02150	Reinforce Sub-Assy, Belt Anchor, No.3 Lh	Floor Pan & Lower Back Panel ([04.2016 - ] FLOOR PAN & LOWER BACK PANEL (1604- )ZWE186)
58111-76901	Pan, Front Floor, Rh	Floor Pan & Lower Back Panel ([04.2016 - ] FLOOR PAN & LOWER BACK PANEL (1604- )ZWE186)
58112-12902	Pan, Front Floor, Lh	Floor Pan & Lower Back Panel ([04.2016 - ] FLOOR PAN & LOWER BACK PANEL (1604- )ZWE186)
58113-76901	Panel, Front Floor, Center	Floor Pan & Lower Back Panel ([04.2016 - ] FLOOR PAN & LOWER BACK PANEL (1604- )ZWE186)
58136-12040	Cover, Front Floor Service Hole	Floor Pan & Lower Back Panel ([04.2016 - ] FLOOR PAN & LOWER BACK PANEL (1604- )ZWE186)
58161-12231	Reinforcement Sub-Assy, Front Floor, Center	Floor Pan & Lower Back Panel ([04.2016 - ] FLOOR PAN & LOWER BACK PANEL (1604- )ZWE186)
58171-12120	Reinforcement, Parking Brake Base	Floor Pan & Lower Back Panel ([04.2016 - ] FLOOR PAN & LOWER BACK PANEL (1604- )ZWE186)
58173-12020	Bracket, Computer Mounting, No.3	Floor Pan & Lower Back Panel ([04.2016 - ] FLOOR PAN & LOWER BACK PANEL (1604- )ZWE186)
58176-12020	Reinforcement, Parking Brake Base, No.1	Floor Pan & Lower Back Panel ([04.2016 - ] FLOOR PAN & LOWER BACK PANEL (1604- )ZWE186)
58203-12070	Bracket Sub-Assy, Exhaust Pipe Mounting	Floor Pan & Lower Back Panel ([04.2016 - ] FLOOR PAN & LOWER BACK PANEL (1604- )ZWE186)
58211-02911	Pan, Center Floor	Floor Pan & Lower Back Panel ([04.2016 - ] FLOOR PAN & LOWER BACK PANEL (1604- )ZWE186)
58251-12040	Brace, Floor Panel, Front Rh	Floor Pan & Lower Back Panel ([04.2016 - ] FLOOR PAN & LOWER BACK PANEL (1604- )ZWE186)
58252-12040	Brace, Floor Panel, Front Lh	Floor Pan & Lower Back Panel ([04.2016 - ] FLOOR PAN & LOWER BACK PANEL (1604- )ZWE186)
58253-12060	Bracket, Parking Cable Clamp	Floor Pan & Lower Back Panel ([04.2016 - ] FLOOR PAN & LOWER BACK PANEL (1604- )ZWE186)
58305-12040	Extension Sub-Assy, Rear Floor Side Panel, Rh	Floor Pan & Lower Back Panel ([04.2016 - ] FLOOR PAN & LOWER BACK PANEL (1604- )ZWE186)
58306-12030	Extension Sub-Assy, Rear Floor Side Panel, Lh	Floor Pan & Lower Back Panel ([04.2016 - ] FLOOR PAN & LOWER BACK PANEL (1604- )ZWE186)
58307-12B41	Panel Sub-Assy, Body Lower Back	Floor Pan & Lower Back Panel ([04.2016 - ] FLOOR PAN & LOWER BACK PANEL (1604- )ZWE186)
58311-76010	Pan, Rear Floor	Floor Pan & Lower Back Panel ([04.2016 - ] FLOOR PAN & LOWER BACK PANEL (1604- )ZWE186)
58313-02140	Panel, Rear Floor Side, Rh	Floor Pan & Lower Back Panel ([04.2016 - ] FLOOR PAN & LOWER BACK PANEL (1604- )ZWE186)
58314-12340	Panel, Rear Floor Side, Lh	Floor Pan & Lower Back Panel ([04.2016 - ] FLOOR PAN & LOWER BACK PANEL (1604- )ZWE186)
58319-02030	Plate, Sub Floor	Floor Pan & Lower Back Panel ([04.2016 - ] FLOOR PAN & LOWER BACK PANEL (1604- )ZWE186)
58325-02160	Cover, Rear Floor Service Hole	Floor Pan & Lower Back Panel ([04.2016 - ] FLOOR PAN & LOWER BACK PANEL (1604- )ZWE186)
58336-12090	Reinforcement, Rear Floor Pan	Floor Pan & Lower Back Panel ([04.2016 - ] FLOOR PAN & LOWER BACK PANEL (1604- )ZWE186)
58351-12060	Bracket, Spare Wheel Carrier	Floor Pan & Lower Back Panel ([04.2016 - ] FLOOR PAN & LOWER BACK PANEL (1604- )ZWE186)
58386-12030	Bracket, Rear Bumper Cover, No.2	Floor Pan & Lower Back Panel ([04.2016 - ] FLOOR PAN & LOWER BACK PANEL (1604- )ZWE186)
90105-10301	BOLT WASHER BASED	Floor Pan & Lower Back Panel ([04.2016 - ] FLOOR PAN & LOWER BACK PANEL (1604- )ZWE186)
90115-06166	Bolt, Weld(For Front Floor Pan)	Floor Pan & Lower Back Panel ([04.2016 - ] FLOOR PAN & LOWER BACK PANEL (1604- )ZWE186)
90115-06219	Bolt, Weld(For Front Floor Pan, Lh)	Floor Pan & Lower Back Panel ([04.2016 - ] FLOOR PAN & LOWER BACK PANEL (1604- )ZWE186)
90119-08A12	New Genuine Part	Floor Pan & Lower Back Panel ([04.2016 - ] FLOOR PAN & LOWER BACK PANEL (1604- )ZWE186)
90297-03004	New Genuine Part	Floor Pan & Lower Back Panel ([04.2016 - ] FLOOR PAN & LOWER BACK PANEL (1604- )ZWE186)
90297-03007	Retainer, Rear Heater Mounting	Floor Pan & Lower Back Panel ([04.2016 - ] FLOOR PAN & LOWER BACK PANEL (1604- )ZWE186)
91553-L1020	New Genuine Part	Floor Pan & Lower Back Panel ([04.2016 - ] FLOOR PAN & LOWER BACK PANEL (1604- )ZWE186)
