ZWE186

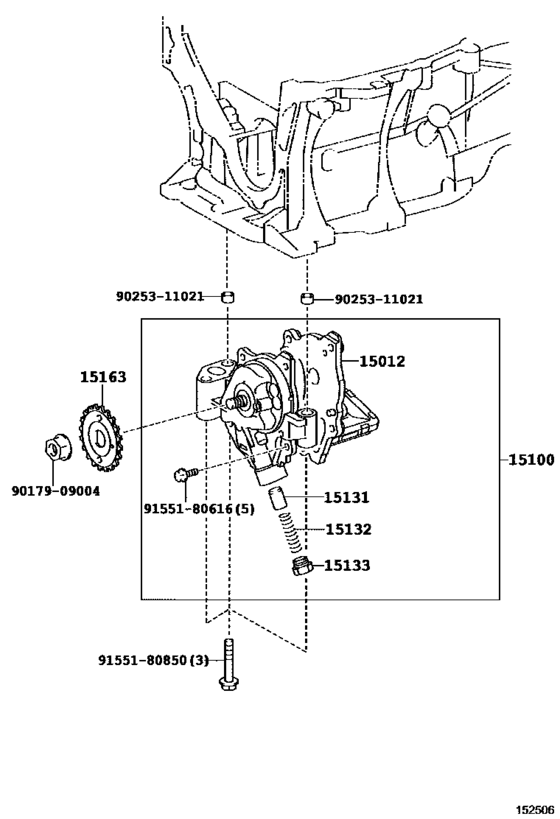

Engine Oil Pump ([04.2016 - ] (1604- )2ZRFXE) 10
| # | OEM | Part name |
|---|---|---|
| 15012 | 15012-37010 | Cover Sub-Assy, Oil Pump |
| 15100 | 15100-37040 | Pump Assy, Oil |
| 15131 | 15131-0A040 | Valve, Oil Pump Relief |
| 15132 | 15132-46060 | Spring, Oil Pump Relief Valve |
| 15133 | 15133-28020 | Plug, Oil Pump Relief Valve |
| 15163 | 15163-28010 | Gear, Oil Pump Drive Shaft |
| 9017909004 | 90179-09004 | NUT |
| 9025311021 | 90253-11021 | Pin, Ring |
| 9155180616 | 91551-80616 | BOLT FLANGE |
| 9155180850 | 91551-80850 | Bolt, Compressor, No.1 |
| OEM | Part name | Category |
|---|---|---|
| 15012-37010 | Cover Sub-Assy, Oil Pump | Engine Oil Pump ([04.2016 - ] (1604- )2ZRFXE) |
| 15100-37040 | Pump Assy, Oil | Engine Oil Pump ([04.2016 - ] (1604- )2ZRFXE) |
| 15131-0A040 | Valve, Oil Pump Relief | Engine Oil Pump ([04.2016 - ] (1604- )2ZRFXE) |
| 15132-46060 | Spring, Oil Pump Relief Valve | Engine Oil Pump ([04.2016 - ] (1604- )2ZRFXE) |
| 15133-28020 | Plug, Oil Pump Relief Valve | Engine Oil Pump ([04.2016 - ] (1604- )2ZRFXE) |
| 15163-28010 | Gear, Oil Pump Drive Shaft | Engine Oil Pump ([04.2016 - ] (1604- )2ZRFXE) |
| 90179-09004 | NUT | Engine Oil Pump ([04.2016 - ] (1604- )2ZRFXE) |
| 90253-11021 | Pin, Ring | Engine Oil Pump ([04.2016 - ] (1604- )2ZRFXE) |
| 91551-80616 | BOLT FLANGE | Engine Oil Pump ([04.2016 - ] (1604- )2ZRFXE) |
| 91551-80850 | Bolt, Compressor, No.1 | Engine Oil Pump ([04.2016 - ] (1604- )2ZRFXE) |
