Search › Model › ZWE186

ZWE186

Toyota AURIS-COROLLA · 2012 · 2,837 parts · 249 categories

2,837 items

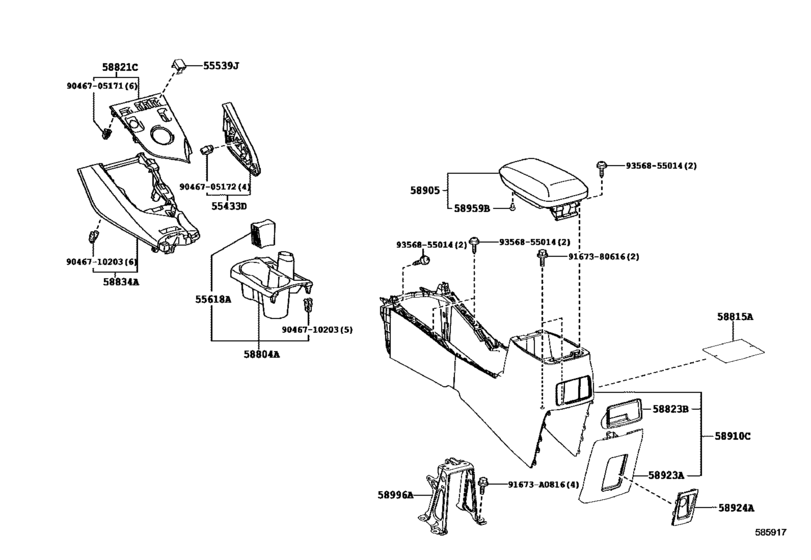

Console Box & Bracket ([04.2016 - ] (1604- )ZWE186) 25

#	OEM	Part name
55433	55433-02480-C1	Panel, Instrument Panel Finish, Lower No.2
55433	55433-12380-C0	Panel, Instrument Panel Finish, Lower No.2
55539	55539-52060-C0	Cover, Spare Switch Hole
55539	55539-52060-C4	Cover, Spare Switch Hole
55618	55618-12090-C0	Holder, Console Box Cup
58804	58804-12210-C1	Panel Sub-Assy, Console, Upper
58815	58815-12121	Carpet, Console Box
58821	58821-12320-C0	Panel, Console, Upper
58823	58823-12030-C0	Box, Console Compartment
58834	58834-12070-C0	Cover, Console, Lower
58905	58905-12850-C4	Door Sub-Assy, Console Compartment
58905	58905-12750-C2	Door Sub-Assy, Console Compartment
58905	58905-12A10-C0	Door Sub-Assy, Console Compartment
58910	58910-12A60-C0	Box Assy, Console, Rear
58923	58923-12200-C0	Panel, Console Rear End
58924	58924-12020-C0	Panel, Console Rear End, No.2
58924	58924-12010-C0	Panel, Console Rear End, No.2
58959	90541-03078	Cushion(For Cup Holder)
58996	58996-12230	Bracket, Console Box Mounting, No.2
91673	91673-A0816	BOLT FLANGE
9046705171	90467-05171	Clip, Instrument Panel
9046705172	90467-05172	Clip, Instrument Panel, No.1
9046710203	90467-10203	Direct
9167380616	91673-80616	Bolt, W/washer
9356855014	93568-55014	Screw

OEM	Part name	Category
55433-02480-C1	Panel, Instrument Panel Finish, Lower No.2	Console Box & Bracket ([04.2016 - ] (1604- )ZWE186)
55433-12380-C0	Panel, Instrument Panel Finish, Lower No.2	Console Box & Bracket ([04.2016 - ] (1604- )ZWE186)
55539-52060-C0	Cover, Spare Switch Hole	Console Box & Bracket ([04.2016 - ] (1604- )ZWE186)
55539-52060-C4	Cover, Spare Switch Hole	Console Box & Bracket ([04.2016 - ] (1604- )ZWE186)
55618-12090-C0	Holder, Console Box Cup	Console Box & Bracket ([04.2016 - ] (1604- )ZWE186)
58804-12210-C1	Panel Sub-Assy, Console, Upper	Console Box & Bracket ([04.2016 - ] (1604- )ZWE186)
58815-12121	Carpet, Console Box	Console Box & Bracket ([04.2016 - ] (1604- )ZWE186)
58821-12320-C0	Panel, Console, Upper	Console Box & Bracket ([04.2016 - ] (1604- )ZWE186)
58823-12030-C0	Box, Console Compartment	Console Box & Bracket ([04.2016 - ] (1604- )ZWE186)
58834-12070-C0	Cover, Console, Lower	Console Box & Bracket ([04.2016 - ] (1604- )ZWE186)
58905-12750-C2	Door Sub-Assy, Console Compartment	Console Box & Bracket ([04.2016 - ] (1604- )ZWE186)
58905-12850-C4	Door Sub-Assy, Console Compartment	Console Box & Bracket ([04.2016 - ] (1604- )ZWE186)
58905-12A10-C0	Door Sub-Assy, Console Compartment	Console Box & Bracket ([04.2016 - ] (1604- )ZWE186)
58910-12A60-C0	Box Assy, Console, Rear	Console Box & Bracket ([04.2016 - ] (1604- )ZWE186)
58923-12200-C0	Panel, Console Rear End	Console Box & Bracket ([04.2016 - ] (1604- )ZWE186)
58924-12010-C0	Panel, Console Rear End, No.2	Console Box & Bracket ([04.2016 - ] (1604- )ZWE186)
58924-12020-C0	Panel, Console Rear End, No.2	Console Box & Bracket ([04.2016 - ] (1604- )ZWE186)
58996-12230	Bracket, Console Box Mounting, No.2	Console Box & Bracket ([04.2016 - ] (1604- )ZWE186)
90467-05171	Clip, Instrument Panel	Console Box & Bracket ([04.2016 - ] (1604- )ZWE186)
90467-05172	Clip, Instrument Panel, No.1	Console Box & Bracket ([04.2016 - ] (1604- )ZWE186)
90467-10203	Direct	Console Box & Bracket ([04.2016 - ] (1604- )ZWE186)
90541-03078	Cushion(For Cup Holder)	Console Box & Bracket ([04.2016 - ] (1604- )ZWE186)
91673-80616	Bolt, W/washer	Console Box & Bracket ([04.2016 - ] (1604- )ZWE186)
91673-A0816	BOLT FLANGE	Console Box & Bracket ([04.2016 - ] (1604- )ZWE186)
93568-55014	Screw	Console Box & Bracket ([04.2016 - ] (1604- )ZWE186)
