ZWE182

Toyota COROLLA · 2015 · 2,819 parts · 171 categories

← Back to categories

2,819 items

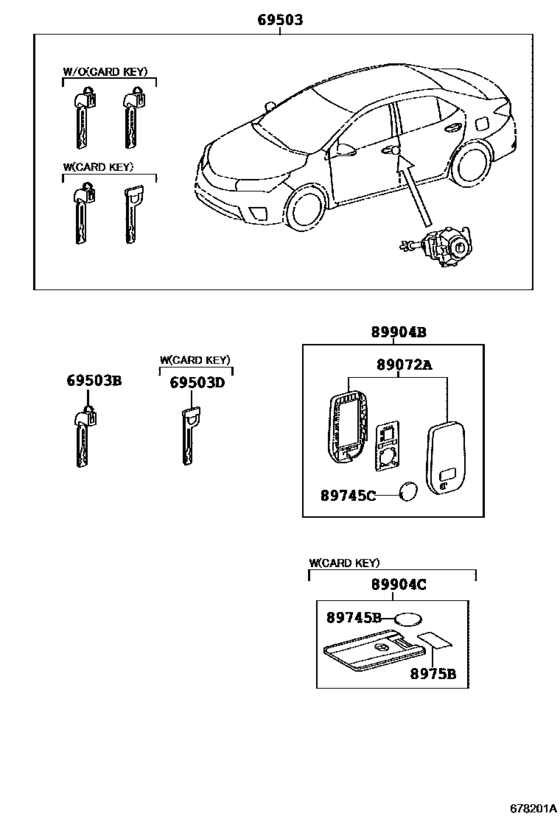

Lock Cylinder Set ([06.2014 - ] (1406- )ZWE182 ; (1406- )NRE181,ZRE18#..GL XI,PREM) 9

#	OEM	Part name
69503	69005-02F90	Cylinder Set, Lock
69503	69515-33110	Key, Cut
69503	69515-12270	Key, Cut(Card Key)
89072	89072-02180	Housing Set, Door Control Transmitter
89745	89745-50030	Battery, Transmitter(Card Key)
89745	89745-45010	Battery, Transmitter
89745	89745-50020	Battery, Transmitter
89904	89904-02190	Transmitter Sub-Assy, Electrical Key
89904	89904-12310	Transmitter Sub-Assy, Electrical Key(Card Key)

OEM	Part name	Category
69005-02F90	Cylinder Set, Lock	Lock Cylinder Set ([06.2014 - ] (1406- )ZWE182 ; (1406- )NRE181,ZRE18#..GL XI,PREM)
69515-12270	Key, Cut(Card Key)	Lock Cylinder Set ([06.2014 - ] (1406- )ZWE182 ; (1406- )NRE181,ZRE18#..GL XI,PREM)
69515-33110	Key, Cut	Lock Cylinder Set ([06.2014 - ] (1406- )ZWE182 ; (1406- )NRE181,ZRE18#..GL XI,PREM)
89072-02180	Housing Set, Door Control Transmitter	Lock Cylinder Set ([06.2014 - ] (1406- )ZWE182 ; (1406- )NRE181,ZRE18#..GL XI,PREM)
89745-45010	Battery, Transmitter	Lock Cylinder Set ([06.2014 - ] (1406- )ZWE182 ; (1406- )NRE181,ZRE18#..GL XI,PREM)
89745-50020	Battery, Transmitter	Lock Cylinder Set ([06.2014 - ] (1406- )ZWE182 ; (1406- )NRE181,ZRE18#..GL XI,PREM)
89745-50030	Battery, Transmitter(Card Key)	Lock Cylinder Set ([06.2014 - ] (1406- )ZWE182 ; (1406- )NRE181,ZRE18#..GL XI,PREM)
89904-02190	Transmitter Sub-Assy, Electrical Key	Lock Cylinder Set ([06.2014 - ] (1406- )ZWE182 ; (1406- )NRE181,ZRE18#..GL XI,PREM)
89904-12310	Transmitter Sub-Assy, Electrical Key(Card Key)	Lock Cylinder Set ([06.2014 - ] (1406- )ZWE182 ; (1406- )NRE181,ZRE18#..GL XI,PREM)
