Search › Model › ZWE182
ZWE182

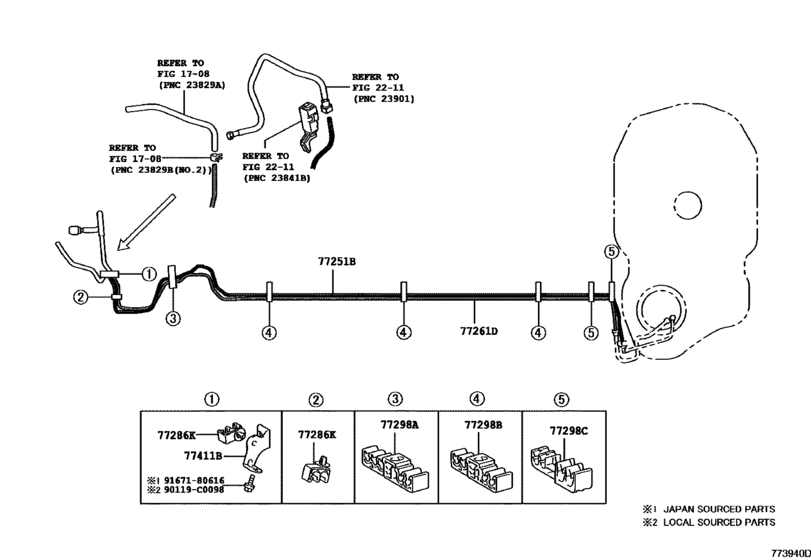

Fuel Tank & Tube ([12.2015 - ] FUEL TUBE (1512- )ZWE182) 9
| # | OEM | Part name |
|---|---|---|
| 77251 | 77251-0Q010 | Tube, Fuel Main |
| 77261 | 77261-47070 | Tube, Fuel Tank To Canister |
| 77286 | 77286-12120 | Clamp, Fuel Tube W/grommet, No.2 |
| 77298 | 77298-68010 | Clamp, Fuel Tube, No.1 |
| 77298 | 77298-52070 | Clamp, Fuel Tube, No.3 |
| 77298 | 77298-12120 | Clamp, Fuel Tube, No.4 |
| 77411 | 77411-47010 | Support, Fuel Tube Grommet, No.1 |
| 90119 | 90119-C0098 | New Genuine Part |
| 9167180616 | 91671-80616 | BOLT FLANGE |
| OEM | Part name | Category |
|---|---|---|
| 77251-0Q010 | Tube, Fuel Main | Fuel Tank & Tube ([12.2015 - ] FUEL TUBE (1512- )ZWE182) |
| 77261-47070 | Tube, Fuel Tank To Canister | Fuel Tank & Tube ([12.2015 - ] FUEL TUBE (1512- )ZWE182) |
| 77286-12120 | Clamp, Fuel Tube W/grommet, No.2 | Fuel Tank & Tube ([12.2015 - ] FUEL TUBE (1512- )ZWE182) |
| 77298-12120 | Clamp, Fuel Tube, No.4 | Fuel Tank & Tube ([12.2015 - ] FUEL TUBE (1512- )ZWE182) |
| 77298-52070 | Clamp, Fuel Tube, No.3 | Fuel Tank & Tube ([12.2015 - ] FUEL TUBE (1512- )ZWE182) |
| 77298-68010 | Clamp, Fuel Tube, No.1 | Fuel Tank & Tube ([12.2015 - ] FUEL TUBE (1512- )ZWE182) |
| 77411-47010 | Support, Fuel Tube Grommet, No.1 | Fuel Tank & Tube ([12.2015 - ] FUEL TUBE (1512- )ZWE182) |
| 90119-C0098 | New Genuine Part | Fuel Tank & Tube ([12.2015 - ] FUEL TUBE (1512- )ZWE182) |
| 91671-80616 | BOLT FLANGE | Fuel Tank & Tube ([12.2015 - ] FUEL TUBE (1512- )ZWE182) |
