Search › Model › ZWE182

ZWE182

Toyota COROLLA · 2015 · 2,819 parts · 171 categories

2,819 items

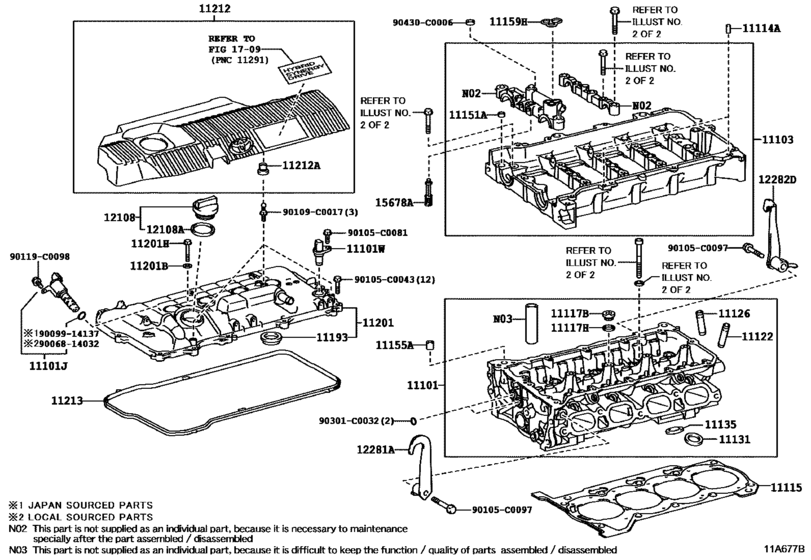

Cylinder Head ([12.2015 - ] (1512- )8ZRFXE) 43

#	OEM	Part name
11101	11101-09530	Head Sub-Assy, Cylinder
11101	11101-39725	Head Sub-Assy, Cylinder
11101	15330-0T030	Valve Assy, Camshaft Timing Oil Control
11101	90919-05060	Sensor, Cam Position
11103	11103-0T080	Housing Sub-Assy, Camshaft
11114	90250-C0010	Pin, Straight
11115	11115-0T010	Gasket, Cylinder Head
11117	90341-20002	Plug, W/head Taper Screw, No.1
11117	90430-20004	Gasket(For Cylinder Head Screw Plug)
11122	11122-31050	Bush, Intake Valve Guide
11122	11123-31050	Bush, Intake Valve Guide
11126	11126-31030	Bush, Exhaust Valve Guide
11126	11127-31030	Bush, Exhaust Valve Guide
11131	11131-0T040	Seat, Intake Valve
11131	11132-37040	Seat, Intake Valve
11135	11135-0T040	Seat, Exhaust Valve
11135	11136-37040	Seat, Exhaust Valve
11151	90253-C0004	Pin, Ring(For Camshaft Bearing Cap Setting)
11155	90253-C0002	Pin, Ring
11159	11159-0T030	Gasket, Camshaft Bearing Cap Oil Hole
11193	11193-37020	Gasket, Spark Plug Tube
11201	11201-37040	Cover Sub-Assy, Cylinder Head
11201	90210-C0002	Washer, Seal(For Cylinder Head Cover)
11201	90105-C0222	Bolt(For Cylinder Head Cover)
11212	11212-37170	Cover, Cylinder Head, No.2
11212	90480-07008	Cushion, Cylinder Head Cover
11213	11213-37041	Gasket, Cylinder Head Cover
12108	12180-0T010	Cap Sub-Assy, Oil Filler
12108	90430-35001	Gasket(For Oil Filler Cap)
12281	12281-0T020	Hanger, Engine, No.1
12281	12281-37021	Hanger, Engine, No.1
12282	12282-0T020	Hanger, Engine, No.2
12282	12282-37011	Hanger, Engine, No.2
15678	15678-0T020	Filter, Oil Control Valve
90105	90105-C0043	New Genuine Part
90105	90105-C0081	New Genuine Part
90105	90105-C0097	New Genuine Part
90109	90109-C0017	Joint, Engine Cover
90119	90119-C0098	New Genuine Part
90301	90301-C0032	New Genuine Part
90430	90430-C0006	Gasket, Camshaft Bearing Cap Oil Hole
9006814032	90068-14032	Ring, O(For Cam Timing Oil Control Valve)
9009914137	90099-14137	Ring, O(For Cam Timing Oil Control Valve)

OEM	Part name	Category
11101-09530	Head Sub-Assy, Cylinder	Cylinder Head ([12.2015 - ] (1512- )8ZRFXE)
11101-39725	Head Sub-Assy, Cylinder	Cylinder Head ([12.2015 - ] (1512- )8ZRFXE)
11103-0T080	Housing Sub-Assy, Camshaft	Cylinder Head ([12.2015 - ] (1512- )8ZRFXE)
11115-0T010	Gasket, Cylinder Head	Cylinder Head ([12.2015 - ] (1512- )8ZRFXE)
11122-31050	Bush, Intake Valve Guide	Cylinder Head ([12.2015 - ] (1512- )8ZRFXE)
11123-31050	Bush, Intake Valve Guide	Cylinder Head ([12.2015 - ] (1512- )8ZRFXE)
11126-31030	Bush, Exhaust Valve Guide	Cylinder Head ([12.2015 - ] (1512- )8ZRFXE)
11127-31030	Bush, Exhaust Valve Guide	Cylinder Head ([12.2015 - ] (1512- )8ZRFXE)
11131-0T040	Seat, Intake Valve	Cylinder Head ([12.2015 - ] (1512- )8ZRFXE)
11132-37040	Seat, Intake Valve	Cylinder Head ([12.2015 - ] (1512- )8ZRFXE)
11135-0T040	Seat, Exhaust Valve	Cylinder Head ([12.2015 - ] (1512- )8ZRFXE)
11136-37040	Seat, Exhaust Valve	Cylinder Head ([12.2015 - ] (1512- )8ZRFXE)
11159-0T030	Gasket, Camshaft Bearing Cap Oil Hole	Cylinder Head ([12.2015 - ] (1512- )8ZRFXE)
11193-37020	Gasket, Spark Plug Tube	Cylinder Head ([12.2015 - ] (1512- )8ZRFXE)
11201-37040	Cover Sub-Assy, Cylinder Head	Cylinder Head ([12.2015 - ] (1512- )8ZRFXE)
11212-37170	Cover, Cylinder Head, No.2	Cylinder Head ([12.2015 - ] (1512- )8ZRFXE)
11213-37041	Gasket, Cylinder Head Cover	Cylinder Head ([12.2015 - ] (1512- )8ZRFXE)
12180-0T010	Cap Sub-Assy, Oil Filler	Cylinder Head ([12.2015 - ] (1512- )8ZRFXE)
12281-0T020	Hanger, Engine, No.1	Cylinder Head ([12.2015 - ] (1512- )8ZRFXE)
12281-37021	Hanger, Engine, No.1	Cylinder Head ([12.2015 - ] (1512- )8ZRFXE)
12282-0T020	Hanger, Engine, No.2	Cylinder Head ([12.2015 - ] (1512- )8ZRFXE)
12282-37011	Hanger, Engine, No.2	Cylinder Head ([12.2015 - ] (1512- )8ZRFXE)
15330-0T030	Valve Assy, Camshaft Timing Oil Control	Cylinder Head ([12.2015 - ] (1512- )8ZRFXE)
15678-0T020	Filter, Oil Control Valve	Cylinder Head ([12.2015 - ] (1512- )8ZRFXE)
90068-14032	Ring, O(For Cam Timing Oil Control Valve)	Cylinder Head ([12.2015 - ] (1512- )8ZRFXE)
90099-14137	Ring, O(For Cam Timing Oil Control Valve)	Cylinder Head ([12.2015 - ] (1512- )8ZRFXE)
90105-C0043	New Genuine Part	Cylinder Head ([12.2015 - ] (1512- )8ZRFXE)
90105-C0081	New Genuine Part	Cylinder Head ([12.2015 - ] (1512- )8ZRFXE)
90105-C0097	New Genuine Part	Cylinder Head ([12.2015 - ] (1512- )8ZRFXE)
90105-C0222	Bolt(For Cylinder Head Cover)	Cylinder Head ([12.2015 - ] (1512- )8ZRFXE)
90109-C0017	Joint, Engine Cover	Cylinder Head ([12.2015 - ] (1512- )8ZRFXE)
90119-C0098	New Genuine Part	Cylinder Head ([12.2015 - ] (1512- )8ZRFXE)
90210-C0002	Washer, Seal(For Cylinder Head Cover)	Cylinder Head ([12.2015 - ] (1512- )8ZRFXE)
90250-C0010	Pin, Straight	Cylinder Head ([12.2015 - ] (1512- )8ZRFXE)
90253-C0002	Pin, Ring	Cylinder Head ([12.2015 - ] (1512- )8ZRFXE)
90253-C0004	Pin, Ring(For Camshaft Bearing Cap Setting)	Cylinder Head ([12.2015 - ] (1512- )8ZRFXE)
90301-C0032	New Genuine Part	Cylinder Head ([12.2015 - ] (1512- )8ZRFXE)
90341-20002	Plug, W/head Taper Screw, No.1	Cylinder Head ([12.2015 - ] (1512- )8ZRFXE)
90430-20004	Gasket(For Cylinder Head Screw Plug)	Cylinder Head ([12.2015 - ] (1512- )8ZRFXE)
90430-35001	Gasket(For Oil Filler Cap)	Cylinder Head ([12.2015 - ] (1512- )8ZRFXE)
90430-C0006	Gasket, Camshaft Bearing Cap Oil Hole	Cylinder Head ([12.2015 - ] (1512- )8ZRFXE)
90480-07008	Cushion, Cylinder Head Cover	Cylinder Head ([12.2015 - ] (1512- )8ZRFXE)
90919-05060	Sensor, Cam Position	Cylinder Head ([12.2015 - ] (1512- )8ZRFXE)
