Search › Model › ZWE182

ZWE182

Toyota COROLLA · 2015 · 2,819 parts · 171 categories

2,819 items

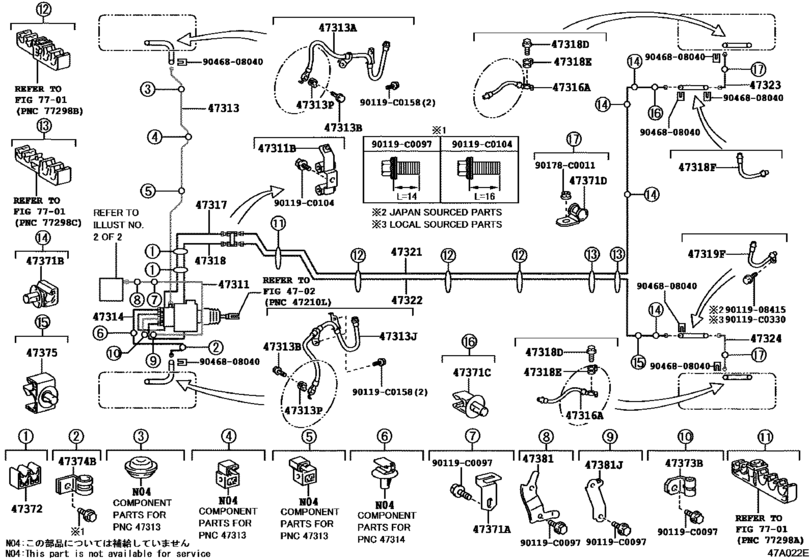

Brake Tube & Clamp ([12.2015 - ] BRAKE TUBE (1512- )ZWE182) 34

#	OEM	Part name
47311	47311-02C20	Tube, Front Brake, No.1
47311	90412-C0001	Way, No.1(For Front Brake Tube)
47313	47313-02C70	Tube, Front Brake, No.3
47313	90947-C2049	Hose, Flexible, No.1(For Front)
47313	90401-C0001	Bolt, Union(For Front Flexible Hose)
47313	90947-C2050	Hose, Flexible, No.2(For Front)
47313	47389-50021	Gasket(For Front Flexible Hose)
47314	47314-02C20	Tube, Front Brake, No.4
47316	90947-C2052	Hose, Flexible(For Rear Brake Tube)
47317	47317-02B60	Tube, Front Brake, No.7
47318	47318-02B80	Tube, Front Brake, No.8
47318	90947-C2051	Hose, Flexible(For Rear Brake Tube)
47319	90947-C2053	Hose, Flexible(For Rear Brake Tube)
47321	47321-02560	Tube, Rear Brake, No.1
47322	47322-02560	Tube, Rear Brake, No.2
47323	47323-02150	Tube, Rear Brake, No.3
47324	47324-02200	Tube, Rear Brake, No.4
47371	47371-47060	Clamp, Brake Tube, No.1 - BRAKE TUBE, NO.7
47371	90949-01D17	Clamp(For Clutch Master Cylinder Tube)
47371	90949-01D29	Clamp(For Clutch Tube)
47371	90461-C0002	Clamp, Tube
47372	90464-00904	Clamp, Height Control Tube No.9
47373	90461-10840	Clamp, Brake Tube, No.4 - BRAKE TUBE, NO.3
47374	90461-10781	Clamp, Brake Tube, No.6
47375	77286-75020	Clamp, Brake Tube, No.12
47381	47381-75010	Bracket, Brake Tube Clamp No.1
47381	47381-75020	Bracket, Brake Tube Clamp, No.2
90119	90119-C0097	New Genuine Part
90119	90119-C0104	New Genuine Part
90119	90119-C0158	New Genuine Part
90119	90119-C0330	New Genuine Part
90178	90178-C0011	New Genuine Part
9011908415	90119-08415	New Genuine Part
9046808040	90468-08040	CLIP

OEM	Part name	Category
47311-02C20	Tube, Front Brake, No.1	Brake Tube & Clamp ([12.2015 - ] BRAKE TUBE (1512- )ZWE182)
47313-02C70	Tube, Front Brake, No.3	Brake Tube & Clamp ([12.2015 - ] BRAKE TUBE (1512- )ZWE182)
47314-02C20	Tube, Front Brake, No.4	Brake Tube & Clamp ([12.2015 - ] BRAKE TUBE (1512- )ZWE182)
47317-02B60	Tube, Front Brake, No.7	Brake Tube & Clamp ([12.2015 - ] BRAKE TUBE (1512- )ZWE182)
47318-02B80	Tube, Front Brake, No.8	Brake Tube & Clamp ([12.2015 - ] BRAKE TUBE (1512- )ZWE182)
47321-02560	Tube, Rear Brake, No.1	Brake Tube & Clamp ([12.2015 - ] BRAKE TUBE (1512- )ZWE182)
47322-02560	Tube, Rear Brake, No.2	Brake Tube & Clamp ([12.2015 - ] BRAKE TUBE (1512- )ZWE182)
47323-02150	Tube, Rear Brake, No.3	Brake Tube & Clamp ([12.2015 - ] BRAKE TUBE (1512- )ZWE182)
47324-02200	Tube, Rear Brake, No.4	Brake Tube & Clamp ([12.2015 - ] BRAKE TUBE (1512- )ZWE182)
47371-47060	Clamp, Brake Tube, No.1 - BRAKE TUBE, NO.7	Brake Tube & Clamp ([12.2015 - ] BRAKE TUBE (1512- )ZWE182)
47381-75010	Bracket, Brake Tube Clamp No.1	Brake Tube & Clamp ([12.2015 - ] BRAKE TUBE (1512- )ZWE182)
47381-75020	Bracket, Brake Tube Clamp, No.2	Brake Tube & Clamp ([12.2015 - ] BRAKE TUBE (1512- )ZWE182)
47389-50021	Gasket(For Front Flexible Hose)	Brake Tube & Clamp ([12.2015 - ] BRAKE TUBE (1512- )ZWE182)
77286-75020	Clamp, Brake Tube, No.12	Brake Tube & Clamp ([12.2015 - ] BRAKE TUBE (1512- )ZWE182)
90119-08415	New Genuine Part	Brake Tube & Clamp ([12.2015 - ] BRAKE TUBE (1512- )ZWE182)
90119-C0097	New Genuine Part	Brake Tube & Clamp ([12.2015 - ] BRAKE TUBE (1512- )ZWE182)
90119-C0104	New Genuine Part	Brake Tube & Clamp ([12.2015 - ] BRAKE TUBE (1512- )ZWE182)
90119-C0158	New Genuine Part	Brake Tube & Clamp ([12.2015 - ] BRAKE TUBE (1512- )ZWE182)
90119-C0330	New Genuine Part	Brake Tube & Clamp ([12.2015 - ] BRAKE TUBE (1512- )ZWE182)
90178-C0011	New Genuine Part	Brake Tube & Clamp ([12.2015 - ] BRAKE TUBE (1512- )ZWE182)
90401-C0001	Bolt, Union(For Front Flexible Hose)	Brake Tube & Clamp ([12.2015 - ] BRAKE TUBE (1512- )ZWE182)
90412-C0001	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([12.2015 - ] BRAKE TUBE (1512- )ZWE182)
90461-10781	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([12.2015 - ] BRAKE TUBE (1512- )ZWE182)
90461-10840	Clamp, Brake Tube, No.4 - BRAKE TUBE, NO.3	Brake Tube & Clamp ([12.2015 - ] BRAKE TUBE (1512- )ZWE182)
90461-C0002	Clamp, Tube	Brake Tube & Clamp ([12.2015 - ] BRAKE TUBE (1512- )ZWE182)
90464-00904	Clamp, Height Control Tube No.9	Brake Tube & Clamp ([12.2015 - ] BRAKE TUBE (1512- )ZWE182)
90468-08040	CLIP	Brake Tube & Clamp ([12.2015 - ] BRAKE TUBE (1512- )ZWE182)
90947-C2049	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([12.2015 - ] BRAKE TUBE (1512- )ZWE182)
90947-C2050	Hose, Flexible, No.2(For Front)	Brake Tube & Clamp ([12.2015 - ] BRAKE TUBE (1512- )ZWE182)
90947-C2051	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([12.2015 - ] BRAKE TUBE (1512- )ZWE182)
90947-C2052	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([12.2015 - ] BRAKE TUBE (1512- )ZWE182)
90947-C2053	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([12.2015 - ] BRAKE TUBE (1512- )ZWE182)
90949-01D17	Clamp(For Clutch Master Cylinder Tube)	Brake Tube & Clamp ([12.2015 - ] BRAKE TUBE (1512- )ZWE182)
90949-01D29	Clamp(For Clutch Tube)	Brake Tube & Clamp ([12.2015 - ] BRAKE TUBE (1512- )ZWE182)
