Search › Model › ZWE150

ZWE150

Toyota AURIS-COROLLA · 2010 · 2,931 parts · 179 categories

2,931 items

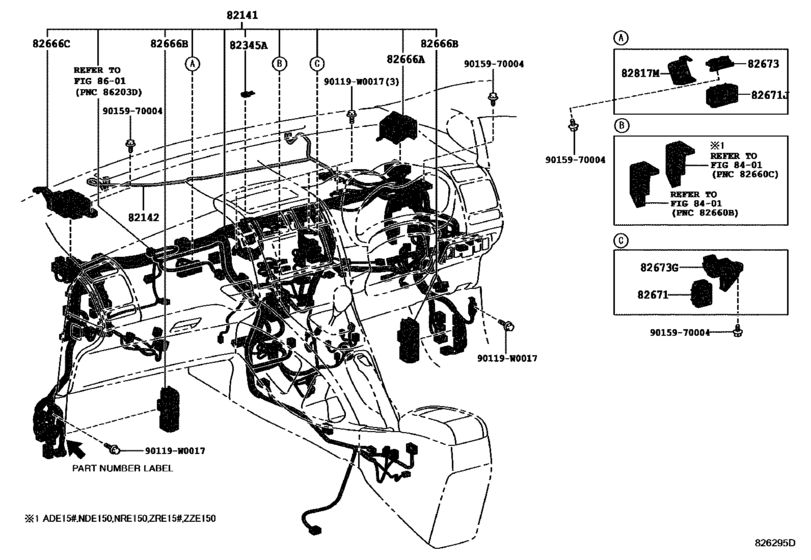

Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )RHD) 21

#	OEM	Part name
82141	82118-0ZZ40	Wire, Instrument Panel
82141	82118-0ZZ50	Wire, Instrument Panel
82141	82118-0ZZ60	Wire, Instrument Panel
82141	82146-0Z130	Wire, Instrument Panel
82141	82146-0Z131	Wire, Instrument Panel
82141	82146-0Z140	Wire, Instrument Panel
82141	82146-0Z141	Wire, Instrument Panel
82141	82146-0Z150	Wire, Instrument Panel
82141	82146-0ZW10	Wire, Instrument Panel
82142	82142-02270	Wire, Instrument Panel, No.2
82666	82666-02200	Holder, Connector No.2
82666	82666-02210	Holder, Connector No.2
82666	82666-12390	Holder, Connector No.4
82671	82671-12280	Block, Junction - JUNCTION, NO.2
82671	82671-12250	Block, Junction, No.2
82673	82673-12160	Bracket, Junction Block
82673	82673-12150	Bracket, Junction Block
82817	82817-12D20	Protector, Wiring Harness, No.5
90119	90119-W0017	New Genuine Part
90119	90119-06390	BOLT WWASHER
9015970004	90159-70004	SCREW WWASHER

OEM	Part name	Category
82118-0ZZ40	Wire, Instrument Panel	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )RHD)
82118-0ZZ50	Wire, Instrument Panel	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )RHD)
82118-0ZZ60	Wire, Instrument Panel	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )RHD)
82142-02270	Wire, Instrument Panel, No.2	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )RHD)
82146-0Z130	Wire, Instrument Panel	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )RHD)
82146-0Z131	Wire, Instrument Panel	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )RHD)
82146-0Z140	Wire, Instrument Panel	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )RHD)
82146-0Z141	Wire, Instrument Panel	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )RHD)
82146-0Z150	Wire, Instrument Panel	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )RHD)
82146-0ZW10	Wire, Instrument Panel	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )RHD)
82666-02200	Holder, Connector No.2	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )RHD)
82666-02210	Holder, Connector No.2	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )RHD)
82666-12390	Holder, Connector No.4	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )RHD)
82671-12250	Block, Junction, No.2	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )RHD)
82671-12280	Block, Junction - JUNCTION, NO.2	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )RHD)
82673-12150	Bracket, Junction Block	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )RHD)
82673-12160	Bracket, Junction Block	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )RHD)
82817-12D20	Protector, Wiring Harness, No.5	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )RHD)
90119-06390	BOLT WWASHER	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )RHD)
90119-W0017	New Genuine Part	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )RHD)
90159-70004	SCREW WWASHER	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )RHD)

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 179
Collected: 2026-08-02
