Search › Model › ZWE150
ZWE150

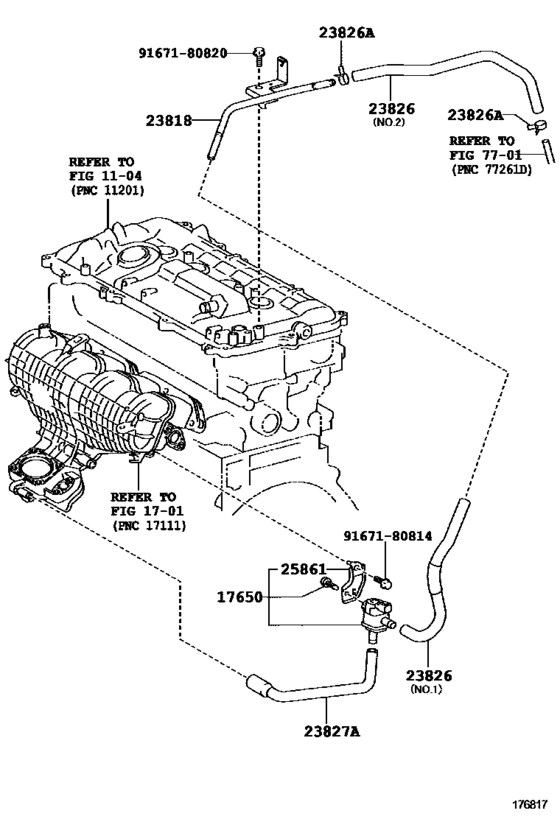

Vacuum Piping ([06.2010 - ] (1006- )2ZRFXE) 10
| # | OEM | Part name |
|---|---|---|
| 17650 | 25860-37040 | Valve Assy, Vacuum Switching |
| 23818 | 23818-37020 | Pipe, Fuel Vapor Feed |
| 23826 | 23826-37080 | Hose, Fuel Vapor Feed, No.1 |
| 23826 | 23826-37140 | Hose, Fuel Vapor Feed, No.1 |
| 23826 | 96132-51100 | Clip (For Hose) |
| 23827 | 23827-37050 | Hose, Fuel Vapor Feed, No.2 |
| 25861 | 25861-37020 | Bracket, Vacuum Switching Valve |
| 9167180814 | 91671-80814 | BOLT FLANGE WWASER |
| 9167180814 | 90119-A0165 | New Genuine Part |
| 9167180820 | 91671-80820 | Bolt (For Transmission Control Cable Bracket) |
| OEM | Part name | Category |
|---|---|---|
| 23818-37020 | Pipe, Fuel Vapor Feed | Vacuum Piping ([06.2010 - ] (1006- )2ZRFXE) |
| 23826-37080 | Hose, Fuel Vapor Feed, No.1 | Vacuum Piping ([06.2010 - ] (1006- )2ZRFXE) |
| 23826-37140 | Hose, Fuel Vapor Feed, No.1 | Vacuum Piping ([06.2010 - ] (1006- )2ZRFXE) |
| 23827-37050 | Hose, Fuel Vapor Feed, No.2 | Vacuum Piping ([06.2010 - ] (1006- )2ZRFXE) |
| 25860-37040 | Valve Assy, Vacuum Switching | Vacuum Piping ([06.2010 - ] (1006- )2ZRFXE) |
| 25861-37020 | Bracket, Vacuum Switching Valve | Vacuum Piping ([06.2010 - ] (1006- )2ZRFXE) |
| 90119-A0165 | New Genuine Part | Vacuum Piping ([06.2010 - ] (1006- )2ZRFXE) |
| 91671-80814 | BOLT FLANGE WWASER | Vacuum Piping ([06.2010 - ] (1006- )2ZRFXE) |
| 91671-80820 | Bolt (For Transmission Control Cable Bracket) | Vacuum Piping ([06.2010 - ] (1006- )2ZRFXE) |
| 96132-51100 | Clip (For Hose) | Vacuum Piping ([06.2010 - ] (1006- )2ZRFXE) |
