Search › Model › ZWE150

ZWE150

Toyota AURIS-COROLLA · 2010 · 2,931 parts · 179 categories

← Back to categories

2,931 items

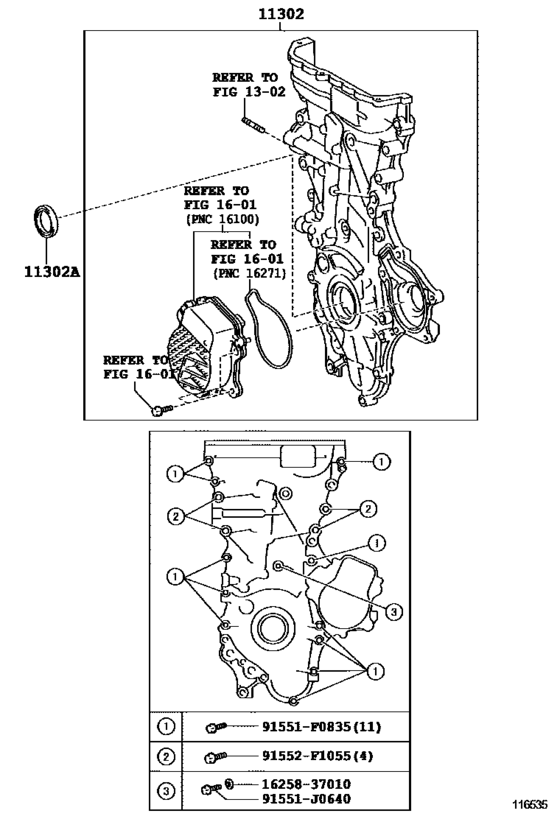

Timing Gear Cover & Rear End Plate ([06.2010 - ] (1006- )2ZRFXE) 9

#	OEM	Part name
11302	11310-37060	Cover Sub-Assy, Timing Chain Or Belt
11302	11310-37062	Cover Sub-Assy, Timing Chain Or Belt
11302	90311-38089	Seal, Oil(For Timing Gear Case Or Timing Chain Case)
11302	90311-38096	Seal, Oil(For Timing Chain Or Belt Cover)
11302	90311-W0012	Seal, Oil(For Timing Chain Or Belt Cover)
91551	91551-F0835	New Genuine Part
91551	91551-J0640	New Genuine Part
91552	91552-F1055	BOLT FLANGE
1625837010	16258-37010	Washer, Seal(For Cylinder Head Cover)

OEM	Part name	Category
11310-37060	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([06.2010 - ] (1006- )2ZRFXE)
11310-37062	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([06.2010 - ] (1006- )2ZRFXE)
16258-37010	Washer, Seal(For Cylinder Head Cover)	Timing Gear Cover & Rear End Plate ([06.2010 - ] (1006- )2ZRFXE)
90311-38089	Seal, Oil(For Timing Gear Case Or Timing Chain Case)	Timing Gear Cover & Rear End Plate ([06.2010 - ] (1006- )2ZRFXE)
90311-38096	Seal, Oil(For Timing Chain Or Belt Cover)	Timing Gear Cover & Rear End Plate ([06.2010 - ] (1006- )2ZRFXE)
90311-W0012	Seal, Oil(For Timing Chain Or Belt Cover)	Timing Gear Cover & Rear End Plate ([06.2010 - ] (1006- )2ZRFXE)
91551-F0835	New Genuine Part	Timing Gear Cover & Rear End Plate ([06.2010 - ] (1006- )2ZRFXE)
91551-J0640	New Genuine Part	Timing Gear Cover & Rear End Plate ([06.2010 - ] (1006- )2ZRFXE)
91552-F1055	BOLT FLANGE	Timing Gear Cover & Rear End Plate ([06.2010 - ] (1006- )2ZRFXE)

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 179
Collected: 2026-08-02
