ZWE150

Toyota AURIS-COROLLA · 2010 · 2,931 parts · 179 categories
ZWE150 ×

← Back to categories

2,931 items

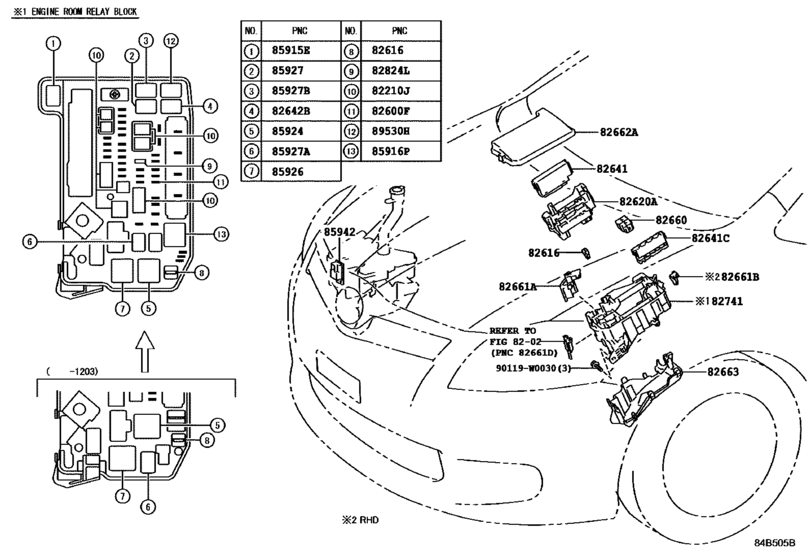

Switch & Relay & Computer ([06.2010 - ] ENGINE ROOM (1006- )ZWE150) 34
#OEMPart name
82210 90982-08297 Fusible Link
82210 90982-08300 Fusible Link
82210 90982-08304 Fusible Link
82210 90982-08308 Fusible Link
82600 90080-82050 Instrument Panel Fuse
82600 90080-82051 Instrument Panel Fuse
82600 90080-82052 Instrument Panel Fuse
82600 90080-82053 Instrument Panel Fuse
82600 90080-82054 Instrument Panel Fuse
82600 90982-A9001 Fuse, Fuse Block
82616 82616-58010 Puller, Fuse
82620 82620-75010 Block Assy, Fusible Link
82641 82641-12280 Relay, Integration No.1
82641 82641-71010 Relay, Integration No.1
82641 82641-12300 Relay, Integration No.1
82642 90987-02027 Relay
82660 82660-75010 Block Assy, Relay
82661 82661-75010 Cover, Relay Block, No.2
82661 82661-02010 Cover, Relay Block Lower, No.4
82662 82662-12680 Cover, Relay Block, Upper, No.1
82662 82662-12681 Cover, Relay Block, Upper, No.1
82663 82663-02040 Cover, Relay Block, Lower
82741 82741-47020 Block, Engine Room Relay
82741 82741-75010 Block, Engine Room Relay
82824 82824-41010 Pin, Short
85915 90080-87019 Relay, Ignition, No.2
85915 90080-87021 Relay, Lamp Cut
85924 90080-87030 Relay, Ignition, No.1
85926 90080-87031 Relay Assy (For Heater Blower Motor)
85927 90080-87012 Relay, Cooling Fan, No.2
85927 90080-87020 Relay, Cooling Fan
85942 85942-12040 Relay, Headlamp Cleaner Control
85942 85942-20031 Relay, Headlamp Cleaner Control
90119 90119-W0030 New Genuine Part
