ZWE150

Toyota AURIS-COROLLA · 2010 · 2,931 parts · 179 categories

← Back to categories

2,931 items

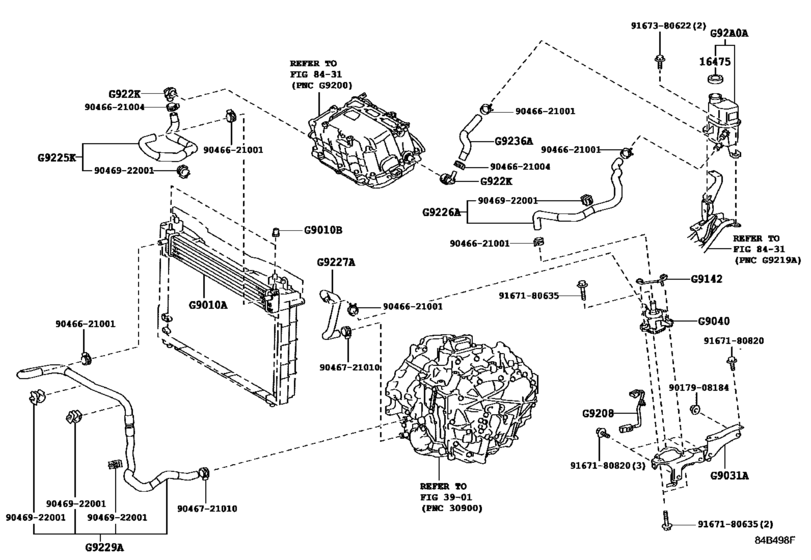

Inverter Cooling ([06.2010 - ] (1006- )ZWE150) 12

#	OEM	Part name
0	16716-37010	Cushion, Fan Shroud - INVERTER RADIATOR
16475	16475-37010	Cap Sub-Assy, Radiator Reserve Tank
16475	16475-28140	Cap Sub-Assy, Radiator Reserve Tank
16475	16475-51010	Cap Sub-Assy, Radiator Reserve Tank
9017908184	90179-08184	NUT
9046621001	90466-21001	Clamp Or Clip, Hose(For Water By-Pass Hose)
9046621004	90466-21004	Clamp Or Clip, Hose(For Water By-Pass Hose)
9046721010	90467-21010	Clip(For Ventilation Hose No.2)
9046922001	90469-22001	Clamp, Piping
9167180635	91671-80635	New Genuine Part
9167180820	91671-80820	Bolt (For Transmission Control Cable Bracket)
9167380622	91673-80622	BOLT FLANGE

OEM	Part name	Category
16475-28140	Cap Sub-Assy, Radiator Reserve Tank	Inverter Cooling ([06.2010 - ] (1006- )ZWE150)
16475-37010	Cap Sub-Assy, Radiator Reserve Tank	Inverter Cooling ([06.2010 - ] (1006- )ZWE150)
16475-51010	Cap Sub-Assy, Radiator Reserve Tank	Inverter Cooling ([06.2010 - ] (1006- )ZWE150)
16716-37010	Cushion, Fan Shroud - INVERTER RADIATOR	Inverter Cooling ([06.2010 - ] (1006- )ZWE150)
90179-08184	NUT	Inverter Cooling ([06.2010 - ] (1006- )ZWE150)
90466-21001	Clamp Or Clip, Hose(For Water By-Pass Hose)	Inverter Cooling ([06.2010 - ] (1006- )ZWE150)
90466-21004	Clamp Or Clip, Hose(For Water By-Pass Hose)	Inverter Cooling ([06.2010 - ] (1006- )ZWE150)
90467-21010	Clip(For Ventilation Hose No.2)	Inverter Cooling ([06.2010 - ] (1006- )ZWE150)
90469-22001	Clamp, Piping	Inverter Cooling ([06.2010 - ] (1006- )ZWE150)
91671-80635	New Genuine Part	Inverter Cooling ([06.2010 - ] (1006- )ZWE150)
91671-80820	Bolt (For Transmission Control Cable Bracket)	Inverter Cooling ([06.2010 - ] (1006- )ZWE150)
91673-80622	BOLT FLANGE	Inverter Cooling ([06.2010 - ] (1006- )ZWE150)
