ZWE150

Toyota AURIS-COROLLA · 2010 · 2,931 parts · 179 categories
ZWE150 ×

← Back to categories

2,931 items

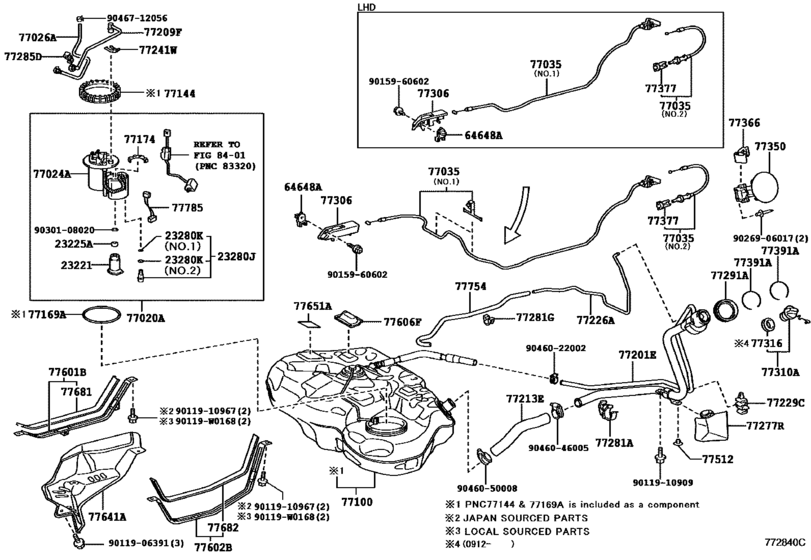

Fuel Tank & Tube ([06.2010 - ] FUEL TANK (1006- )ZWE150) 64
#OEMPart name
23221 23220-21210 Pump Assy, Fuel W/filter
23221 23220-21211 Pump Assy, Fuel W/filter
23221 77785-12010 Harness, Fuel Pump
23221 77785-52101 Harness, Fuel Pump
23221 77785-52110 Harness, Fuel Pump
23225 23225-21020 Spacer, Fuel Pump
23280 23280-21010 Regulator Assy, Fuel Pressure
23280 90301-04013 Ring, O(For Fuel Pump)
23280 90301-15024 Ring, O(For Fuel Pump)
64648 64648-12020 Grommet, Luggage Door Lock Opener
77020 77020-47070 Tube Assy, Fuel Suction W/pump & Gage
77024 77024-75010 Plate Sub-Assy, Fuel Suction
77024 77024-47090 Plate Sub-Assy, Fuel Suction
77026 77026-47020 Tube Sub-Assy, Fuel Evaporation, No.1
77035 77035-12430 Cable Sub-Assy, Fuel Lid Lock Control
77035 77035-12490 Cable Sub-Assy, Fuel Lid Lock Control
77100 77001-47120 Tank Assy, Fuel
77144 77144-52040 Retainer, Fuel Pump Gauge
77169 77169-52030 Gasket, Fuel Suction Tube Set
77174 77174-75010 Support, Fuel Suction, No.1
77201 77201-12810 Pipe Sub-Assy, Fuel Tank Filler
77209 77209-47060 Tube Sub-Assy, Fuel Tank Main
77213 77213-12340 Hose, Fuel Tank To Filler Pipe
77226 77226-12090 Tube, Fuel Tank Breather, No.6
77229 77229-12070 Clamp, Breather Tube
77241 77241-33011 Clip, Tube Joint
77241 77241-60320 Clip, Tube Joint
77277 77277-12180 Protector, Fuel Tank Filler Pipe
77281 77281-47060 Clamp, Fuel Filler Pipe
77281 77281-47050 Clamp, Fuel Hose
77285 77285-47040 Clamp, Fuel Tube, No.1
77291 77291-02080 Shield, Fuel Tank Filler Pipe
77306 77306-52030 Lever Sub-Assy, Fuel Lid Lock Open
77306 77306-52050 Lever Sub-Assy, Fuel Lid Lock Open
77310 77300-52030 Cap Assy, Fuel Tank
77316 77316-52040 Gasket, Fuel Tank Cap
77350 77350-12480 Lid Assy, Fuel Filler Opening
77366 77366-52010 Spring, Fuel Filler Opening Lid Hinge
77377 77377-12060 Retainer, Fuel Filler Opening Lid Lock
77391 77391-12020 Ring, Fuel Inlet Box
77512 77512-35140 Bracket, Fuel Tank
77601 77601-02140 Band Sub-Assy, Fuel Tank, No.1 Rh
77602 77602-02110 Band Sub-Assy, Fuel Tank, No.1 Lh
77606 77606-12190 Case Sub-Assy, Fuel Tank Cover Vent
77641 77641-02160 Protector, Fuel Tank, No.1
77651 77651-12070 Cushion, Fuel Tank, No.1
77681 77681-05020 Seat, Fuel Tank Band, Lh
77682 77682-02030 Seat, Fuel Tank Band, Lh
77754 77754-47030 Hose, Charcoal Canister Outlet, No.1
77785 77785-12020 Harness, Fuel Pump
77785 77785-12021 Harness, Fuel Pump
90119 90119-W0168 New Genuine Part
9011906391 90119-06391 Bolt, W/Washer
9011910909 90119-10909 Bolt
9011910967 90119-10967 New Genuine Part
9015960602 90159-60602 SCREW
9026906017 90269-06017 RIVET
9030108020 90301-08020 Ring, O(For Fuel Pump)
9046022002 90460-22002 CLAMP
9046022002 90460-22001 CLAMP
9046046005 90460-46005 Clamp (For Fuel Filler Pipe)
9046050008 90460-50008 Clamp (For Fuel Filler Pipe)
9046712056 90467-12056 Clamp Or Clip(For Throttle Body Hose)
9046712056 90466-T0048 New Genuine Part
