Search › Model › ZWE150

ZWE150

Toyota AURIS-COROLLA · 2010 · 2,931 parts · 179 categories

2,931 items

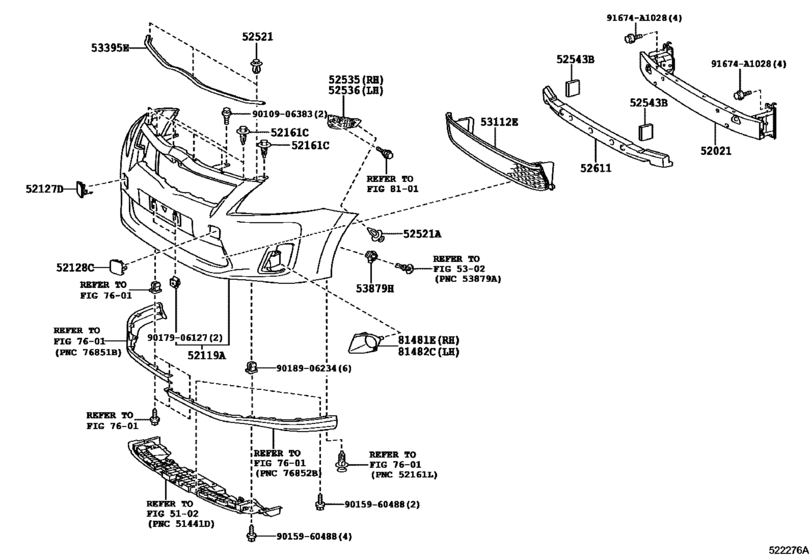

Front Bumper & Bumper Stay ([06.2010 - ] (1006- )ZWE150) 25

#	OEM	Part name
52021	52021-02120	Reinforcement Sub-Assy, Front Bumper
52119	52119-0Z907	Cover, Front Bumper
52119	52119-0Z906	Cover, Front Bumper
52127	52127-02915	Cover, Front Bumper Hole, Rh
52128	52128-02915	Cover, Front Bumper Hole, Lh
52161	52161-02030	Piece, Rear Bumper
52161	52161-16010	Clip
52521	90467-05063-C0	Clip
52521	90467-05090-B1	Clip, Rear Bumper Side
52535	52535-02040	Retainer, Front Bumper Side, Rh
52535	52535-02041	Retainer, Front Bumper Side, Rh
52536	52536-02030	Retainer, Front Bumper Side, Lh
52536	52536-02031	Retainer, Front Bumper Side, Lh
52543	52543-02010	Seal, Front Bumper
52611	52611-02190	Absorber, Front Bumper Energy
53112	53112-02320	Grille, Radiator, Lower No.1
53395	53395-02070	Seal, Hood To Front End Panel
53879	53879-58010	Retainer, Front Fender Liner
81481	81481-02250	Cover, Fog Lamp, Rh
81482	81482-02240	Cover, Fog Lamp, Lh
91674	91674-A1028	BOLT FLANGE
9010906383	90109-06383	BOLT
9015960488	90159-60488	SCREW WWASHER
9017906127	90179-06127	Bracket, Front Licence Plate Mounting
9018906234	90189-06234	GROMMET SCREW

OEM	Part name	Category
52021-02120	Reinforcement Sub-Assy, Front Bumper	Front Bumper & Bumper Stay ([06.2010 - ] (1006- )ZWE150)
52119-0Z906	Cover, Front Bumper	Front Bumper & Bumper Stay ([06.2010 - ] (1006- )ZWE150)
52119-0Z907	Cover, Front Bumper	Front Bumper & Bumper Stay ([06.2010 - ] (1006- )ZWE150)
52127-02915	Cover, Front Bumper Hole, Rh	Front Bumper & Bumper Stay ([06.2010 - ] (1006- )ZWE150)
52128-02915	Cover, Front Bumper Hole, Lh	Front Bumper & Bumper Stay ([06.2010 - ] (1006- )ZWE150)
52161-02030	Piece, Rear Bumper	Front Bumper & Bumper Stay ([06.2010 - ] (1006- )ZWE150)
52161-16010	Clip	Front Bumper & Bumper Stay ([06.2010 - ] (1006- )ZWE150)
52535-02040	Retainer, Front Bumper Side, Rh	Front Bumper & Bumper Stay ([06.2010 - ] (1006- )ZWE150)
52535-02041	Retainer, Front Bumper Side, Rh	Front Bumper & Bumper Stay ([06.2010 - ] (1006- )ZWE150)
52536-02030	Retainer, Front Bumper Side, Lh	Front Bumper & Bumper Stay ([06.2010 - ] (1006- )ZWE150)
52536-02031	Retainer, Front Bumper Side, Lh	Front Bumper & Bumper Stay ([06.2010 - ] (1006- )ZWE150)
52543-02010	Seal, Front Bumper	Front Bumper & Bumper Stay ([06.2010 - ] (1006- )ZWE150)
52611-02190	Absorber, Front Bumper Energy	Front Bumper & Bumper Stay ([06.2010 - ] (1006- )ZWE150)
53112-02320	Grille, Radiator, Lower No.1	Front Bumper & Bumper Stay ([06.2010 - ] (1006- )ZWE150)
53395-02070	Seal, Hood To Front End Panel	Front Bumper & Bumper Stay ([06.2010 - ] (1006- )ZWE150)
53879-58010	Retainer, Front Fender Liner	Front Bumper & Bumper Stay ([06.2010 - ] (1006- )ZWE150)
81481-02250	Cover, Fog Lamp, Rh	Front Bumper & Bumper Stay ([06.2010 - ] (1006- )ZWE150)
81482-02240	Cover, Fog Lamp, Lh	Front Bumper & Bumper Stay ([06.2010 - ] (1006- )ZWE150)
90109-06383	BOLT	Front Bumper & Bumper Stay ([06.2010 - ] (1006- )ZWE150)
90159-60488	SCREW WWASHER	Front Bumper & Bumper Stay ([06.2010 - ] (1006- )ZWE150)
90179-06127	Bracket, Front Licence Plate Mounting	Front Bumper & Bumper Stay ([06.2010 - ] (1006- )ZWE150)
90189-06234	GROMMET SCREW	Front Bumper & Bumper Stay ([06.2010 - ] (1006- )ZWE150)
90467-05063-C0	Clip	Front Bumper & Bumper Stay ([06.2010 - ] (1006- )ZWE150)
90467-05090-B1	Clip, Rear Bumper Side	Front Bumper & Bumper Stay ([06.2010 - ] (1006- )ZWE150)
91674-A1028	BOLT FLANGE	Front Bumper & Bumper Stay ([06.2010 - ] (1006- )ZWE150)
