Search › Model › ZWE150

ZWE150

Toyota AURIS-COROLLA · 2010 · 2,931 parts · 179 categories

← Back to categories

2,931 items

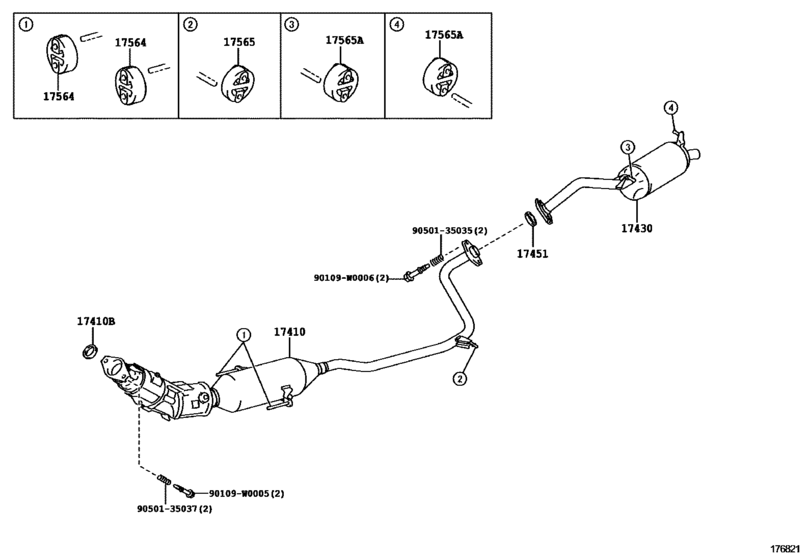

Exhaust Pipe ([06.2010 - ] (1006- )2ZRFXE) 12

#	OEM	Part name
17410	17410-37440	Pipe Assy, Exhaust, Front
17410	17451-0R010	Gasket, Exhaust Pipe
17430	17430-37450	Pipe Assy, Exhaust, Tail
17451	17451-0J021	Gasket, Exhaust Pipe
17451	17451-0J022	Gasket, Exhaust Pipe
17564	17565-0T040	Support,exhaust Pipe, No.4
17565	17565-0D100	Support, Exhaust Pipe, No.2 - EXHAUST PIPE, NO.5
17565	17565-0J031	Support, Exhaust Pipe, No.3 - EXHAUST PIPE, NO.4
90109	90109-W0005	BOLT
90109	90109-W0006	BOLT
9050135035	90501-35035	Spring, Exhaust Pipe
9050135037	90501-35037	Spring, Exhaust Pipe

OEM	Part name	Category
17410-37440	Pipe Assy, Exhaust, Front	Exhaust Pipe ([06.2010 - ] (1006- )2ZRFXE)
17430-37450	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([06.2010 - ] (1006- )2ZRFXE)
17451-0J021	Gasket, Exhaust Pipe	Exhaust Pipe ([06.2010 - ] (1006- )2ZRFXE)
17451-0J022	Gasket, Exhaust Pipe	Exhaust Pipe ([06.2010 - ] (1006- )2ZRFXE)
17451-0R010	Gasket, Exhaust Pipe	Exhaust Pipe ([06.2010 - ] (1006- )2ZRFXE)
17565-0D100	Support, Exhaust Pipe, No.2 - EXHAUST PIPE, NO.5	Exhaust Pipe ([06.2010 - ] (1006- )2ZRFXE)
17565-0J031	Support, Exhaust Pipe, No.3 - EXHAUST PIPE, NO.4	Exhaust Pipe ([06.2010 - ] (1006- )2ZRFXE)
17565-0T040	Support,exhaust Pipe, No.4	Exhaust Pipe ([06.2010 - ] (1006- )2ZRFXE)
90109-W0005	BOLT	Exhaust Pipe ([06.2010 - ] (1006- )2ZRFXE)
90109-W0006	BOLT	Exhaust Pipe ([06.2010 - ] (1006- )2ZRFXE)
90501-35035	Spring, Exhaust Pipe	Exhaust Pipe ([06.2010 - ] (1006- )2ZRFXE)
90501-35037	Spring, Exhaust Pipe	Exhaust Pipe ([06.2010 - ] (1006- )2ZRFXE)

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 179
Collected: 2026-08-02
