ZWE150

Toyota AURIS-COROLLA · 2010 · 2,931 parts · 179 categories

2,931 items

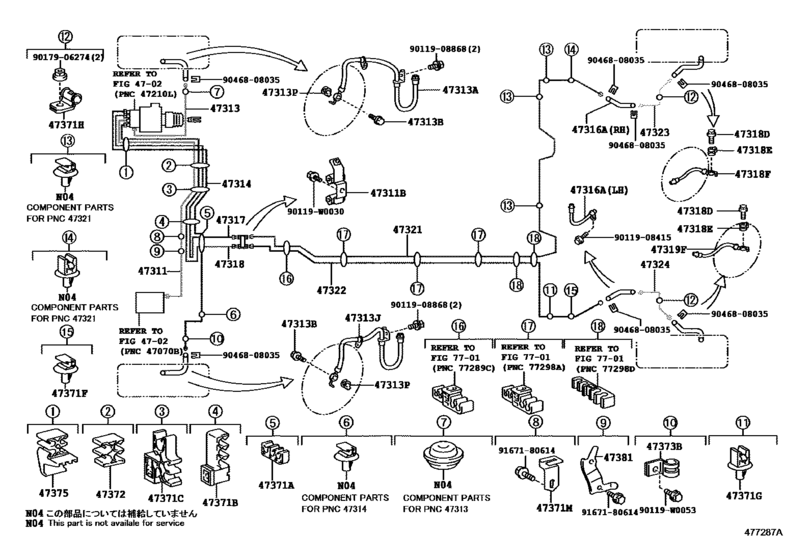

Brake Tube & Clamp ([06.2010 - ] (1006- )ZWE150..RHD) 46

#	OEM	Part name
47311	47311-02730	Tube, Front Brake, No.1
47311	90412-10279	Way(For Front Brake Tube) - NO.1(FOR FRONT BRAKE TUBE)
47313	47313-02710	Tube, Front Brake, No.3
47313	47313-02711	Tube, Front Brake, No.3
47313	90947-W2012	Hose, Flexible, No.1(For Front)
47313	90947-W2027	Hose, Flexible, No.1(For Front)
47313	90401-10058	Bolt, Union(For Front Flexible Hose)
47313	90947-W2013	Hose, Flexible, No.2(For Front)
47313	90947-W2028	Hose, Flexible, No.2(For Front)
47313	47389-50020	Gasket(For Front Flexible Hose)
47314	47314-02680	Tube, Front Brake, No.4
47316	90947-W2014	Hose, Flexible(For Rear Brake Tube) - FLEXIBLE(FOR REAR LH)
47316	90947-W2015	Hose, Flexible(For Rear Brake Tube) - FLEXIBLE(FOR REAR RH)
47316	90947-W2025	Hose, Flexible(For Rear Brake Tube)
47316	90947-W2026	Hose, Flexible(For Rear Brake Tube)
47317	47317-02630	Tube, Front Brake, No.7
47317	47317-02631	Tube, Front Brake, No.7
47318	47318-02650	Tube, Front Brake, No.8
47318	47318-02651	Tube, Front Brake, No.8
47318	90947-W2016	Hose, Flexible(For Rear Brake Tube)
47318	90947-W2024	Hose, Flexible(For Rear Rh)
47321	47320-02150	Tube, Rear Brake, No.1
47321	47320-02151	Tube, Rear Brake, No.1
47322	47322-02340	Tube, Rear Brake, No.2
47322	47322-02341	Tube, Rear Brake, No.2
47323	47323-02140	Tube, Rear Brake, No.3
47324	47324-02130	Tube, Rear Brake, No.4
47371	90464-00857	Clamp, Brake Tube, No.1
47371	90949-01D08	Clamp, Brake Tube, No.1
47371	90949-01D63	Clamp, Brake Tube, No.9 - BRAKE TUBE, NO.5
47371	90949-01D17	Clamp(For Clutch Master Cylinder Tube)
47371	90949-01D29	Clamp(For Clutch Tube)
47371	90461-10837	Clamp, Brake Tube, No.6
47371	47371-47060	Clamp, Brake Tube, No.1 - BRAKE TUBE, NO.7
47372	90464-00883	Clamp, Brake Tube, No.7
47373	90461-10781	Clamp, Brake Tube, No.6
47375	90949-01D77	Clamp, Brake Tube, No.1 - BRAKE TUBE, NO.6
47381	47381-75010	Bracket, Brake Tube Clamp No.1
90119	90119-W0030	New Genuine Part
90119	90119-W0053	New Genuine Part
9011908415	90119-08415	New Genuine Part
9011908868	90119-08868	BOLT WWASHER
9017906274	90179-06274	Nut
9046808035	90468-08035	CLIP
9046808035	90468-A0007	New Genuine Part
9167180614	91671-80614	Bolt (For Transmission Control Cable Bracket)

OEM	Part name	Category
47311-02730	Tube, Front Brake, No.1	Brake Tube & Clamp ([06.2010 - ] (1006- )ZWE150..RHD)
47313-02710	Tube, Front Brake, No.3	Brake Tube & Clamp ([06.2010 - ] (1006- )ZWE150..RHD)
47313-02711	Tube, Front Brake, No.3	Brake Tube & Clamp ([06.2010 - ] (1006- )ZWE150..RHD)
47314-02680	Tube, Front Brake, No.4	Brake Tube & Clamp ([06.2010 - ] (1006- )ZWE150..RHD)
47317-02630	Tube, Front Brake, No.7	Brake Tube & Clamp ([06.2010 - ] (1006- )ZWE150..RHD)
47317-02631	Tube, Front Brake, No.7	Brake Tube & Clamp ([06.2010 - ] (1006- )ZWE150..RHD)
47318-02650	Tube, Front Brake, No.8	Brake Tube & Clamp ([06.2010 - ] (1006- )ZWE150..RHD)
47318-02651	Tube, Front Brake, No.8	Brake Tube & Clamp ([06.2010 - ] (1006- )ZWE150..RHD)
47320-02150	Tube, Rear Brake, No.1	Brake Tube & Clamp ([06.2010 - ] (1006- )ZWE150..RHD)
47320-02151	Tube, Rear Brake, No.1	Brake Tube & Clamp ([06.2010 - ] (1006- )ZWE150..RHD)
47322-02340	Tube, Rear Brake, No.2	Brake Tube & Clamp ([06.2010 - ] (1006- )ZWE150..RHD)
47322-02341	Tube, Rear Brake, No.2	Brake Tube & Clamp ([06.2010 - ] (1006- )ZWE150..RHD)
47323-02140	Tube, Rear Brake, No.3	Brake Tube & Clamp ([06.2010 - ] (1006- )ZWE150..RHD)
47324-02130	Tube, Rear Brake, No.4	Brake Tube & Clamp ([06.2010 - ] (1006- )ZWE150..RHD)
47371-47060	Clamp, Brake Tube, No.1 - BRAKE TUBE, NO.7	Brake Tube & Clamp ([06.2010 - ] (1006- )ZWE150..RHD)
47381-75010	Bracket, Brake Tube Clamp No.1	Brake Tube & Clamp ([06.2010 - ] (1006- )ZWE150..RHD)
47389-50020	Gasket(For Front Flexible Hose)	Brake Tube & Clamp ([06.2010 - ] (1006- )ZWE150..RHD)
90119-08415	New Genuine Part	Brake Tube & Clamp ([06.2010 - ] (1006- )ZWE150..RHD)
90119-08868	BOLT WWASHER	Brake Tube & Clamp ([06.2010 - ] (1006- )ZWE150..RHD)
90119-W0030	New Genuine Part	Brake Tube & Clamp ([06.2010 - ] (1006- )ZWE150..RHD)
90119-W0053	New Genuine Part	Brake Tube & Clamp ([06.2010 - ] (1006- )ZWE150..RHD)
90179-06274	Nut	Brake Tube & Clamp ([06.2010 - ] (1006- )ZWE150..RHD)
90401-10058	Bolt, Union(For Front Flexible Hose)	Brake Tube & Clamp ([06.2010 - ] (1006- )ZWE150..RHD)
90412-10279	Way(For Front Brake Tube) - NO.1(FOR FRONT BRAKE TUBE)	Brake Tube & Clamp ([06.2010 - ] (1006- )ZWE150..RHD)
90461-10781	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([06.2010 - ] (1006- )ZWE150..RHD)
90461-10837	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([06.2010 - ] (1006- )ZWE150..RHD)
90464-00857	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([06.2010 - ] (1006- )ZWE150..RHD)
90464-00883	Clamp, Brake Tube, No.7	Brake Tube & Clamp ([06.2010 - ] (1006- )ZWE150..RHD)
90468-08035	CLIP	Brake Tube & Clamp ([06.2010 - ] (1006- )ZWE150..RHD)
90468-A0007	New Genuine Part	Brake Tube & Clamp ([06.2010 - ] (1006- )ZWE150..RHD)
90947-W2012	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([06.2010 - ] (1006- )ZWE150..RHD)
90947-W2013	Hose, Flexible, No.2(For Front)	Brake Tube & Clamp ([06.2010 - ] (1006- )ZWE150..RHD)
90947-W2014	Hose, Flexible(For Rear Brake Tube) - FLEXIBLE(FOR REAR LH)	Brake Tube & Clamp ([06.2010 - ] (1006- )ZWE150..RHD)
90947-W2015	Hose, Flexible(For Rear Brake Tube) - FLEXIBLE(FOR REAR RH)	Brake Tube & Clamp ([06.2010 - ] (1006- )ZWE150..RHD)
90947-W2016	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([06.2010 - ] (1006- )ZWE150..RHD)
90947-W2024	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([06.2010 - ] (1006- )ZWE150..RHD)
90947-W2025	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([06.2010 - ] (1006- )ZWE150..RHD)
90947-W2026	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([06.2010 - ] (1006- )ZWE150..RHD)
90947-W2027	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([06.2010 - ] (1006- )ZWE150..RHD)
90947-W2028	Hose, Flexible, No.2(For Front)	Brake Tube & Clamp ([06.2010 - ] (1006- )ZWE150..RHD)
90949-01D08	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([06.2010 - ] (1006- )ZWE150..RHD)
90949-01D17	Clamp(For Clutch Master Cylinder Tube)	Brake Tube & Clamp ([06.2010 - ] (1006- )ZWE150..RHD)
90949-01D29	Clamp(For Clutch Tube)	Brake Tube & Clamp ([06.2010 - ] (1006- )ZWE150..RHD)
90949-01D63	Clamp, Brake Tube, No.9 - BRAKE TUBE, NO.5	Brake Tube & Clamp ([06.2010 - ] (1006- )ZWE150..RHD)
90949-01D77	Clamp, Brake Tube, No.1 - BRAKE TUBE, NO.6	Brake Tube & Clamp ([06.2010 - ] (1006- )ZWE150..RHD)
91671-80614	Bolt (For Transmission Control Cable Bracket)	Brake Tube & Clamp ([06.2010 - ] (1006- )ZWE150..RHD)

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 179
Collected: 2026-08-02
