Search › Model › ZVW55

ZVW55

Toyota PRIUS · 2015 · 3,025 parts · 172 categories
ZVW55 ×

← Back to categories

3,025 items

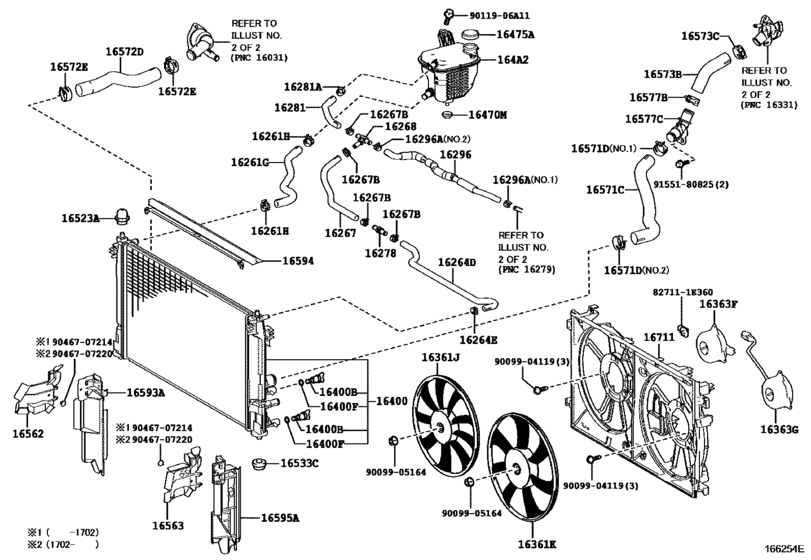

Radiator & Water Outlet ([11.2015 - ] (1511- )) 79
#OEMPart name
0 82711-1E360 Clamp, Wiring Harness
164 11285-33030 Label, Coolant System Notice
164 11285-36010 Label, Coolant System Notice
1628 16268-37110 Pipe, Water By-Pass, No.6
1629 16267-37100 Hose, Water By-Pass, No.14
1629 96136-42501 Clip(For Ventilation Hose)
16031 16031-37010 Water Inlet Sub-Assy, W/thermostat
16261 16261-37150 Hose, Water By-Pass, No.1
16261 96138-42501 Clip, Hose(For Radiator Hose Sub-Assy)
16261 16261-37160 Hose, Water By-Pass
16261 96137-41501 Clamp Or Clip, Hose(For Water By-Pass Hose)
16264 16264-37120 Hose, Water By-Pass, No.2
16264 96136-41901 Clip Or Clamp(For Ventilation Hose)
16264 16264-37130 Hose, Water By-Pass, No.2
16267 16267-37090 Hose, Water By-Pass, No.3
16268 16268-37100 Pipe, Water By-Pass, No.1
16278 16268-37120 Pipe, Water By-Pass, No.1
16278 90466-16005 Clip(For Water By-Pass Hose) - NO.2(FOR OIL COOLER HOSE)
16279 16279-37020 Pipe, Water By-Pass, No.3
16281 16281-37100 Hose, Water By-Pass, No.4
16281 96136-42101 Clip, Hose(For Radiator Hose Sub-Assy)
16282 16282-37090 Hose, Water By-Pass, No.5
16283 16283-37020 Hose, Water By-Pass, No.6
16283 16283-37021 Hose, Water By-Pass, No.6
16288 16288-37010 Pipe, Water By-Pass, No.4
16289 16278-37020 Pipe, Water By-Pass, No.5
16293 16293-37010 Hose, Water By-Pass, No.10
16295 16295-37020 Hose, Water By-Pass, No.7
16296 16296-37010 Hose, Water By-Pass, No.8
16296 90466-16004 Clip(For Ventilation Hose No.2)
16297 16297-37010 Hose, Water By-Pass, No.9
16299 16281-37070 Hose, Water By-Pass, No.13
16326 16326-37020 Gasket, Water Inlet Housing, No.2
16331 16331-37090 Outlet, Water
16341 16341-37010 Gasket, Water Outlet
16361 16361-37070 Fan, Rh
16361 16361-37060 Fan, Lh
16363 16363-36160 Motor, Cooling Fan, Rh
16363 16363-37060 Motor, Cooling Fan, Lh
16400 16400-37310 Radiator Assy
16400 16400-37311 RADIATOR ASSY
16400 16417-21280 Cock Sub-Assy, Radiator Drain
16400 16492-21050 Ring, O(For Oil Cooler Drain Cock)
16470 90480-18010 Grommet, Radiator Reserve Tank Hose
16475 16475-28140 Cap Sub-Assy, Radiator Reserve Tank
16475 16475-37011 Cap Sub-Assy, Radiator Reserve Tank
16523 16523-37010 Cushion, Radiator Support
16533 90480-40021 Grommet(For Radiator Support)
16562 16562-37010 Seal, Radiator To Support, No.2
16563 16563-37010 Seal, Radiator To Support, No.3
16571 16571-37210 Hose, Radiator, No.1
16571 90466-40001 Clip, Radiator Hose, No.1
16571 90466-43002 Clip, Radiator Hose, No.1
16572 16572-37210 Hose, Radiator, No.2
16573 16573-37020 Hose, Radiator, No.3
16577 16577-37090 Pipe, Radiator
16593 16593-37030 Guide, Radiator Air, No.1 Rh
16594 16594-37010 Guide, Radiator Air, No.2
16595 16595-37040 Guide, Radiator Air, No.1 Lh
16671 16671-37010 Valve, Water
16711 16711-37160 Shroud, Fan
89422 89422-47010 Sensor, Water Temperature (For E.f.i.)
9011906 90119-06A11 BOLT WWASHER
1625837020 16258-37020 Gasket(For Heater Return)
9009904119 90099-04119 BOLT WASHER HEAD
9009905164 90099-05164 Nut
9012606026 90126-06026 Bolt, Stud(Manifold To Throttle Body)
9012608060 90126-08060 Bolt, Stud(For Intake Manifold To Cylinder Head)
9046707214 90467-07214 Clip, Front Fender Liner
9046707220 90467-07220 Clip
9046814044 90468-14044 9046814044
9155180620 91551-80620 Bolt
9155180625 91551-80625 Bolt(For Camshaft Housing Set)
9155180825 91551-80825 Bolt(For Cylinder Head Set Sub)
9167180616 91671-80616 BOLT FLANGE
9167180820 91671-80820 Bolt (For Transmission Control Cable Bracket)
9167281025 91672-81025 Bolt, Center Support Bearing Bracket
9415180600 94151-80600 Nut, Cap(For Cylinder Head Cover)
9415180800 94151-80800 Nut (For Transmission Control Cable)
