ZVW55

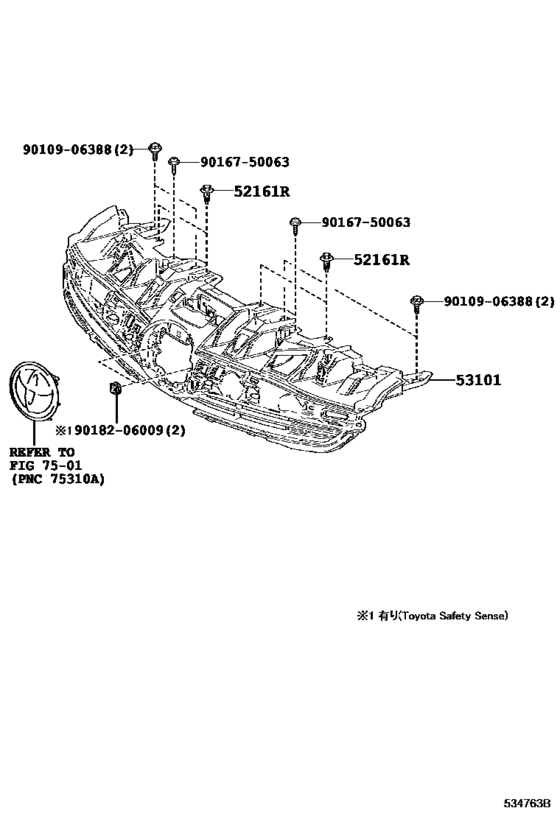

Radiator Grille ([11.2015 - ] (1511- )) 8
| # | OEM | Part name |
|---|---|---|
| 52161 | 52161-16010 | Clip |
| 52161 | 52161-0K040 | Clip |
| 52161 | 52161-02020 | Clip |
| 53101 | 53101-47030 | Grille Sub-Assy, Radiator |
| 9010906388 | 90109-06388 | BOLT |
| 9010906388 | 90109-A0061 | Bolt |
| 9016750063 | 90167-50063 | SCREW PAN TAPPING |
| 9018206009 | 90182-06009 | NUT WWASHER |
| OEM | Part name | Category |
|---|---|---|
| 52161-02020 | Clip | Radiator Grille ([11.2015 - ] (1511- )) |
| 52161-0K040 | Clip | Radiator Grille ([11.2015 - ] (1511- )) |
| 52161-16010 | Clip | Radiator Grille ([11.2015 - ] (1511- )) |
| 53101-47030 | Grille Sub-Assy, Radiator | Radiator Grille ([11.2015 - ] (1511- )) |
| 90109-06388 | BOLT | Radiator Grille ([11.2015 - ] (1511- )) |
| 90109-A0061 | Bolt | Radiator Grille ([11.2015 - ] (1511- )) |
| 90167-50063 | SCREW PAN TAPPING | Radiator Grille ([11.2015 - ] (1511- )) |
| 90182-06009 | NUT WWASHER | Radiator Grille ([11.2015 - ] (1511- )) |
