Search › Model › ZVW55
ZVW55

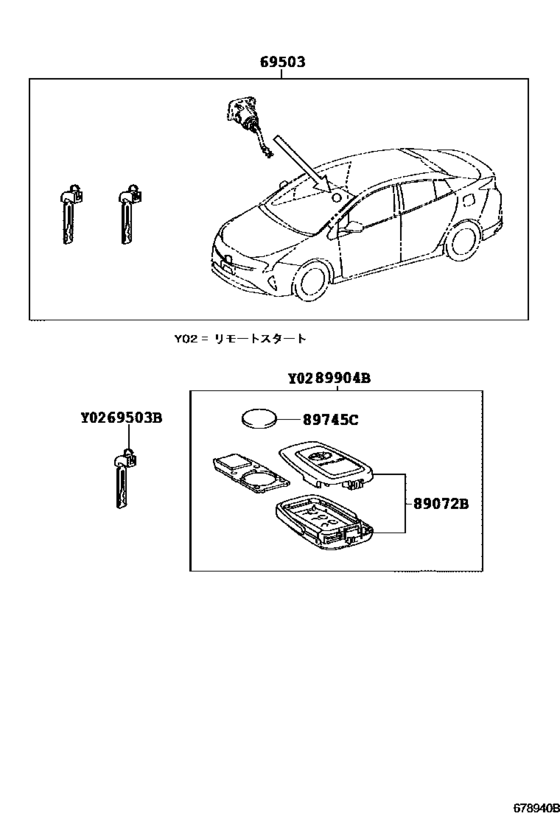

Lock Cylinder Set ([11.2015 - ] (1511- )) 6
| # | OEM | Part name |
|---|---|---|
| 69503 | 69005-47220 | Cylinder Set, Lock |
| 69503 | 69515-47020 | Key, Cut |
| 89072 | 89072-47180 | Housing Set, Door Control Transmitter (For Smart Key) |
| 89745 | 89745-45010 | Battery, Transmitter |
| 89745 | 89745-50020 | Battery, Transmitter |
| 89904 | 89904-47120 | Transmitter Sub-Assy, Electrical Key |
| OEM | Part name | Category |
|---|---|---|
| 69005-47220 | Cylinder Set, Lock | Lock Cylinder Set ([11.2015 - ] (1511- )) |
| 69515-47020 | Key, Cut | Lock Cylinder Set ([11.2015 - ] (1511- )) |
| 89072-47180 | Housing Set, Door Control Transmitter (For Smart Key) | Lock Cylinder Set ([11.2015 - ] (1511- )) |
| 89745-45010 | Battery, Transmitter | Lock Cylinder Set ([11.2015 - ] (1511- )) |
| 89745-50020 | Battery, Transmitter | Lock Cylinder Set ([11.2015 - ] (1511- )) |
| 89904-47120 | Transmitter Sub-Assy, Electrical Key | Lock Cylinder Set ([11.2015 - ] (1511- )) |
