| 82212-47020 |
Harness Assy, Air Conditioner |

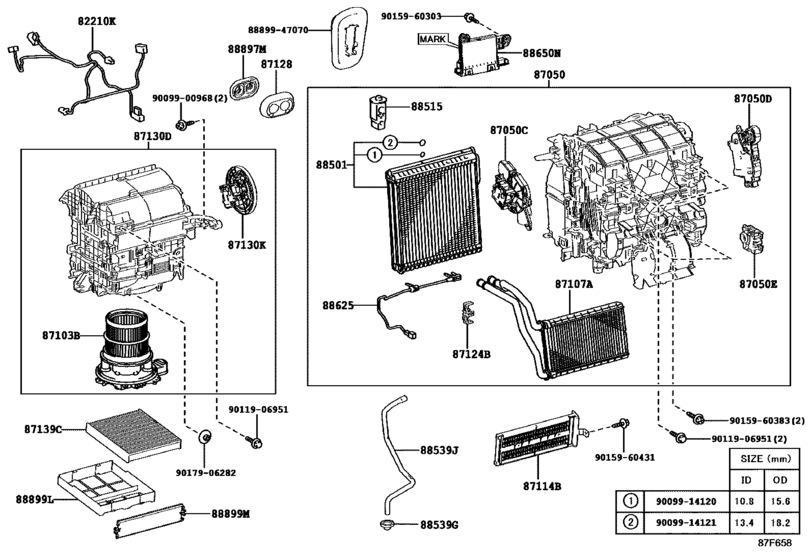

Heating & Air Conditioning - Cooler Unit ([11.2015 - ] (1511- )) |
| 87050-47300 |
Radiator Assy, Air Conditioner |
Heating & Air Conditioning - Cooler Unit ([11.2015 - ] (1511- )) |
| 87103-58070 |
Motor Sub-Assy, Blower W/fan |
Heating & Air Conditioning - Cooler Unit ([11.2015 - ] (1511- )) |
| 87106-28230 |
Damper Servo Sub-Assy, Air Conditioner Radiator, No.1 |
Heating & Air Conditioning - Cooler Unit ([11.2015 - ] (1511- )) |
| 87106-28250 |
Damper Servo Sub-Assy, Blower, No.1 |
Heating & Air Conditioning - Cooler Unit ([11.2015 - ] (1511- )) |
| 87106-47180 |
Damper Servo Sub-Assy, Air Conditioner Radiator, No.2 |
Heating & Air Conditioning - Cooler Unit ([11.2015 - ] (1511- )) |
| 87106-47190 |
Damper Servo Sub-Assy, Air Conditioner Radiator, No.3 |
Heating & Air Conditioning - Cooler Unit ([11.2015 - ] (1511- )) |
| 87107-47070 |
Unit Sub-Assy, Heater Radiator |
Heating & Air Conditioning - Cooler Unit ([11.2015 - ] (1511- )) |
| 87114-47020 |
Cover, Heater |
Heating & Air Conditioning - Cooler Unit ([11.2015 - ] (1511- )) |
| 87124-33070 |
Clamp, Heater |
Heating & Air Conditioning - Cooler Unit ([11.2015 - ] (1511- )) |
| 87128-28010 |
Grommet, Heater |
Heating & Air Conditioning - Cooler Unit ([11.2015 - ] (1511- )) |
| 87128-28020 |
Grommet, Heater |
Heating & Air Conditioning - Cooler Unit ([11.2015 - ] (1511- )) |
| 87130-58091 |
Blower Assy |
Heating & Air Conditioning - Cooler Unit ([11.2015 - ] (1511- )) |
| 87139-58010 |
Filter, Clean Air (Charcoal) |
Heating & Air Conditioning - Cooler Unit ([11.2015 - ] (1511- )) |
| 87139-YZZ49 |
Filter, Cabin (Charcoal) |
Heating & Air Conditioning - Cooler Unit ([11.2015 - ] (1511- )) |
| 88501-47090 |
Evaporator Sub-Assy, Cooler, No.1 |
Heating & Air Conditioning - Cooler Unit ([11.2015 - ] (1511- )) |
| 88515-30800 |
Valve, Cooler Expansion |
Heating & Air Conditioning - Cooler Unit ([11.2015 - ] (1511- )) |
| 88539-47050 |
Hose, Drain Cooler |
Heating & Air Conditioning - Cooler Unit ([11.2015 - ] (1511- )) |
| 88620-28060 |
Thermistor, Cooler, No.1 |
Heating & Air Conditioning - Cooler Unit ([11.2015 - ] (1511- )) |
| 88650-47340 |
Amplifier Assy, Air Conditioner |
Heating & Air Conditioning - Cooler Unit ([11.2015 - ] (1511- )) |
| 88650-47350 |
Amplifier Assy, Air Conditioner |
Heating & Air Conditioning - Cooler Unit ([11.2015 - ] (1511- )) |
| 88650-47351 |
Amplifier Assy, Air Conditioner |
Heating & Air Conditioning - Cooler Unit ([11.2015 - ] (1511- )) |
| 88650-47360 |
Amplifier Assy, Air Conditioner |
Heating & Air Conditioning - Cooler Unit ([11.2015 - ] (1511- )) |
| 88650-47361 |
Amplifier Assy, Air Conditioner |
Heating & Air Conditioning - Cooler Unit ([11.2015 - ] (1511- )) |
| 88650-47380 |
Amplifier Assy, Air Conditioner |
Heating & Air Conditioning - Cooler Unit ([11.2015 - ] (1511- )) |
| 88650-47381 |
Amplifier Assy, Air Conditioner |
Heating & Air Conditioning - Cooler Unit ([11.2015 - ] (1511- )) |
| 88650-47490 |
Amplifier Assy, Air Conditioner |
Heating & Air Conditioning - Cooler Unit ([11.2015 - ] (1511- )) |
| 88650-47510 |
Amplifier Assy, Air Conditioner |
Heating & Air Conditioning - Cooler Unit ([11.2015 - ] (1511- )) |
| 88888-47010 |
Grommet (For Cooler Unit Drain Hose) |
Heating & Air Conditioning - Cooler Unit ([11.2015 - ] (1511- )) |
| 88899-28620 |
Plate, Cover |
Heating & Air Conditioning - Cooler Unit ([11.2015 - ] (1511- )) |
| 88899-48070 |
Case, Air Filter |
Heating & Air Conditioning - Cooler Unit ([11.2015 - ] (1511- )) |
| 90099-00968 |
Screw(For Air Conditioner Unit) |
Heating & Air Conditioning - Cooler Unit ([11.2015 - ] (1511- )) |
| 90099-14120 |
O-Ring, Cooler Evaporator No.1(Discharge) |
Heating & Air Conditioning - Cooler Unit ([11.2015 - ] (1511- )) |
| 90099-14121 |
O-Ring, Cooler Evaporator No.1(Suction) |
Heating & Air Conditioning - Cooler Unit ([11.2015 - ] (1511- )) |
| 90119-06951 |
BOLT WWASHER |
Heating & Air Conditioning - Cooler Unit ([11.2015 - ] (1511- )) |
| 90159-60303 |
SCREW |
Heating & Air Conditioning - Cooler Unit ([11.2015 - ] (1511- )) |
| 90159-60383 |
SCREW WWASHER |
Heating & Air Conditioning - Cooler Unit ([11.2015 - ] (1511- )) |
| 90159-60431 |
SCREW |
Heating & Air Conditioning - Cooler Unit ([11.2015 - ] (1511- )) |
| 90159-A0010 |
SCREW WWASHER TAPP |
Heating & Air Conditioning - Cooler Unit ([11.2015 - ] (1511- )) |
| 90179-06282 |
New Genuine Part |
Heating & Air Conditioning - Cooler Unit ([11.2015 - ] (1511- )) |
