Search › Model › ZVW55

ZVW55

Toyota PRIUS · 2015 · 3,025 parts · 172 categories

← Back to categories

3,025 items

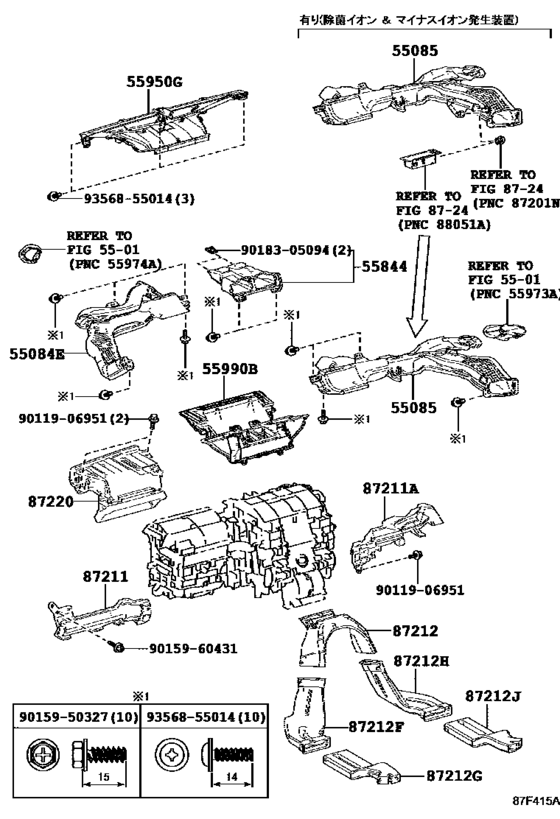

Heating & Air Conditioning - Control & Air Duct ([11.2015 - ] ｴｱﾀﾞｸﾄ (1511- )) 19

#	OEM	Part name
55084	55085-47060	Duct Sub-Assy, Heater To Register, No.1
55085	55084-47110	Duct Sub-Assy, Heater To Register, No.2
55085	55084-47100	Duct Sub-Assy, Heater To Register, No.2
55844	55844-47100	Duct, Heater To Register, No.2
55950	55950-47070	Nozzle Assy, Defroster
55990	55990-47090	Nozzle Assy, Defroster, Lower
87211	87211-47180	Duct, Air, No.1
87211	87211-47170	Duct, Air, No.2
87212	87215-47040	Duct, Air, Rear No.1
87212	87213-47050	Duct, Air, Rear No.2
87212	87217-47010	Duct, Air, Rear No.3
87212	87212-47040	Duct, Air, Rear No.4
87212	87216-47010	Duct, Air, Rear No.5
87220	87220-47030	Duct Assy, Air
9011906951	90119-06951	BOLT WWASHER
9015950327	90159-50327	SCREW WWASHER
9015960431	90159-60431	SCREW
9018305094	90183-05094	NUT
9356855014	93568-55014	Screw

OEM	Part name	Category
55084-47100	Duct Sub-Assy, Heater To Register, No.2	Heating & Air Conditioning - Control & Air Duct ([11.2015 - ] ｴｱﾀﾞｸﾄ (1511- ))
55084-47110	Duct Sub-Assy, Heater To Register, No.2	Heating & Air Conditioning - Control & Air Duct ([11.2015 - ] ｴｱﾀﾞｸﾄ (1511- ))
55085-47060	Duct Sub-Assy, Heater To Register, No.1	Heating & Air Conditioning - Control & Air Duct ([11.2015 - ] ｴｱﾀﾞｸﾄ (1511- ))
55844-47100	Duct, Heater To Register, No.2	Heating & Air Conditioning - Control & Air Duct ([11.2015 - ] ｴｱﾀﾞｸﾄ (1511- ))
55950-47070	Nozzle Assy, Defroster	Heating & Air Conditioning - Control & Air Duct ([11.2015 - ] ｴｱﾀﾞｸﾄ (1511- ))
55990-47090	Nozzle Assy, Defroster, Lower	Heating & Air Conditioning - Control & Air Duct ([11.2015 - ] ｴｱﾀﾞｸﾄ (1511- ))
87211-47170	Duct, Air, No.2	Heating & Air Conditioning - Control & Air Duct ([11.2015 - ] ｴｱﾀﾞｸﾄ (1511- ))
87211-47180	Duct, Air, No.1	Heating & Air Conditioning - Control & Air Duct ([11.2015 - ] ｴｱﾀﾞｸﾄ (1511- ))
87212-47040	Duct, Air, Rear No.4	Heating & Air Conditioning - Control & Air Duct ([11.2015 - ] ｴｱﾀﾞｸﾄ (1511- ))
87213-47050	Duct, Air, Rear No.2	Heating & Air Conditioning - Control & Air Duct ([11.2015 - ] ｴｱﾀﾞｸﾄ (1511- ))
87215-47040	Duct, Air, Rear No.1	Heating & Air Conditioning - Control & Air Duct ([11.2015 - ] ｴｱﾀﾞｸﾄ (1511- ))
87216-47010	Duct, Air, Rear No.5	Heating & Air Conditioning - Control & Air Duct ([11.2015 - ] ｴｱﾀﾞｸﾄ (1511- ))
87217-47010	Duct, Air, Rear No.3	Heating & Air Conditioning - Control & Air Duct ([11.2015 - ] ｴｱﾀﾞｸﾄ (1511- ))
87220-47030	Duct Assy, Air	Heating & Air Conditioning - Control & Air Duct ([11.2015 - ] ｴｱﾀﾞｸﾄ (1511- ))
90119-06951	BOLT WWASHER	Heating & Air Conditioning - Control & Air Duct ([11.2015 - ] ｴｱﾀﾞｸﾄ (1511- ))
90159-50327	SCREW WWASHER	Heating & Air Conditioning - Control & Air Duct ([11.2015 - ] ｴｱﾀﾞｸﾄ (1511- ))
90159-60431	SCREW	Heating & Air Conditioning - Control & Air Duct ([11.2015 - ] ｴｱﾀﾞｸﾄ (1511- ))
90183-05094	NUT	Heating & Air Conditioning - Control & Air Duct ([11.2015 - ] ｴｱﾀﾞｸﾄ (1511- ))
93568-55014	Screw	Heating & Air Conditioning - Control & Air Duct ([11.2015 - ] ｴｱﾀﾞｸﾄ (1511- ))
