Search › Model › ZVW55
ZVW55

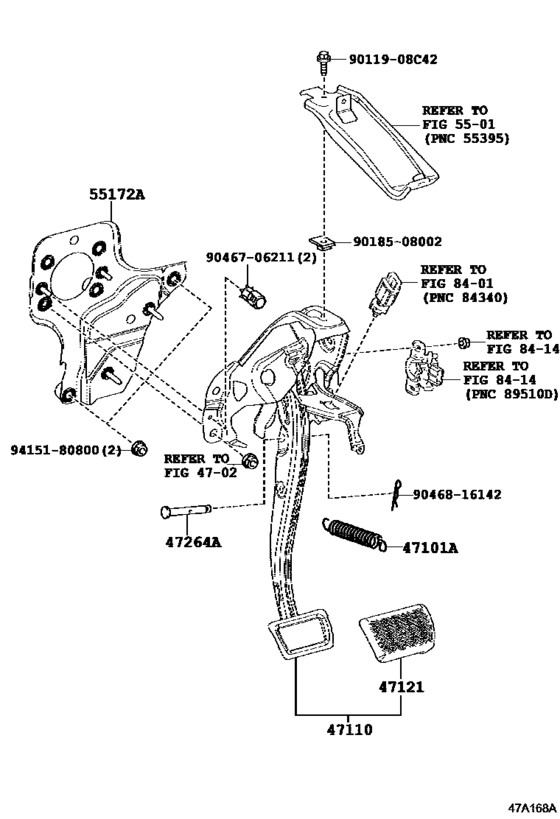

Brake Pedal & Bracket ([11.2015 - ] (1511- )) 10
| # | OEM | Part name |
|---|---|---|
| 47101 | 90507-15009 | Spring(For Brake Pedal Return) |
| 47110 | 47110-47070 | Support Assy, Brake Pedal |
| 47121 | 47121-47010 | Pad, Brake Pedal |
| 47264 | 90249-08309 | Pin(For Push Rod) |
| 55172 | 55172-47040 | Base, Brake Pedal Support |
| 9011908 | 90119-08C42 | New Genuine Part |
| 9018508002 | 90185-08002 | New Genuine Part |
| 9046706211 | 90467-06211 | New Genuine Part |
| 9046816142 | 90468-16142 | Clip(For Push Rod Clevis Pin) |
| 9415180800 | 94151-80800 | Nut (For Transmission Control Cable) |
| OEM | Part name | Category |
|---|---|---|
| 47110-47070 | Support Assy, Brake Pedal | Brake Pedal & Bracket ([11.2015 - ] (1511- )) |
| 47121-47010 | Pad, Brake Pedal | Brake Pedal & Bracket ([11.2015 - ] (1511- )) |
| 55172-47040 | Base, Brake Pedal Support | Brake Pedal & Bracket ([11.2015 - ] (1511- )) |
| 90119-08C42 | New Genuine Part | Brake Pedal & Bracket ([11.2015 - ] (1511- )) |
| 90185-08002 | New Genuine Part | Brake Pedal & Bracket ([11.2015 - ] (1511- )) |
| 90249-08309 | Pin(For Push Rod) | Brake Pedal & Bracket ([11.2015 - ] (1511- )) |
| 90467-06211 | New Genuine Part | Brake Pedal & Bracket ([11.2015 - ] (1511- )) |
| 90468-16142 | Clip(For Push Rod Clevis Pin) | Brake Pedal & Bracket ([11.2015 - ] (1511- )) |
| 90507-15009 | Spring(For Brake Pedal Return) | Brake Pedal & Bracket ([11.2015 - ] (1511- )) |
| 94151-80800 | Nut (For Transmission Control Cable) | Brake Pedal & Bracket ([11.2015 - ] (1511- )) |
