Search › Model › ZVW55
ZVW55

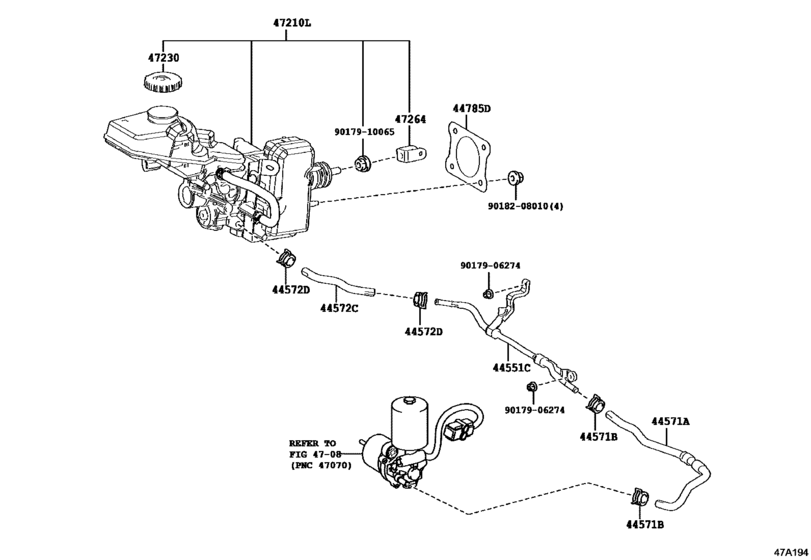

Brake Master Cylinder ([11.2015 - ] (1511- )) 11
| # | OEM | Part name |
|---|---|---|
| 44551 | 44551-47060 | Tube, Brake Actuator, No.1 |
| 44571 | 44571-47080 | Hose, Brake Actuator, No.1 |
| 44571 | 96137-41501 | Clamp Or Clip, Hose(For Water By-Pass Hose) |
| 44572 | 44572-47060 | Hose, Brake Actuator, No.2 |
| 44785 | 44785-12040 | Gasket, Brake Booster |
| 47210 | 47050-47600 | Brake Booster Assy, W/master Cylinder |
| 47230 | 47230-47090 | Cap Assy, Brake Master Cylinder Reservoir Filler |
| 47264 | 47264-47010 | Clevis, Master Cylinder Push Rod |
| 9017906274 | 90179-06274 | Nut |
| 9017910065 | 90179-10065 | Nut, Master Cylinder Push Rod Clevis Lock |
| 9018208010 | 90182-08010 | New Genuine Part |
| OEM | Part name | Category |
|---|---|---|
| 44551-47060 | Tube, Brake Actuator, No.1 | Brake Master Cylinder ([11.2015 - ] (1511- )) |
| 44571-47080 | Hose, Brake Actuator, No.1 | Brake Master Cylinder ([11.2015 - ] (1511- )) |
| 44572-47060 | Hose, Brake Actuator, No.2 | Brake Master Cylinder ([11.2015 - ] (1511- )) |
| 44785-12040 | Gasket, Brake Booster | Brake Master Cylinder ([11.2015 - ] (1511- )) |
| 47050-47600 | Brake Booster Assy, W/master Cylinder | Brake Master Cylinder ([11.2015 - ] (1511- )) |
| 47230-47090 | Cap Assy, Brake Master Cylinder Reservoir Filler | Brake Master Cylinder ([11.2015 - ] (1511- )) |
| 47264-47010 | Clevis, Master Cylinder Push Rod | Brake Master Cylinder ([11.2015 - ] (1511- )) |
| 90179-06274 | Nut | Brake Master Cylinder ([11.2015 - ] (1511- )) |
| 90179-10065 | Nut, Master Cylinder Push Rod Clevis Lock | Brake Master Cylinder ([11.2015 - ] (1511- )) |
| 90182-08010 | New Genuine Part | Brake Master Cylinder ([11.2015 - ] (1511- )) |
| 96137-41501 | Clamp Or Clip, Hose(For Water By-Pass Hose) | Brake Master Cylinder ([11.2015 - ] (1511- )) |
