Search › Model › ZVW55
ZVW55

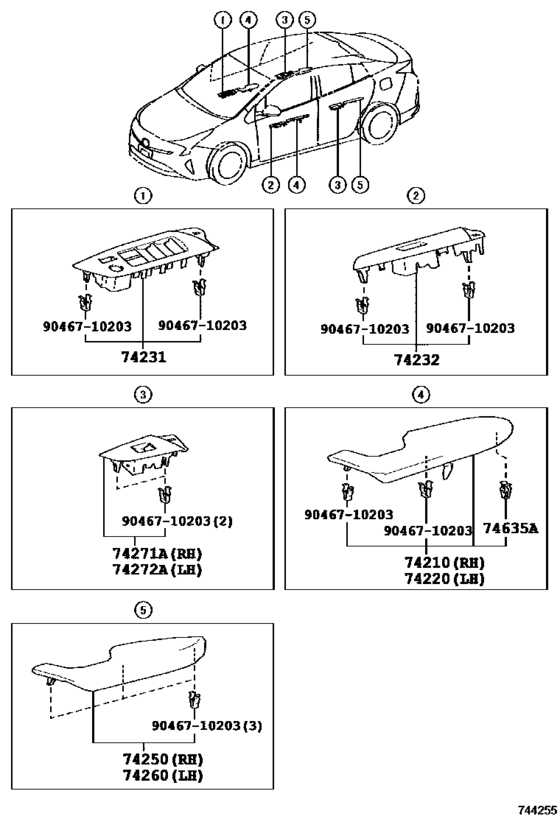

Armrest & Visor ([11.2015 - ] ｱｰﾑﾚｽﾄ (1511- )) 10
| # | OEM | Part name |
|---|---|---|
| 74210 | 74210-47010-C0 | Armrest Assy, Front, Rh |
| 74220 | 74220-47010-C0 | Armrest Assy, Front, Lh |
| 74231 | 74231-47220 | Panel, Front Armrest Base, Upper Rh |
| 74232 | 74232-47180 | Panel, Front Armrest Base, Upper Lh |
| 74250 | 74250-47010-C0 | Armrest Assy, Rear Rh |
| 74260 | 74260-47010-C0 | Armrest Assy, Rear Lh |
| 74271 | 74271-47120 | Panel, Rear Door Armrest Base, Upper Rh |
| 74272 | 74272-47120 | Panel, Rear Door Armrest Base, Upper Lh |
| 74635 | 90467-08227 | Clip, Panel, Instrument Cluster Finish, End |
| 9046710203 | 90467-10203 | Direct |
| OEM | Part name | Category |
|---|---|---|
| 74210-47010-C0 | Armrest Assy, Front, Rh | Armrest & Visor ([11.2015 - ] ｱｰﾑﾚｽﾄ (1511- )) |
| 74220-47010-C0 | Armrest Assy, Front, Lh | Armrest & Visor ([11.2015 - ] ｱｰﾑﾚｽﾄ (1511- )) |
| 74231-47220 | Panel, Front Armrest Base, Upper Rh | Armrest & Visor ([11.2015 - ] ｱｰﾑﾚｽﾄ (1511- )) |
| 74232-47180 | Panel, Front Armrest Base, Upper Lh | Armrest & Visor ([11.2015 - ] ｱｰﾑﾚｽﾄ (1511- )) |
| 74250-47010-C0 | Armrest Assy, Rear Rh | Armrest & Visor ([11.2015 - ] ｱｰﾑﾚｽﾄ (1511- )) |
| 74260-47010-C0 | Armrest Assy, Rear Lh | Armrest & Visor ([11.2015 - ] ｱｰﾑﾚｽﾄ (1511- )) |
| 74271-47120 | Panel, Rear Door Armrest Base, Upper Rh | Armrest & Visor ([11.2015 - ] ｱｰﾑﾚｽﾄ (1511- )) |
| 74272-47120 | Panel, Rear Door Armrest Base, Upper Lh | Armrest & Visor ([11.2015 - ] ｱｰﾑﾚｽﾄ (1511- )) |
| 90467-08227 | Clip, Panel, Instrument Cluster Finish, End | Armrest & Visor ([11.2015 - ] ｱｰﾑﾚｽﾄ (1511- )) |
| 90467-10203 | Direct | Armrest & Visor ([11.2015 - ] ｱｰﾑﾚｽﾄ (1511- )) |
