ZVW41

Toyota PRIUS · 2011 · 4,573 parts · 192 categories

4,573 items

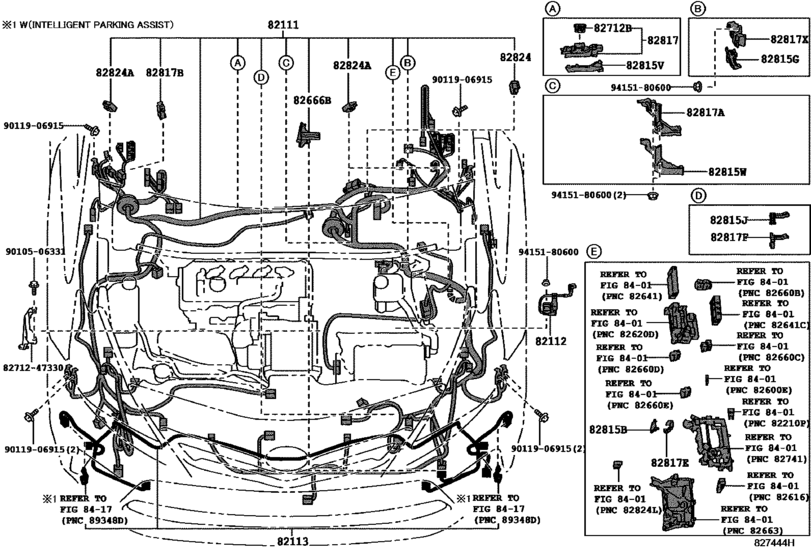

Wiring & Clamp ([09.2011 - 10.2012] ENGINE ROOM (1109-1210)) 51

#	OEM	Part name
82111	82111-47641	Wire, Engine Room Main
82111	82111-47642	Wire, Engine Room Main
82111	82111-47643	Wire, Engine Room Main
82111	82111-47671	Wire, Engine Room Main
82111	82111-47672	Wire, Engine Room Main
82111	82111-47673	Wire, Engine Room Main
82111	82111-47E10	Wire, Engine Room Main
82111	82111-47M70	Wire, Engine Room Main
82111	82111-47N60	Wire, Engine Room Main
82111	82111-47N70	Wire, Engine Room Main
82111	82111-47S90	Wire, Engine Room Main
82111	82111-47T90	Wire, Engine Room Main
82111	82111-47U60	Wire, Engine Room Main
82111	82111-47U70	Wire, Engine Room Main
82111	82111-47661	Wire, Engine Room Main
82111	82111-47662	Wire, Engine Room Main
82111	82111-47691	Wire, Engine Room Main
82111	82111-47692	Wire, Engine Room Main
82111	82111-47E00	Wire, Engine Room Main
82111	82111-47M60	Wire, Engine Room Main
82111	82111-47N30	Wire, Engine Room Main
82111	82111-47S80	Wire, Engine Room Main
82111	82111-47T80	Wire, Engine Room Main
82111	82111-47U30	Wire, Engine Room Main
82112	82112-47030	Wire, Engine Room, No.2
82113	82113-47060	Wire, Engine Room, No.3
82113	82113-47070	Wire, Engine Room, No.3
82113	82113-47080	Wire, Engine Room, No.3
82113	82113-47090	Wire, Engine Room, No.3
82113	82113-47240	Wire, Engine Room, No.3
82113	82113-47300	Wire, Engine Room, No.3
82113	82113-47280	Wire, Engine Room, No.3
82666	82666-47530	Holder, Connector No.2
82712	82712-47270	Support, Wiring Harness
82815	82815-47390	Cover, Wiring Harness Protector
82815	82815-47600	Cover, Wiring Harness Protector - WIRING HARNESS PROTECTOR, NO.9
82815	82815-47560	Cover, Wiring Harness Protector No.5
82815	82815-47620	Cover, Wiring Harness Protector, No.8 - WIRING HARNESS PROTECTOR, NO.1
82815	82815-47610	Cover, Wiring Harness Protector, No.7 - WIRING HARNESS PROTECTOR, NO.8
82817	82817-47870	Protector, Wiring Harness, No.1
82817	82817-47860	Protector, Wiring Harness, No.2 - WIRING HARNESS, NO.6
82817	82817-47480	Protector, Wiring Harness, No.3
82817	82817-47620	Protector, Wiring Harness, No.1
82817	82817-47800	Protector, Wiring Harness, No.3
82817	82817-47850	Protector, Wiring Harness, No.5 - WIRING HARNESS, NO.7
82824	82824-73040	Connector, Wiring Harness
82824	82824-73050	Connector, Wiring Harness
8271247330	82712-47330	Hose, Suction
9010506331	90105-06331	New Genuine Part
9011906915	90119-06915	BOLT W-WASHER
9415180600	94151-80600	Nut, Cap(For Cylinder Head Cover)

OEM	Part name	Category
82111-47641	Wire, Engine Room Main	Wiring & Clamp ([09.2011 - 10.2012] ENGINE ROOM (1109-1210))
82111-47642	Wire, Engine Room Main	Wiring & Clamp ([09.2011 - 10.2012] ENGINE ROOM (1109-1210))
82111-47643	Wire, Engine Room Main	Wiring & Clamp ([09.2011 - 10.2012] ENGINE ROOM (1109-1210))
82111-47661	Wire, Engine Room Main	Wiring & Clamp ([09.2011 - 10.2012] ENGINE ROOM (1109-1210))
82111-47662	Wire, Engine Room Main	Wiring & Clamp ([09.2011 - 10.2012] ENGINE ROOM (1109-1210))
82111-47671	Wire, Engine Room Main	Wiring & Clamp ([09.2011 - 10.2012] ENGINE ROOM (1109-1210))
82111-47672	Wire, Engine Room Main	Wiring & Clamp ([09.2011 - 10.2012] ENGINE ROOM (1109-1210))
82111-47673	Wire, Engine Room Main	Wiring & Clamp ([09.2011 - 10.2012] ENGINE ROOM (1109-1210))
82111-47691	Wire, Engine Room Main	Wiring & Clamp ([09.2011 - 10.2012] ENGINE ROOM (1109-1210))
82111-47692	Wire, Engine Room Main	Wiring & Clamp ([09.2011 - 10.2012] ENGINE ROOM (1109-1210))
82111-47E00	Wire, Engine Room Main	Wiring & Clamp ([09.2011 - 10.2012] ENGINE ROOM (1109-1210))
82111-47E10	Wire, Engine Room Main	Wiring & Clamp ([09.2011 - 10.2012] ENGINE ROOM (1109-1210))
82111-47M60	Wire, Engine Room Main	Wiring & Clamp ([09.2011 - 10.2012] ENGINE ROOM (1109-1210))
82111-47M70	Wire, Engine Room Main	Wiring & Clamp ([09.2011 - 10.2012] ENGINE ROOM (1109-1210))
82111-47N30	Wire, Engine Room Main	Wiring & Clamp ([09.2011 - 10.2012] ENGINE ROOM (1109-1210))
82111-47N60	Wire, Engine Room Main	Wiring & Clamp ([09.2011 - 10.2012] ENGINE ROOM (1109-1210))
82111-47N70	Wire, Engine Room Main	Wiring & Clamp ([09.2011 - 10.2012] ENGINE ROOM (1109-1210))
82111-47S80	Wire, Engine Room Main	Wiring & Clamp ([09.2011 - 10.2012] ENGINE ROOM (1109-1210))
82111-47S90	Wire, Engine Room Main	Wiring & Clamp ([09.2011 - 10.2012] ENGINE ROOM (1109-1210))
82111-47T80	Wire, Engine Room Main	Wiring & Clamp ([09.2011 - 10.2012] ENGINE ROOM (1109-1210))
82111-47T90	Wire, Engine Room Main	Wiring & Clamp ([09.2011 - 10.2012] ENGINE ROOM (1109-1210))
82111-47U30	Wire, Engine Room Main	Wiring & Clamp ([09.2011 - 10.2012] ENGINE ROOM (1109-1210))
82111-47U60	Wire, Engine Room Main	Wiring & Clamp ([09.2011 - 10.2012] ENGINE ROOM (1109-1210))
82111-47U70	Wire, Engine Room Main	Wiring & Clamp ([09.2011 - 10.2012] ENGINE ROOM (1109-1210))
82112-47030	Wire, Engine Room, No.2	Wiring & Clamp ([09.2011 - 10.2012] ENGINE ROOM (1109-1210))
82113-47060	Wire, Engine Room, No.3	Wiring & Clamp ([09.2011 - 10.2012] ENGINE ROOM (1109-1210))
82113-47070	Wire, Engine Room, No.3	Wiring & Clamp ([09.2011 - 10.2012] ENGINE ROOM (1109-1210))
82113-47080	Wire, Engine Room, No.3	Wiring & Clamp ([09.2011 - 10.2012] ENGINE ROOM (1109-1210))
82113-47090	Wire, Engine Room, No.3	Wiring & Clamp ([09.2011 - 10.2012] ENGINE ROOM (1109-1210))
82113-47240	Wire, Engine Room, No.3	Wiring & Clamp ([09.2011 - 10.2012] ENGINE ROOM (1109-1210))
82113-47280	Wire, Engine Room, No.3	Wiring & Clamp ([09.2011 - 10.2012] ENGINE ROOM (1109-1210))
82113-47300	Wire, Engine Room, No.3	Wiring & Clamp ([09.2011 - 10.2012] ENGINE ROOM (1109-1210))
82666-47530	Holder, Connector No.2	Wiring & Clamp ([09.2011 - 10.2012] ENGINE ROOM (1109-1210))
82712-47270	Support, Wiring Harness	Wiring & Clamp ([09.2011 - 10.2012] ENGINE ROOM (1109-1210))
82712-47330	Hose, Suction	Wiring & Clamp ([09.2011 - 10.2012] ENGINE ROOM (1109-1210))
82815-47390	Cover, Wiring Harness Protector	Wiring & Clamp ([09.2011 - 10.2012] ENGINE ROOM (1109-1210))
82815-47560	Cover, Wiring Harness Protector No.5	Wiring & Clamp ([09.2011 - 10.2012] ENGINE ROOM (1109-1210))
82815-47600	Cover, Wiring Harness Protector - WIRING HARNESS PROTECTOR, NO.9	Wiring & Clamp ([09.2011 - 10.2012] ENGINE ROOM (1109-1210))
82815-47610	Cover, Wiring Harness Protector, No.7 - WIRING HARNESS PROTECTOR, NO.8	Wiring & Clamp ([09.2011 - 10.2012] ENGINE ROOM (1109-1210))
82815-47620	Cover, Wiring Harness Protector, No.8 - WIRING HARNESS PROTECTOR, NO.1	Wiring & Clamp ([09.2011 - 10.2012] ENGINE ROOM (1109-1210))
82817-47480	Protector, Wiring Harness, No.3	Wiring & Clamp ([09.2011 - 10.2012] ENGINE ROOM (1109-1210))
82817-47620	Protector, Wiring Harness, No.1	Wiring & Clamp ([09.2011 - 10.2012] ENGINE ROOM (1109-1210))
82817-47800	Protector, Wiring Harness, No.3	Wiring & Clamp ([09.2011 - 10.2012] ENGINE ROOM (1109-1210))
82817-47850	Protector, Wiring Harness, No.5 - WIRING HARNESS, NO.7	Wiring & Clamp ([09.2011 - 10.2012] ENGINE ROOM (1109-1210))
82817-47860	Protector, Wiring Harness, No.2 - WIRING HARNESS, NO.6	Wiring & Clamp ([09.2011 - 10.2012] ENGINE ROOM (1109-1210))
82817-47870	Protector, Wiring Harness, No.1	Wiring & Clamp ([09.2011 - 10.2012] ENGINE ROOM (1109-1210))
82824-73040	Connector, Wiring Harness	Wiring & Clamp ([09.2011 - 10.2012] ENGINE ROOM (1109-1210))
82824-73050	Connector, Wiring Harness	Wiring & Clamp ([09.2011 - 10.2012] ENGINE ROOM (1109-1210))
90105-06331	New Genuine Part	Wiring & Clamp ([09.2011 - 10.2012] ENGINE ROOM (1109-1210))
90119-06915	BOLT W-WASHER	Wiring & Clamp ([09.2011 - 10.2012] ENGINE ROOM (1109-1210))
94151-80600	Nut, Cap(For Cylinder Head Cover)	Wiring & Clamp ([09.2011 - 10.2012] ENGINE ROOM (1109-1210))
