Search › Model › ZVW41

ZVW41

Toyota PRIUS · 2011 · 4,573 parts · 192 categories

← Back to categories

4,573 items

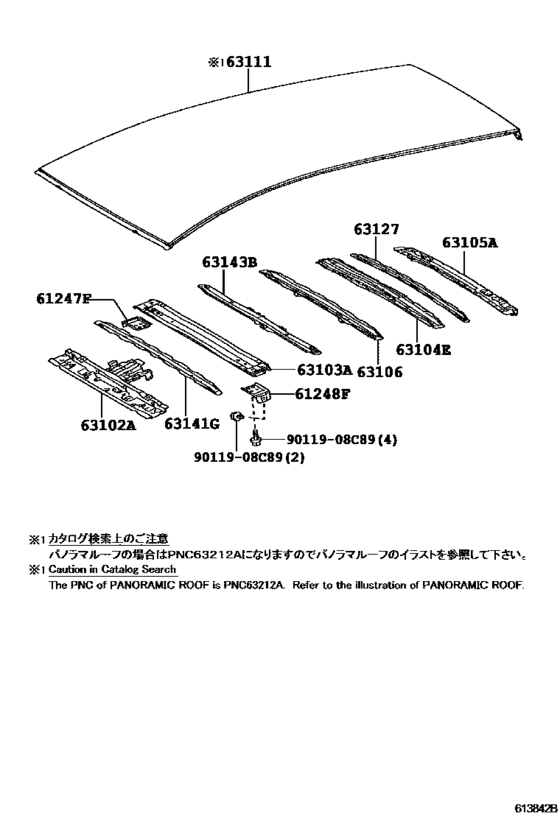

Roof Panel & Back Window Glass ([09.2011 - ] STANDARD ROOF (1109- )) 16

#	OEM	Part name
61247	61247-47030	Reinforcement, Roof Side Rail, Inner
61247	61247-47040	Reinforcement, Roof Side Rail, Inner
63102	63102-47060	Panel Sub-Assy, Windshield Header
63102	63102-47901	Panel Sub-Assy, Windshield Header
63103	63103-47020	Reinforcement Sub-Assy, Roof Panel
63103	63103-47030	Reinforcement Sub-Assy, Roof Panel
63104	63104-47010	Reinforcement Sub-Assy, Roof Panel, Rear
63104	63104-47020	Reinforcement Sub-Assy, Roof Panel, Rear
63105	63105-47030	Frame Sub-Assy, Back Door Opening
63106	63106-47010	Reinforcement Sub-Assy, Roof Panel, No.4
63111	63111-47050	Panel, Roof
63127	63127-47020	Reinforcement, Roof Panel, No.5
63127	63127-47030	Reinforcement, Roof Panel, No.5
63141	63123-47010	Reinforcement, Roof Panel, No.1
63143	63143-47040	Reinforcement, Roof Panel, No.3
9011908	90119-08C89	BOLT WWASHER

OEM	Part name	Category
61247-47030	Reinforcement, Roof Side Rail, Inner	Roof Panel & Back Window Glass ([09.2011 - ] STANDARD ROOF (1109- ))
61247-47040	Reinforcement, Roof Side Rail, Inner	Roof Panel & Back Window Glass ([09.2011 - ] STANDARD ROOF (1109- ))
63102-47060	Panel Sub-Assy, Windshield Header	Roof Panel & Back Window Glass ([09.2011 - ] STANDARD ROOF (1109- ))
63102-47901	Panel Sub-Assy, Windshield Header	Roof Panel & Back Window Glass ([09.2011 - ] STANDARD ROOF (1109- ))
63103-47020	Reinforcement Sub-Assy, Roof Panel	Roof Panel & Back Window Glass ([09.2011 - ] STANDARD ROOF (1109- ))
63103-47030	Reinforcement Sub-Assy, Roof Panel	Roof Panel & Back Window Glass ([09.2011 - ] STANDARD ROOF (1109- ))
63104-47010	Reinforcement Sub-Assy, Roof Panel, Rear	Roof Panel & Back Window Glass ([09.2011 - ] STANDARD ROOF (1109- ))
63104-47020	Reinforcement Sub-Assy, Roof Panel, Rear	Roof Panel & Back Window Glass ([09.2011 - ] STANDARD ROOF (1109- ))
63105-47030	Frame Sub-Assy, Back Door Opening	Roof Panel & Back Window Glass ([09.2011 - ] STANDARD ROOF (1109- ))
63106-47010	Reinforcement Sub-Assy, Roof Panel, No.4	Roof Panel & Back Window Glass ([09.2011 - ] STANDARD ROOF (1109- ))
63111-47050	Panel, Roof	Roof Panel & Back Window Glass ([09.2011 - ] STANDARD ROOF (1109- ))
63123-47010	Reinforcement, Roof Panel, No.1	Roof Panel & Back Window Glass ([09.2011 - ] STANDARD ROOF (1109- ))
63127-47020	Reinforcement, Roof Panel, No.5	Roof Panel & Back Window Glass ([09.2011 - ] STANDARD ROOF (1109- ))
63127-47030	Reinforcement, Roof Panel, No.5	Roof Panel & Back Window Glass ([09.2011 - ] STANDARD ROOF (1109- ))
63143-47040	Reinforcement, Roof Panel, No.3	Roof Panel & Back Window Glass ([09.2011 - ] STANDARD ROOF (1109- ))
90119-08C89	BOLT WWASHER	Roof Panel & Back Window Glass ([09.2011 - ] STANDARD ROOF (1109- ))

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 192
Collected: 2026-08-02
