ZVW41

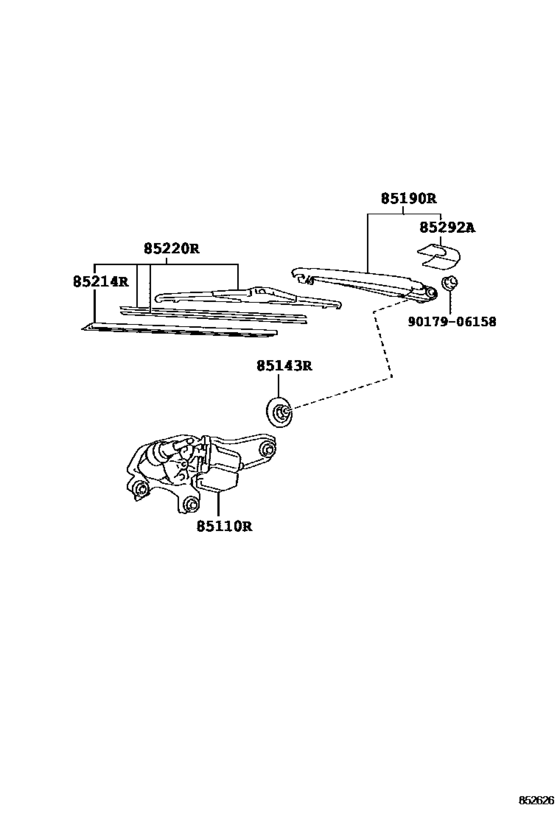

Rear Wiper ([09.2011 - ] (1109- )) 7
| # | OEM | Part name |
|---|---|---|
| 85110 | 85130-47080 | Motor Assy, Rear Wiper |
| 85143 | 85143-72010 | Grommet, Rear Wiper Motor |
| 85190 | 85241-42070 | Arm Assy, Rear Wiper |
| 85214 | 85214-12310 | Rubber, Rear Wiper |
| 85220 | 85242-12090 | Blade Assy, Rear Wiper |
| 85292 | 85292-42020 | Cap, Rear Wiper Arm Head |
| 9017906158 | 90179-06158 | Nut, Rear Wiper Link Pivot, No.2 |
| OEM | Part name | Category |
|---|---|---|
| 85130-47080 | Motor Assy, Rear Wiper | Rear Wiper ([09.2011 - ] (1109- )) |
| 85143-72010 | Grommet, Rear Wiper Motor | Rear Wiper ([09.2011 - ] (1109- )) |
| 85214-12310 | Rubber, Rear Wiper | Rear Wiper ([09.2011 - ] (1109- )) |
| 85241-42070 | Arm Assy, Rear Wiper | Rear Wiper ([09.2011 - ] (1109- )) |
| 85242-12090 | Blade Assy, Rear Wiper | Rear Wiper ([09.2011 - ] (1109- )) |
| 85292-42020 | Cap, Rear Wiper Arm Head | Rear Wiper ([09.2011 - ] (1109- )) |
| 90179-06158 | Nut, Rear Wiper Link Pivot, No.2 | Rear Wiper ([09.2011 - ] (1109- )) |
