ZVW41

Toyota PRIUS · 2011 · 4,573 parts · 192 categories

4,573 items

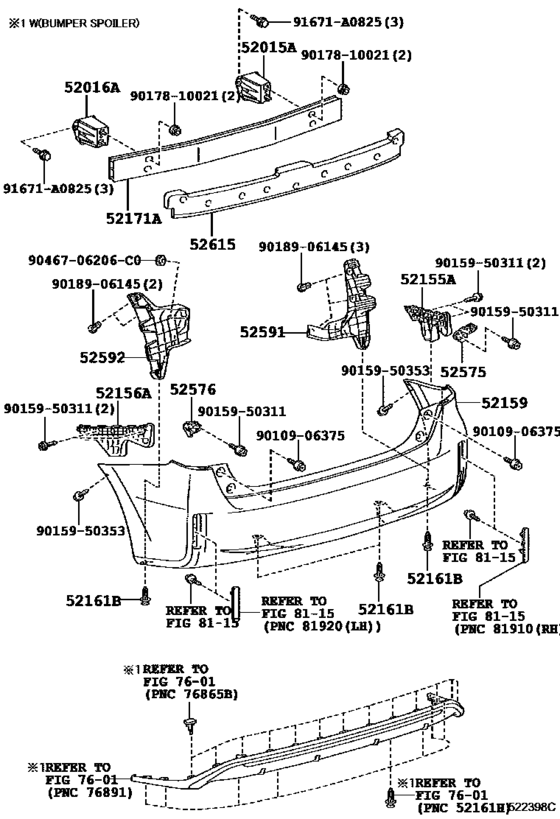

Rear Bumper & Bumper Stay ([09.2011 - ] (1109- )) 25

#	OEM	Part name
52015	52015-47060	Arm Sub-Assy, Rear Bumper, Rh
52016	52016-47040	Arm Sub-Assy, Rear Bumper, Lh
52155	52155-47010	Support, Rear Bumper Side, Rh
52156	52156-47010	Support, Rear Bumper Side, Lh
52159	52159-47909	Cover, Rear Bumper
52159	52159-47912	Cover, Rear Bumper
52161	52161-16010	Clip
52161	52161-0K040	Clip
52161	52161-02020	Clip
52171	52171-47070	Reinforcement, Rear Bumper, No.1
52171	52023-47020	Reinforcement, Rear Bumper, No.1
52575	52575-47030	Retainer, Rear Bumper Side, Rh
52576	52576-47030	Retainer, Rear Bumper Side, Lh
52591	52591-47030	Seal, Rear Bumper Side, Rh
52592	52592-47030	Seal, Rear Bumper Side, Lh
52615	52615-47060	Absorber, Rear Bumper Energy
52615	52615-47080	Absorber, Rear Bumper Energy
91671	91671-A0825	BOLT FLANGE
9010906375	90109-06375	BOLT
9015950311	90159-50311	SCREW
9015950311	90159-A0034	SCREW WWASHER
9015950353	90159-50353	SCREW, W-WASHER
9017810021	90178-10021	NUT FLANGE
9018906145	90189-06145	GROMMET SCREW
9046706206	90467-06206-C0	Clip, Rear Bumper Side

OEM	Part name	Category
52015-47060	Arm Sub-Assy, Rear Bumper, Rh	Rear Bumper & Bumper Stay ([09.2011 - ] (1109- ))
52016-47040	Arm Sub-Assy, Rear Bumper, Lh	Rear Bumper & Bumper Stay ([09.2011 - ] (1109- ))
52023-47020	Reinforcement, Rear Bumper, No.1	Rear Bumper & Bumper Stay ([09.2011 - ] (1109- ))
52155-47010	Support, Rear Bumper Side, Rh	Rear Bumper & Bumper Stay ([09.2011 - ] (1109- ))
52156-47010	Support, Rear Bumper Side, Lh	Rear Bumper & Bumper Stay ([09.2011 - ] (1109- ))
52159-47909	Cover, Rear Bumper	Rear Bumper & Bumper Stay ([09.2011 - ] (1109- ))
52159-47912	Cover, Rear Bumper	Rear Bumper & Bumper Stay ([09.2011 - ] (1109- ))
52161-02020	Clip	Rear Bumper & Bumper Stay ([09.2011 - ] (1109- ))
52161-0K040	Clip	Rear Bumper & Bumper Stay ([09.2011 - ] (1109- ))
52161-16010	Clip	Rear Bumper & Bumper Stay ([09.2011 - ] (1109- ))
52171-47070	Reinforcement, Rear Bumper, No.1	Rear Bumper & Bumper Stay ([09.2011 - ] (1109- ))
52575-47030	Retainer, Rear Bumper Side, Rh	Rear Bumper & Bumper Stay ([09.2011 - ] (1109- ))
52576-47030	Retainer, Rear Bumper Side, Lh	Rear Bumper & Bumper Stay ([09.2011 - ] (1109- ))
52591-47030	Seal, Rear Bumper Side, Rh	Rear Bumper & Bumper Stay ([09.2011 - ] (1109- ))
52592-47030	Seal, Rear Bumper Side, Lh	Rear Bumper & Bumper Stay ([09.2011 - ] (1109- ))
52615-47060	Absorber, Rear Bumper Energy	Rear Bumper & Bumper Stay ([09.2011 - ] (1109- ))
52615-47080	Absorber, Rear Bumper Energy	Rear Bumper & Bumper Stay ([09.2011 - ] (1109- ))
90109-06375	BOLT	Rear Bumper & Bumper Stay ([09.2011 - ] (1109- ))
90159-50311	SCREW	Rear Bumper & Bumper Stay ([09.2011 - ] (1109- ))
90159-50353	SCREW, W-WASHER	Rear Bumper & Bumper Stay ([09.2011 - ] (1109- ))
90159-A0034	SCREW WWASHER	Rear Bumper & Bumper Stay ([09.2011 - ] (1109- ))
90178-10021	NUT FLANGE	Rear Bumper & Bumper Stay ([09.2011 - ] (1109- ))
90189-06145	GROMMET SCREW	Rear Bumper & Bumper Stay ([09.2011 - ] (1109- ))
90467-06206-C0	Clip, Rear Bumper Side	Rear Bumper & Bumper Stay ([09.2011 - ] (1109- ))
91671-A0825	BOLT FLANGE	Rear Bumper & Bumper Stay ([09.2011 - ] (1109- ))
