ZVW41

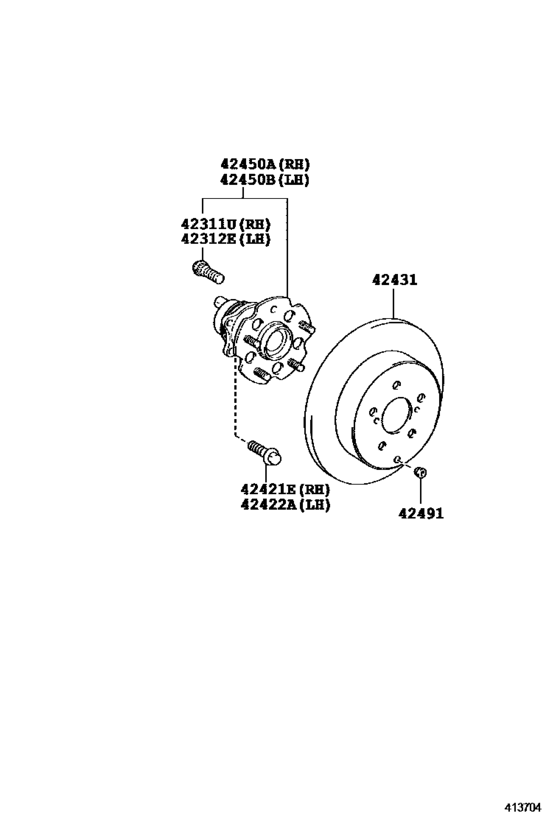

Rear Axle Shaft & Hub ([09.2011 - ] (1109- )) 6
| # | OEM | Part name |
|---|---|---|
| 42311 | 90942-02049 | Bolt, Hub |
| 42311 | 90942-02082 | Bolt, Hub |
| 42421 | 90105-12350 | Bolt (For Rear Axle Bearing Case Rh) |
| 42431 | 42431-47080 | Disc, Rear |
| 42450 | 42450-47050 | Hub & Bearing Assy, Rear Axle, Rh |
| 42491 | 47491-22020 | Plug, Shoe Adjusting Hole (For Parking Brake) |
| OEM | Part name | Category |
|---|---|---|
| 42431-47080 | Disc, Rear | Rear Axle Shaft & Hub ([09.2011 - ] (1109- )) |
| 42450-47050 | Hub & Bearing Assy, Rear Axle, Rh | Rear Axle Shaft & Hub ([09.2011 - ] (1109- )) |
| 47491-22020 | Plug, Shoe Adjusting Hole (For Parking Brake) | Rear Axle Shaft & Hub ([09.2011 - ] (1109- )) |
| 90105-12350 | Bolt (For Rear Axle Bearing Case Rh) | Rear Axle Shaft & Hub ([09.2011 - ] (1109- )) |
| 90942-02049 | Bolt, Hub | Rear Axle Shaft & Hub ([09.2011 - ] (1109- )) |
| 90942-02082 | Bolt, Hub | Rear Axle Shaft & Hub ([09.2011 - ] (1109- )) |
