Search › Model › ZVW41

ZVW41

Toyota PRIUS · 2011 · 4,573 parts · 192 categories

4,573 items

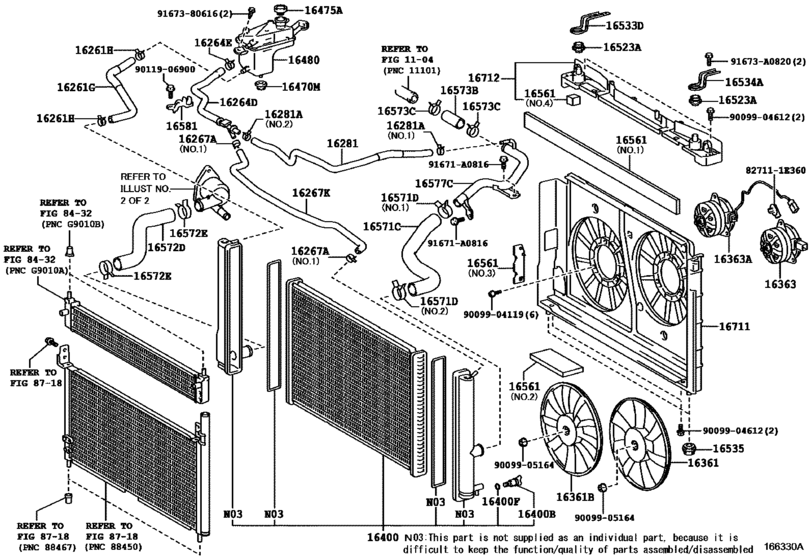

Radiator & Water Outlet ([05.2016 - ] (1605- )) 54

#	OEM	Part name
0	82711-1E360	Clamp, Wiring Harness
16261	16261-37070	Hose, Water By-Pass, No.1
16261	16261-37170	Hose, Water By-Pass, No.1
16261	96136-42201	Clip(For Ventilation Hose No.2)
16261	96136-42501	Clip(For Ventilation Hose)
16264	16264-37060	Hose, Water By-Pass, No.2
16264	16264-37080	Hose, Water By-Pass, No.2
16264	16264-37170	Hose, Water By-Pass, No.2
16264	96136-42101	Clip, Hose(For Radiator Hose Sub-Assy)
16267	90467-15022	Clip Or Clamp(For Ventilation Hose)
16267	96136-41901	Clip Or Clamp(For Ventilation Hose)
16267	16267-37030	Hose, Water By-Pass, No.3
16267	16267-37110	Hose, Water By-Pass, No.3
16281	16281-37030	Hose, Water By-Pass, No.4
16281	96137-41701	Clamp Or Clip, Hose(For Water By-Pass Hose)
16361	16361-37010	Fan
16361	16361-37020	Fan, No.2
16363	16363-37020	Motor, Cooling Fan - COOLING FAN, NO.2
16363	16363-37050	Motor, Cooling Fan
16400	16400-37260	Radiator Assy
16400	16400-37290	Radiator Assy
16400	16417-21280	Cock Sub-Assy, Radiator Drain
16400	16492-21050	Ring, O(For Oil Cooler Drain Cock)
16470	90480-18010	Grommet, Radiator Reserve Tank Hose
16475	16475-28140	Cap Sub-Assy, Radiator Reserve Tank
16475	16475-37010	Cap Sub-Assy, Radiator Reserve Tank
16475	16475-37011	Cap Sub-Assy, Radiator Reserve Tank
16480	16480-28080	Tank Assy, Radiator Reserve - RADIATOR W/O CAP
16523	16523-21050	Cushion, Radiator Support
16533	16533-28051	Support, Radiator, Rh
16534	16534-37010	Support, Radiator, Lh
16535	16535-20030	Support, Radiator, Lower
16561	16561-37031	Seal, Radiator To Support, No.1
16561	16561-37040	Seal, Radiator To Support, No.1
16561	16561-37050	Seal, Radiator To Support, No.1
16561	16561-37070	Seal, Radiator To Support, No.1
16571	16571-37140	Hose, Radiator, No.1
16571	96136-43901	Clamp Or Clip, Hose(For Radiator Inlet)
16571	96136-44301	Clamp Or Clip, Hose(For Radiator Inlet)
16572	16572-37120	Hose, Radiator, No.2
16573	16573-37050	Hose, Radiator, No.3
16577	16577-37020	Pipe, Radiator
16581	16581-37140	Clamp, Hose(For Water Hose)
16711	16711-37040	Shroud, Fan
16711	16711-37080	Shroud, Fan
16712	16712-37050	Shroud, Fan, No.2
91671	91671-A0816	Bolt, Radiator Side Support Plate
91671	91651-B0820	Bolt, Radiator Side Support Plate
91673	91673-A0820	BOLT FLANGE
9009904119	90099-04119	BOLT WASHER HEAD
9009904612	90099-04612	Bolt
9009905164	90099-05164	Nut
9011906900	90119-06900	BOLT WWASHER
9167380616	91673-80616	Bolt, W/washer

OEM	Part name	Category
16261-37070	Hose, Water By-Pass, No.1	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16261-37170	Hose, Water By-Pass, No.1	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16264-37060	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16264-37080	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16264-37170	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16267-37030	Hose, Water By-Pass, No.3	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16267-37110	Hose, Water By-Pass, No.3	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16281-37030	Hose, Water By-Pass, No.4	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16361-37010	Fan	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16361-37020	Fan, No.2	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16363-37020	Motor, Cooling Fan - COOLING FAN, NO.2	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16363-37050	Motor, Cooling Fan	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16400-37260	Radiator Assy	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16400-37290	Radiator Assy	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16417-21280	Cock Sub-Assy, Radiator Drain	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16475-28140	Cap Sub-Assy, Radiator Reserve Tank	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16475-37010	Cap Sub-Assy, Radiator Reserve Tank	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16475-37011	Cap Sub-Assy, Radiator Reserve Tank	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16480-28080	Tank Assy, Radiator Reserve - RADIATOR W/O CAP	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16492-21050	Ring, O(For Oil Cooler Drain Cock)	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16523-21050	Cushion, Radiator Support	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16533-28051	Support, Radiator, Rh	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16534-37010	Support, Radiator, Lh	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16535-20030	Support, Radiator, Lower	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16561-37031	Seal, Radiator To Support, No.1	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16561-37040	Seal, Radiator To Support, No.1	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16561-37050	Seal, Radiator To Support, No.1	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16561-37070	Seal, Radiator To Support, No.1	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16571-37140	Hose, Radiator, No.1	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16572-37120	Hose, Radiator, No.2	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16573-37050	Hose, Radiator, No.3	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16577-37020	Pipe, Radiator	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16581-37140	Clamp, Hose(For Water Hose)	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16711-37040	Shroud, Fan	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16711-37080	Shroud, Fan	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16712-37050	Shroud, Fan, No.2	Radiator & Water Outlet ([05.2016 - ] (1605- ))
82711-1E360	Clamp, Wiring Harness	Radiator & Water Outlet ([05.2016 - ] (1605- ))
90099-04119	BOLT WASHER HEAD	Radiator & Water Outlet ([05.2016 - ] (1605- ))
90099-04612	Bolt	Radiator & Water Outlet ([05.2016 - ] (1605- ))
90099-05164	Nut	Radiator & Water Outlet ([05.2016 - ] (1605- ))
90119-06900	BOLT WWASHER	Radiator & Water Outlet ([05.2016 - ] (1605- ))
90467-15022	Clip Or Clamp(For Ventilation Hose)	Radiator & Water Outlet ([05.2016 - ] (1605- ))
90480-18010	Grommet, Radiator Reserve Tank Hose	Radiator & Water Outlet ([05.2016 - ] (1605- ))
91651-B0820	Bolt, Radiator Side Support Plate	Radiator & Water Outlet ([05.2016 - ] (1605- ))
91671-A0816	Bolt, Radiator Side Support Plate	Radiator & Water Outlet ([05.2016 - ] (1605- ))
91673-80616	Bolt, W/washer	Radiator & Water Outlet ([05.2016 - ] (1605- ))
91673-A0820	BOLT FLANGE	Radiator & Water Outlet ([05.2016 - ] (1605- ))
96136-41901	Clip Or Clamp(For Ventilation Hose)	Radiator & Water Outlet ([05.2016 - ] (1605- ))
96136-42101	Clip, Hose(For Radiator Hose Sub-Assy)	Radiator & Water Outlet ([05.2016 - ] (1605- ))
96136-42201	Clip(For Ventilation Hose No.2)	Radiator & Water Outlet ([05.2016 - ] (1605- ))
96136-42501	Clip(For Ventilation Hose)	Radiator & Water Outlet ([05.2016 - ] (1605- ))
96136-43901	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([05.2016 - ] (1605- ))
96136-44301	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([05.2016 - ] (1605- ))
96137-41701	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([05.2016 - ] (1605- ))
