Search › Model › ZVW41
ZVW41

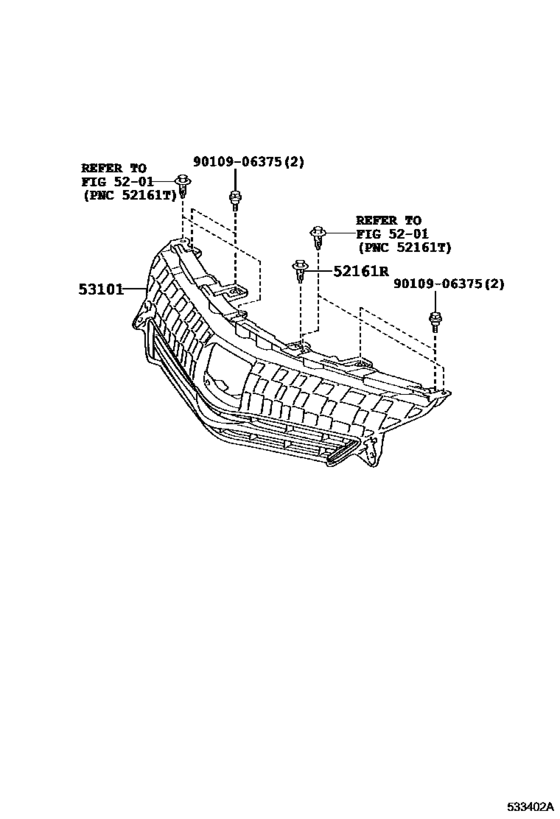

Radiator Grille ([09.2011 - 11.2014] (1109-1411)) 5
| # | OEM | Part name |
|---|---|---|
| 52161 | 52161-16010 | Clip |
| 52161 | 52161-0K040 | Clip |
| 52161 | 52161-02020 | Clip |
| 53101 | 53101-47010 | Grille Sub-Assy, Radiator |
| 9010906375 | 90109-06375 | BOLT |
| OEM | Part name | Category |
|---|---|---|
| 52161-02020 | Clip | Radiator Grille ([09.2011 - 11.2014] (1109-1411)) |
| 52161-0K040 | Clip | Radiator Grille ([09.2011 - 11.2014] (1109-1411)) |
| 52161-16010 | Clip | Radiator Grille ([09.2011 - 11.2014] (1109-1411)) |
| 53101-47010 | Grille Sub-Assy, Radiator | Radiator Grille ([09.2011 - 11.2014] (1109-1411)) |
| 90109-06375 | BOLT | Radiator Grille ([09.2011 - 11.2014] (1109-1411)) |
