Search › Model › ZVW41

ZVW41

Toyota PRIUS · 2011 · 4,573 parts · 192 categories

4,573 items

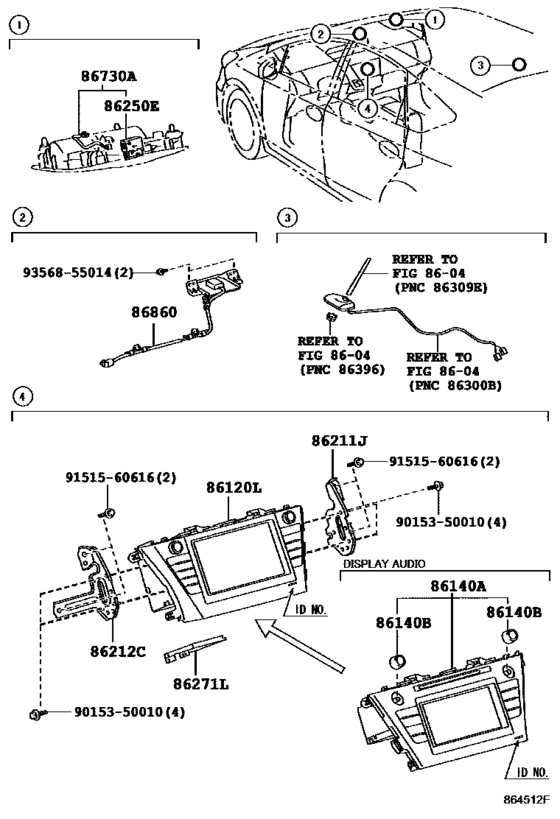

Navigation & Front Monitor Display ([09.2011 - 11.2014] (1109-1411)) 38

#	OEM	Part name
86120	86804-47040	Receiver Assy, Navigation
86120	86804-47240	Receiver Assy, Navigation
86120	86804-47241	Receiver Assy, Navigation
86120	86804-47260	Receiver Assy, Navigation
86120	86804-47261	Receiver Assy, Navigation
86120	86804-47300	Receiver Assy, Navigation
86120	86804-47320	Receiver Assy, Navigation
86120	86804-47030	Receiver Assy, Navigation
86120	86804-47230	Receiver Assy, Navigation
86120	86804-47231	Receiver Assy, Navigation
86120	86804-47250	Receiver Assy, Navigation
86120	86804-47251	Receiver Assy, Navigation
86120	86804-47290	Receiver Assy, Navigation
86120	86804-47310	Receiver Assy, Navigation
86140	86140-47010	Receiver Assy, Radio & Display
86140	86140-47040	Receiver Assy, Radio & Display
86140	86140-47210	Receiver Assy, Radio & Display
86140	86140-47211	Receiver Assy, Radio & Display
86140	86140-47450	Receiver Assy, Radio & Display
86140	90010-24150	Knob, Radio & Display Receiver Switch
86140	90010-24176	Knob, Navigation Receiver Switch
86140	86140-47020	Receiver Assy, Radio & Display
86211	86211-47080	Bracket, Radio Receiver, No.1
86211	86211-47120	Bracket, Radio Receiver, No.1
86212	86212-47080	Bracket, Radio Receiver, No.2
86212	86212-47120	Bracket, Radio Receiver, No.2
86250	86250-52030	Microphone Assy, Amplifier
86271	86271-47151	Hard Disc
86271	86271-47155	Hard Disc
86271	86271-47152	Hard Disc
86271	86271-47153	Hard Disc
86271	86271-47154	Hard Disc
86730	86730-47040	Microphone Assy, Telephone
86860	86860-47090	Antenna Assy, Navigation
86860	86860-47100	Antenna Assy, Navigation
9015350010	90153-50010	BOLT
9151560616	91515-60616	BOLT FLANGE
9356855014	93568-55014	Screw

OEM	Part name	Category
86140-47010	Receiver Assy, Radio & Display	Navigation & Front Monitor Display ([09.2011 - 11.2014] (1109-1411))
86140-47020	Receiver Assy, Radio & Display	Navigation & Front Monitor Display ([09.2011 - 11.2014] (1109-1411))
86140-47040	Receiver Assy, Radio & Display	Navigation & Front Monitor Display ([09.2011 - 11.2014] (1109-1411))
86140-47210	Receiver Assy, Radio & Display	Navigation & Front Monitor Display ([09.2011 - 11.2014] (1109-1411))
86140-47211	Receiver Assy, Radio & Display	Navigation & Front Monitor Display ([09.2011 - 11.2014] (1109-1411))
86140-47450	Receiver Assy, Radio & Display	Navigation & Front Monitor Display ([09.2011 - 11.2014] (1109-1411))
86211-47080	Bracket, Radio Receiver, No.1	Navigation & Front Monitor Display ([09.2011 - 11.2014] (1109-1411))
86211-47120	Bracket, Radio Receiver, No.1	Navigation & Front Monitor Display ([09.2011 - 11.2014] (1109-1411))
86212-47080	Bracket, Radio Receiver, No.2	Navigation & Front Monitor Display ([09.2011 - 11.2014] (1109-1411))
86212-47120	Bracket, Radio Receiver, No.2	Navigation & Front Monitor Display ([09.2011 - 11.2014] (1109-1411))
86250-52030	Microphone Assy, Amplifier	Navigation & Front Monitor Display ([09.2011 - 11.2014] (1109-1411))
86271-47151	Hard Disc	Navigation & Front Monitor Display ([09.2011 - 11.2014] (1109-1411))
86271-47152	Hard Disc	Navigation & Front Monitor Display ([09.2011 - 11.2014] (1109-1411))
86271-47153	Hard Disc	Navigation & Front Monitor Display ([09.2011 - 11.2014] (1109-1411))
86271-47154	Hard Disc	Navigation & Front Monitor Display ([09.2011 - 11.2014] (1109-1411))
86271-47155	Hard Disc	Navigation & Front Monitor Display ([09.2011 - 11.2014] (1109-1411))
86730-47040	Microphone Assy, Telephone	Navigation & Front Monitor Display ([09.2011 - 11.2014] (1109-1411))
86804-47030	Receiver Assy, Navigation	Navigation & Front Monitor Display ([09.2011 - 11.2014] (1109-1411))
86804-47040	Receiver Assy, Navigation	Navigation & Front Monitor Display ([09.2011 - 11.2014] (1109-1411))
86804-47230	Receiver Assy, Navigation	Navigation & Front Monitor Display ([09.2011 - 11.2014] (1109-1411))
86804-47231	Receiver Assy, Navigation	Navigation & Front Monitor Display ([09.2011 - 11.2014] (1109-1411))
86804-47240	Receiver Assy, Navigation	Navigation & Front Monitor Display ([09.2011 - 11.2014] (1109-1411))
86804-47241	Receiver Assy, Navigation	Navigation & Front Monitor Display ([09.2011 - 11.2014] (1109-1411))
86804-47250	Receiver Assy, Navigation	Navigation & Front Monitor Display ([09.2011 - 11.2014] (1109-1411))
86804-47251	Receiver Assy, Navigation	Navigation & Front Monitor Display ([09.2011 - 11.2014] (1109-1411))
86804-47260	Receiver Assy, Navigation	Navigation & Front Monitor Display ([09.2011 - 11.2014] (1109-1411))
86804-47261	Receiver Assy, Navigation	Navigation & Front Monitor Display ([09.2011 - 11.2014] (1109-1411))
86804-47290	Receiver Assy, Navigation	Navigation & Front Monitor Display ([09.2011 - 11.2014] (1109-1411))
86804-47300	Receiver Assy, Navigation	Navigation & Front Monitor Display ([09.2011 - 11.2014] (1109-1411))
86804-47310	Receiver Assy, Navigation	Navigation & Front Monitor Display ([09.2011 - 11.2014] (1109-1411))
86804-47320	Receiver Assy, Navigation	Navigation & Front Monitor Display ([09.2011 - 11.2014] (1109-1411))
86860-47090	Antenna Assy, Navigation	Navigation & Front Monitor Display ([09.2011 - 11.2014] (1109-1411))
86860-47100	Antenna Assy, Navigation	Navigation & Front Monitor Display ([09.2011 - 11.2014] (1109-1411))
90010-24150	Knob, Radio & Display Receiver Switch	Navigation & Front Monitor Display ([09.2011 - 11.2014] (1109-1411))
90010-24176	Knob, Navigation Receiver Switch	Navigation & Front Monitor Display ([09.2011 - 11.2014] (1109-1411))
90153-50010	BOLT	Navigation & Front Monitor Display ([09.2011 - 11.2014] (1109-1411))
91515-60616	BOLT FLANGE	Navigation & Front Monitor Display ([09.2011 - 11.2014] (1109-1411))
93568-55014	Screw	Navigation & Front Monitor Display ([09.2011 - 11.2014] (1109-1411))

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 192
Collected: 2026-08-02
