Search › Model › ZVW41

ZVW41

Toyota PRIUS · 2011 · 4,573 parts · 192 categories

← Back to categories

4,573 items

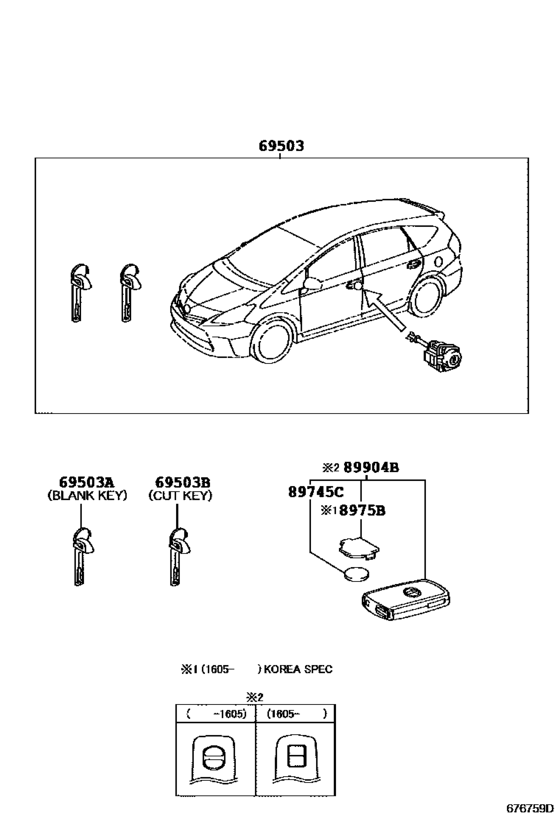

Lock Cylinder Set ([09.2011 - ] (1109- )) 14

#	OEM	Part name
69503	69005-47190	Cylinder Set, Lock
69503	69005-47270	Cylinder Set, Lock
69503	69515-33100	Key, Blank
69503	69515-52120	Key, Blank
69503	69515-33090	Key, Cut
69503	69515-52110	Key, Cut - for blank key →
89745	89745-45010	Battery, Transmitter
89745	89745-50020	Battery, Transmitter
89745	89745-52020	Battery, Transmitter
89745	89745-52030	Battery, Transmitter (CR1632)
89904	89904-47230	Transmitter Sub-Assy, Electrical Key
89904	89904-52290	Transmitter Sub-Assy, Electrical Key
89904	89904-47251	Transmitter Sub-Assy, Electrical Key
89904	89904-47520	Transmitter Sub-Assy, Electrical Key

OEM	Part name	Category
69005-47190	Cylinder Set, Lock	Lock Cylinder Set ([09.2011 - ] (1109- ))
69005-47270	Cylinder Set, Lock	Lock Cylinder Set ([09.2011 - ] (1109- ))
69515-33090	Key, Cut	Lock Cylinder Set ([09.2011 - ] (1109- ))
69515-33100	Key, Blank	Lock Cylinder Set ([09.2011 - ] (1109- ))
69515-52110	Key, Cut - for blank key →	Lock Cylinder Set ([09.2011 - ] (1109- ))
69515-52120	Key, Blank	Lock Cylinder Set ([09.2011 - ] (1109- ))
89745-45010	Battery, Transmitter	Lock Cylinder Set ([09.2011 - ] (1109- ))
89745-50020	Battery, Transmitter	Lock Cylinder Set ([09.2011 - ] (1109- ))
89745-52020	Battery, Transmitter	Lock Cylinder Set ([09.2011 - ] (1109- ))
89745-52030	Battery, Transmitter (CR1632)	Lock Cylinder Set ([09.2011 - ] (1109- ))
89904-47230	Transmitter Sub-Assy, Electrical Key	Lock Cylinder Set ([09.2011 - ] (1109- ))
89904-47251	Transmitter Sub-Assy, Electrical Key	Lock Cylinder Set ([09.2011 - ] (1109- ))
89904-47520	Transmitter Sub-Assy, Electrical Key	Lock Cylinder Set ([09.2011 - ] (1109- ))
89904-52290	Transmitter Sub-Assy, Electrical Key	Lock Cylinder Set ([09.2011 - ] (1109- ))

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 192
Collected: 2026-08-02
