Search › Model › ZVW41

ZVW41

Toyota PRIUS · 2011 · 4,573 parts · 192 categories

4,573 items

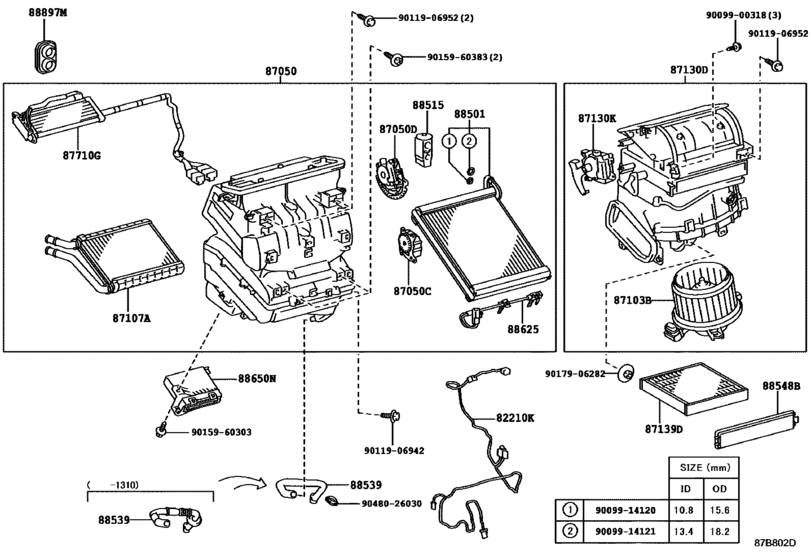

Heating & Air Conditioning - Cooler Unit ([09.2011 - ] (1109- )) 43

#	OEM	Part name
82210	82212-12010	Harness Assy, Air Conditioner
87050	87050-47150	Radiator Assy, Air Conditioner
87050	87106-12170	Damper Servo Sub-Assy, Air Conditioner Radiator, No.1
87050	87106-47170	Damper Servo Sub-Assy, Air Conditioner Radiator, No.1
87050	87106-42100	Damper Servo Sub-Assy, Air Conditioner Radiator, No.2
87050	87050-47230	Radiator Assy, Air Conditioner
87050	87106-42190	Damper Servo Sub-Assy, Air Conditioner Radiator, No.1
87103	87103-12080	Motor Sub-Assy, Blower W/fan
87107	87107-42170	Unit Sub-Assy, Heater Radiator
87130	87130-47140	Blower Assy
87130	87106-47130	Servo Sub-Assy, Damper(For Recirculation)
87130	87130-47230	Blower Assy
87130	87106-47160	Damper Servo Sub-Assy, Blower, No.1
87139	87139-50060	Filter, Clean Air (Charcoal)
87139	87139-50100	Clean Air Filter (Charcoal type)
87139	87139-52040	Filter, Clean Air
87710	87710-12020	Quick Heater Assy
88501	88501-47051	Evaporator Sub-Assy, Cooler, No.1
88501	88501-47060	Evaporator Sub-Assy, Cooler, No.1
88515	88515-47040	Valve, Cooler Expansion
88515	88515-12100	Valve, Cooler Expansion
88539	88539-12200	Hose, Cooler Unit Drain, No.1 - DRAIN COOLER
88539	88539-12230	Hose, Cooler Unit Drain, No.1
88548	88548-42020	Case, Air Filter
88625	88625-71010	Thermistor, Cooler, No.1
88625	88620-42010	Thermistor, Cooler, No.1
88650	88650-47280	Amplifier Assy, Air Conditioner
88650	88650-47282	Amplifier Assy, Air Conditioner
88650	88650-47281	Amplifier Assy, Air Conditioner
88650	88650-47283	Amplifier Assy, Air Conditioner
88650	88650-47284	Amplifier Assy, Air Conditioner
88650	88650-47285	Amplifier Assy, Air Conditioner
88897	87128-42010	Grommet (For Heater Pipe)
9009900318	90099-00318	New Genuine Part
9009914120	90099-14120	O-Ring, Cooler Evaporator No.1(Discharge)
9009914121	90099-14121	O-Ring, Cooler Evaporator No.1(Suction)
9011906942	90119-06942	BOLT WWASHER
9011906952	90119-06952	New Genuine Part
9015960303	90159-60303	SCREW
9015960383	90159-60383	SCREW WWASHER
9015960383	90159-A0010	SCREW WWASHER TAPP
9017906282	90179-06282	New Genuine Part
9048026030	90480-26030	Grommet (For Cooler Unit Drain Hose)

OEM	Part name	Category
82212-12010	Harness Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([09.2011 - ] (1109- ))
87050-47150	Radiator Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([09.2011 - ] (1109- ))
87050-47230	Radiator Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([09.2011 - ] (1109- ))
87103-12080	Motor Sub-Assy, Blower W/fan	Heating & Air Conditioning - Cooler Unit ([09.2011 - ] (1109- ))
87106-12170	Damper Servo Sub-Assy, Air Conditioner Radiator, No.1	Heating & Air Conditioning - Cooler Unit ([09.2011 - ] (1109- ))
87106-42100	Damper Servo Sub-Assy, Air Conditioner Radiator, No.2	Heating & Air Conditioning - Cooler Unit ([09.2011 - ] (1109- ))
87106-42190	Damper Servo Sub-Assy, Air Conditioner Radiator, No.1	Heating & Air Conditioning - Cooler Unit ([09.2011 - ] (1109- ))
87106-47130	Servo Sub-Assy, Damper(For Recirculation)	Heating & Air Conditioning - Cooler Unit ([09.2011 - ] (1109- ))
87106-47160	Damper Servo Sub-Assy, Blower, No.1	Heating & Air Conditioning - Cooler Unit ([09.2011 - ] (1109- ))
87106-47170	Damper Servo Sub-Assy, Air Conditioner Radiator, No.1	Heating & Air Conditioning - Cooler Unit ([09.2011 - ] (1109- ))
87107-42170	Unit Sub-Assy, Heater Radiator	Heating & Air Conditioning - Cooler Unit ([09.2011 - ] (1109- ))
87128-42010	Grommet (For Heater Pipe)	Heating & Air Conditioning - Cooler Unit ([09.2011 - ] (1109- ))
87130-47140	Blower Assy	Heating & Air Conditioning - Cooler Unit ([09.2011 - ] (1109- ))
87130-47230	Blower Assy	Heating & Air Conditioning - Cooler Unit ([09.2011 - ] (1109- ))
87139-50060	Filter, Clean Air (Charcoal)	Heating & Air Conditioning - Cooler Unit ([09.2011 - ] (1109- ))
87139-50100	Clean Air Filter (Charcoal type)	Heating & Air Conditioning - Cooler Unit ([09.2011 - ] (1109- ))
87139-52040	Filter, Clean Air	Heating & Air Conditioning - Cooler Unit ([09.2011 - ] (1109- ))
87710-12020	Quick Heater Assy	Heating & Air Conditioning - Cooler Unit ([09.2011 - ] (1109- ))
88501-47051	Evaporator Sub-Assy, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([09.2011 - ] (1109- ))
88501-47060	Evaporator Sub-Assy, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([09.2011 - ] (1109- ))
88515-12100	Valve, Cooler Expansion	Heating & Air Conditioning - Cooler Unit ([09.2011 - ] (1109- ))
88515-47040	Valve, Cooler Expansion	Heating & Air Conditioning - Cooler Unit ([09.2011 - ] (1109- ))
88539-12200	Hose, Cooler Unit Drain, No.1 - DRAIN COOLER	Heating & Air Conditioning - Cooler Unit ([09.2011 - ] (1109- ))
88539-12230	Hose, Cooler Unit Drain, No.1	Heating & Air Conditioning - Cooler Unit ([09.2011 - ] (1109- ))
88548-42020	Case, Air Filter	Heating & Air Conditioning - Cooler Unit ([09.2011 - ] (1109- ))
88620-42010	Thermistor, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([09.2011 - ] (1109- ))
88625-71010	Thermistor, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([09.2011 - ] (1109- ))
88650-47280	Amplifier Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([09.2011 - ] (1109- ))
88650-47281	Amplifier Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([09.2011 - ] (1109- ))
88650-47282	Amplifier Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([09.2011 - ] (1109- ))
88650-47283	Amplifier Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([09.2011 - ] (1109- ))
88650-47284	Amplifier Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([09.2011 - ] (1109- ))
88650-47285	Amplifier Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([09.2011 - ] (1109- ))
90099-00318	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([09.2011 - ] (1109- ))
90099-14120	O-Ring, Cooler Evaporator No.1(Discharge)	Heating & Air Conditioning - Cooler Unit ([09.2011 - ] (1109- ))
90099-14121	O-Ring, Cooler Evaporator No.1(Suction)	Heating & Air Conditioning - Cooler Unit ([09.2011 - ] (1109- ))
90119-06942	BOLT WWASHER	Heating & Air Conditioning - Cooler Unit ([09.2011 - ] (1109- ))
90119-06952	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([09.2011 - ] (1109- ))
90159-60303	SCREW	Heating & Air Conditioning - Cooler Unit ([09.2011 - ] (1109- ))
90159-60383	SCREW WWASHER	Heating & Air Conditioning - Cooler Unit ([09.2011 - ] (1109- ))
90159-A0010	SCREW WWASHER TAPP	Heating & Air Conditioning - Cooler Unit ([09.2011 - ] (1109- ))
90179-06282	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([09.2011 - ] (1109- ))
90480-26030	Grommet (For Cooler Unit Drain Hose)	Heating & Air Conditioning - Cooler Unit ([09.2011 - ] (1109- ))

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 192
Collected: 2026-08-02
