ZVW41

Toyota PRIUS · 2011 · 4,573 parts · 192 categories

← Back to categories

4,573 items

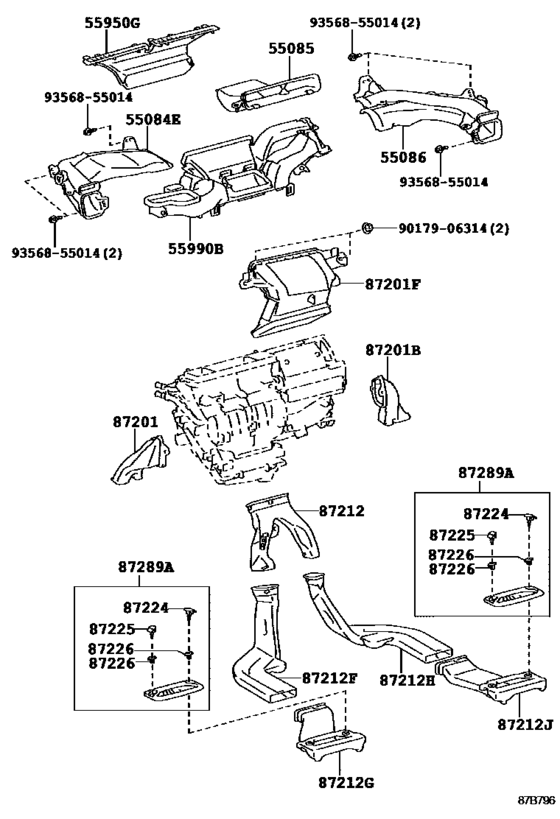

Heating & Air Conditioning - Control & Air Duct ([09.2011 - ] AIR DUCT (1109- )) 19

#	OEM	Part name
55084	55084-47090	Duct Sub-Assy, Heater To Register, No.1
55085	55085-47050	Duct Sub-Assy, Heater To Register, No.2
55086	55086-47020	Duct Sub-Assy, Heater To Register, No.3
55950	55950-47050	Nozzle Assy, Defroster
55990	55990-47080	Nozzle Assy, Defroster, Lower
87201	87211-12340	Duct Sub-Assy, Air, No.1 - AIR, NO.3
87201	87211-12350	Duct Sub-Assy, Air, No.1 - AIR, NO.2
87201	87220-47020	Duct Sub-Assy, Air, No.3
87212	87212-47030	Duct, Air, Rear No.1
87212	87213-47040	Duct, Air, Rear No.2
87212	87276-47020	Duct, Air, Rear No.3
87212	87213-47030	Duct, Air, Rear No.4
87212	87275-47020	Duct, Air, Rear No.5
87224	87224-47010	Guide, Air Duct, Rh
87225	87225-47010	Guide, Air Duct, Lh
87226	87226-47010	Adapter, Air Duct
87289	87289-47010	Bezel, Rear Heater Register, No.1
9017906314	90179-06314	NUT
9356855014	93568-55014	Screw

OEM	Part name	Category
55084-47090	Duct Sub-Assy, Heater To Register, No.1	Heating & Air Conditioning - Control & Air Duct ([09.2011 - ] AIR DUCT (1109- ))
55085-47050	Duct Sub-Assy, Heater To Register, No.2	Heating & Air Conditioning - Control & Air Duct ([09.2011 - ] AIR DUCT (1109- ))
55086-47020	Duct Sub-Assy, Heater To Register, No.3	Heating & Air Conditioning - Control & Air Duct ([09.2011 - ] AIR DUCT (1109- ))
55950-47050	Nozzle Assy, Defroster	Heating & Air Conditioning - Control & Air Duct ([09.2011 - ] AIR DUCT (1109- ))
55990-47080	Nozzle Assy, Defroster, Lower	Heating & Air Conditioning - Control & Air Duct ([09.2011 - ] AIR DUCT (1109- ))
87211-12340	Duct Sub-Assy, Air, No.1 - AIR, NO.3	Heating & Air Conditioning - Control & Air Duct ([09.2011 - ] AIR DUCT (1109- ))
87211-12350	Duct Sub-Assy, Air, No.1 - AIR, NO.2	Heating & Air Conditioning - Control & Air Duct ([09.2011 - ] AIR DUCT (1109- ))
87212-47030	Duct, Air, Rear No.1	Heating & Air Conditioning - Control & Air Duct ([09.2011 - ] AIR DUCT (1109- ))
87213-47030	Duct, Air, Rear No.4	Heating & Air Conditioning - Control & Air Duct ([09.2011 - ] AIR DUCT (1109- ))
87213-47040	Duct, Air, Rear No.2	Heating & Air Conditioning - Control & Air Duct ([09.2011 - ] AIR DUCT (1109- ))
87220-47020	Duct Sub-Assy, Air, No.3	Heating & Air Conditioning - Control & Air Duct ([09.2011 - ] AIR DUCT (1109- ))
87224-47010	Guide, Air Duct, Rh	Heating & Air Conditioning - Control & Air Duct ([09.2011 - ] AIR DUCT (1109- ))
87225-47010	Guide, Air Duct, Lh	Heating & Air Conditioning - Control & Air Duct ([09.2011 - ] AIR DUCT (1109- ))
87226-47010	Adapter, Air Duct	Heating & Air Conditioning - Control & Air Duct ([09.2011 - ] AIR DUCT (1109- ))
87275-47020	Duct, Air, Rear No.5	Heating & Air Conditioning - Control & Air Duct ([09.2011 - ] AIR DUCT (1109- ))
87276-47020	Duct, Air, Rear No.3	Heating & Air Conditioning - Control & Air Duct ([09.2011 - ] AIR DUCT (1109- ))
87289-47010	Bezel, Rear Heater Register, No.1	Heating & Air Conditioning - Control & Air Duct ([09.2011 - ] AIR DUCT (1109- ))
90179-06314	NUT	Heating & Air Conditioning - Control & Air Duct ([09.2011 - ] AIR DUCT (1109- ))
93568-55014	Screw	Heating & Air Conditioning - Control & Air Duct ([09.2011 - ] AIR DUCT (1109- ))
