Search › Model › ZVW41
ZVW41

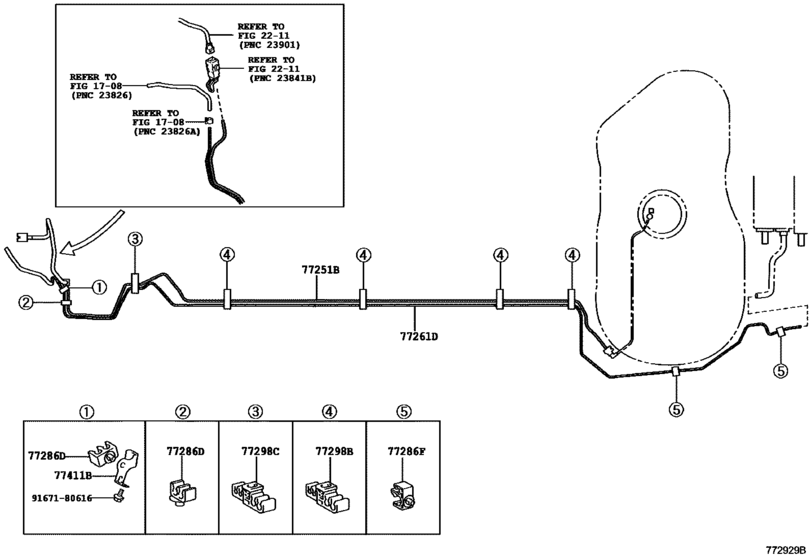

Fuel Tank & Tube ([09.2011 - ] FUEL TUBE (1109- )) 8
| # | OEM | Part name |
|---|---|---|
| 77251 | 77251-47090 | Tube, Fuel Main |
| 77261 | 77261-47100 | Tube, Fuel Tank To Canister |
| 77286 | 77286-75010 | Clamp, Fuel Tube, No.2 |
| 77286 | 77286-75020 | Clamp, Brake Tube, No.12 |
| 77298 | 77298-75020 | Clamp, Fuel Tube, No.4 |
| 77298 | 77298-75010 | Clamp, Fuel Tube, No.4 |
| 77411 | 77411-47010 | Support, Fuel Tube Grommet, No.1 |
| 9167180616 | 91671-80616 | BOLT FLANGE |
| OEM | Part name | Category |
|---|---|---|
| 77251-47090 | Tube, Fuel Main | Fuel Tank & Tube ([09.2011 - ] FUEL TUBE (1109- )) |
| 77261-47100 | Tube, Fuel Tank To Canister | Fuel Tank & Tube ([09.2011 - ] FUEL TUBE (1109- )) |
| 77286-75010 | Clamp, Fuel Tube, No.2 | Fuel Tank & Tube ([09.2011 - ] FUEL TUBE (1109- )) |
| 77286-75020 | Clamp, Brake Tube, No.12 | Fuel Tank & Tube ([09.2011 - ] FUEL TUBE (1109- )) |
| 77298-75010 | Clamp, Fuel Tube, No.4 | Fuel Tank & Tube ([09.2011 - ] FUEL TUBE (1109- )) |
| 77298-75020 | Clamp, Fuel Tube, No.4 | Fuel Tank & Tube ([09.2011 - ] FUEL TUBE (1109- )) |
| 77411-47010 | Support, Fuel Tube Grommet, No.1 | Fuel Tank & Tube ([09.2011 - ] FUEL TUBE (1109- )) |
| 91671-80616 | BOLT FLANGE | Fuel Tank & Tube ([09.2011 - ] FUEL TUBE (1109- )) |
