Search › Model › ZVW41

ZVW41

Toyota PRIUS · 2011 · 4,573 parts · 192 categories

4,573 items

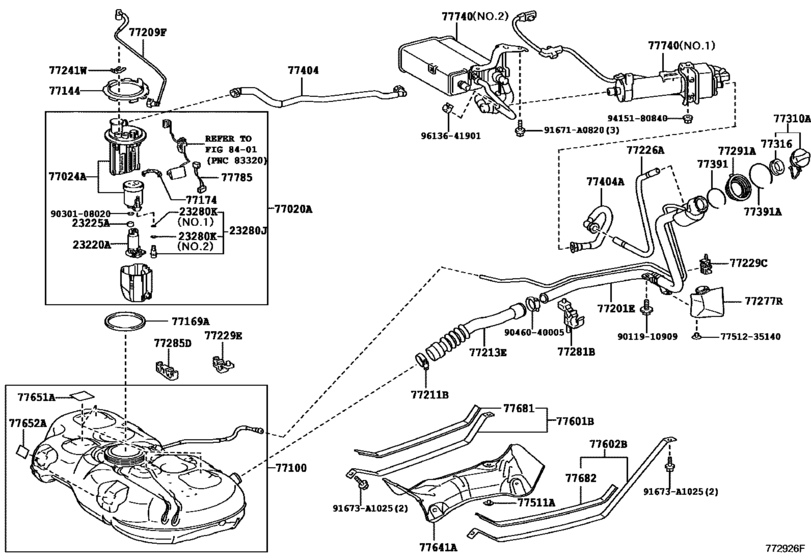

Fuel Tank & Tube ([09.2011 - ] FUEL TANK (1109- )) 58

#	OEM	Part name
23220	23220-21210	Pump Assy, Fuel W/filter
23220	23220-21211	Pump Assy, Fuel W/filter
23220	77785-12010	Harness, Fuel Pump
23220	77785-52101	Harness, Fuel Pump
23220	77785-52110	Harness, Fuel Pump
23225	23225-21020	Spacer, Fuel Pump
23280	23280-21010	Regulator Assy, Fuel Pressure
23280	90301-04013	Ring, O(For Fuel Pump)
23280	90301-15024	Ring, O(For Fuel Pump)
77020	77020-47110	Tube Assy, Fuel Suction W/pump & Gage
77020	77020-47111	Tube Assy, Fuel Suction W/pump & Gage
77024	77024-47060	Plate Sub-Assy, Fuel Suction
77100	77001-47160	Tank Assy, Fuel
77144	77144-47050	Retainer, Fuel Pump Gauge
77169	77169-47030	Gasket, Fuel Suction Tube Set
77174	77174-75010	Support, Fuel Suction, No.1
77201	77201-47161	Pipe Sub-Assy, Fuel Tank Filler
77209	77209-47090	Tube Sub-Assy, Fuel Tank Main
77211	90460-46005	Clamp (For Fuel Filler Pipe)
77213	77213-47090	Hose, Fuel Tank To Filler Pipe
77226	77226-47091	Tube, Fuel Tank Breather, No.6
77226	77226-47092	Tube, Fuel Tank Breather, No.6
77229	77229-47080	Clamp, Breather Tube
77229	77229-47100	Clamp, Breather Tube
77241	77241-33011	Clip, Tube Joint
77277	77277-47050	Protector, Fuel Tank Filler Pipe
77281	77281-47090	Clamp, Fuel Hose(For Rear Fuel Main)
77285	77285-47080	Clamp, Fuel Tube, No.1
77291	77291-47060	Shield, Fuel Tank Filler Pipe
77310	77300-47040	Cap Assy, Fuel Tank
77310	77300-53030	Cap Assy, Fuel Tank
77316	77316-75020	Gasket, Fuel Tank Cap
77391	77391-12020	Ring, Fuel Inlet Box
77391	77391-75010	Ring, Fuel Inlet Box
77404	77404-47110	Hose Sub-Assy, Fuel Tank Vent
77404	77404-47130	Hose Sub-Assy,fuel Tank Vent
77511	77512-35140	Bracket, Fuel Tank
77601	77601-47060	Band Sub-Assy, Fuel Tank, No.1 Rh
77601	77601-47110	Band Sub-Assy, Fuel Tank, No.1 Rh
77602	77602-47060	Band Sub-Assy, Fuel Tank, No.1 Lh
77602	77602-47110	Band Sub-Assy, Fuel Tank, No.1 Lh
77641	77641-47040	Protector, Fuel Tank, No.1
77651	77651-12070	Cushion, Fuel Tank, No.1
77652	77652-47010	Cushion, Fuel Tank, No.2
77681	77681-21010	Seat, Fuel Tank Band, Rh
77682	77681-28060	Seat, Fuel Tank Band, Rh
77682	77681-47030	Seat, Fuel Tank Band, Lh
77740	77730-47040	Canister Assy, Charcoal
77740	77740-47080	Canister Assy, Charcoal
77785	77785-12020	Harness, Fuel Pump
77785	77785-12021	Harness, Fuel Pump
91671	91671-A0820	New Genuine Part
91673	91673-A1025	New Genuine Part
9011910909	90119-10909	Bolt
9030108020	90301-08020	Ring, O(For Fuel Pump)
9046040005	90460-40005	Clamp (For Fuel Filler Pipe)
9415180840	94151-80840	NUT, FLANGE
9613641901	96136-41901	Clip Or Clamp(For Ventilation Hose)

OEM	Part name	Category
23220-21210	Pump Assy, Fuel W/filter	Fuel Tank & Tube ([09.2011 - ] FUEL TANK (1109- ))
23220-21211	Pump Assy, Fuel W/filter	Fuel Tank & Tube ([09.2011 - ] FUEL TANK (1109- ))
23225-21020	Spacer, Fuel Pump	Fuel Tank & Tube ([09.2011 - ] FUEL TANK (1109- ))
23280-21010	Regulator Assy, Fuel Pressure	Fuel Tank & Tube ([09.2011 - ] FUEL TANK (1109- ))
77001-47160	Tank Assy, Fuel	Fuel Tank & Tube ([09.2011 - ] FUEL TANK (1109- ))
77020-47110	Tube Assy, Fuel Suction W/pump & Gage	Fuel Tank & Tube ([09.2011 - ] FUEL TANK (1109- ))
77020-47111	Tube Assy, Fuel Suction W/pump & Gage	Fuel Tank & Tube ([09.2011 - ] FUEL TANK (1109- ))
77024-47060	Plate Sub-Assy, Fuel Suction	Fuel Tank & Tube ([09.2011 - ] FUEL TANK (1109- ))
77144-47050	Retainer, Fuel Pump Gauge	Fuel Tank & Tube ([09.2011 - ] FUEL TANK (1109- ))
77169-47030	Gasket, Fuel Suction Tube Set	Fuel Tank & Tube ([09.2011 - ] FUEL TANK (1109- ))
77174-75010	Support, Fuel Suction, No.1	Fuel Tank & Tube ([09.2011 - ] FUEL TANK (1109- ))
77201-47161	Pipe Sub-Assy, Fuel Tank Filler	Fuel Tank & Tube ([09.2011 - ] FUEL TANK (1109- ))
77209-47090	Tube Sub-Assy, Fuel Tank Main	Fuel Tank & Tube ([09.2011 - ] FUEL TANK (1109- ))
77213-47090	Hose, Fuel Tank To Filler Pipe	Fuel Tank & Tube ([09.2011 - ] FUEL TANK (1109- ))
77226-47091	Tube, Fuel Tank Breather, No.6	Fuel Tank & Tube ([09.2011 - ] FUEL TANK (1109- ))
77226-47092	Tube, Fuel Tank Breather, No.6	Fuel Tank & Tube ([09.2011 - ] FUEL TANK (1109- ))
77229-47080	Clamp, Breather Tube	Fuel Tank & Tube ([09.2011 - ] FUEL TANK (1109- ))
77229-47100	Clamp, Breather Tube	Fuel Tank & Tube ([09.2011 - ] FUEL TANK (1109- ))
77241-33011	Clip, Tube Joint	Fuel Tank & Tube ([09.2011 - ] FUEL TANK (1109- ))
77277-47050	Protector, Fuel Tank Filler Pipe	Fuel Tank & Tube ([09.2011 - ] FUEL TANK (1109- ))
77281-47090	Clamp, Fuel Hose(For Rear Fuel Main)	Fuel Tank & Tube ([09.2011 - ] FUEL TANK (1109- ))
77285-47080	Clamp, Fuel Tube, No.1	Fuel Tank & Tube ([09.2011 - ] FUEL TANK (1109- ))
77291-47060	Shield, Fuel Tank Filler Pipe	Fuel Tank & Tube ([09.2011 - ] FUEL TANK (1109- ))
77300-47040	Cap Assy, Fuel Tank	Fuel Tank & Tube ([09.2011 - ] FUEL TANK (1109- ))
77300-53030	Cap Assy, Fuel Tank	Fuel Tank & Tube ([09.2011 - ] FUEL TANK (1109- ))
77316-75020	Gasket, Fuel Tank Cap	Fuel Tank & Tube ([09.2011 - ] FUEL TANK (1109- ))
77391-12020	Ring, Fuel Inlet Box	Fuel Tank & Tube ([09.2011 - ] FUEL TANK (1109- ))
77391-75010	Ring, Fuel Inlet Box	Fuel Tank & Tube ([09.2011 - ] FUEL TANK (1109- ))
77404-47110	Hose Sub-Assy, Fuel Tank Vent	Fuel Tank & Tube ([09.2011 - ] FUEL TANK (1109- ))
77404-47130	Hose Sub-Assy,fuel Tank Vent	Fuel Tank & Tube ([09.2011 - ] FUEL TANK (1109- ))
77512-35140	Bracket, Fuel Tank	Fuel Tank & Tube ([09.2011 - ] FUEL TANK (1109- ))
77601-47060	Band Sub-Assy, Fuel Tank, No.1 Rh	Fuel Tank & Tube ([09.2011 - ] FUEL TANK (1109- ))
77601-47110	Band Sub-Assy, Fuel Tank, No.1 Rh	Fuel Tank & Tube ([09.2011 - ] FUEL TANK (1109- ))
77602-47060	Band Sub-Assy, Fuel Tank, No.1 Lh	Fuel Tank & Tube ([09.2011 - ] FUEL TANK (1109- ))
77602-47110	Band Sub-Assy, Fuel Tank, No.1 Lh	Fuel Tank & Tube ([09.2011 - ] FUEL TANK (1109- ))
77641-47040	Protector, Fuel Tank, No.1	Fuel Tank & Tube ([09.2011 - ] FUEL TANK (1109- ))
77651-12070	Cushion, Fuel Tank, No.1	Fuel Tank & Tube ([09.2011 - ] FUEL TANK (1109- ))
77652-47010	Cushion, Fuel Tank, No.2	Fuel Tank & Tube ([09.2011 - ] FUEL TANK (1109- ))
77681-21010	Seat, Fuel Tank Band, Rh	Fuel Tank & Tube ([09.2011 - ] FUEL TANK (1109- ))
77681-28060	Seat, Fuel Tank Band, Rh	Fuel Tank & Tube ([09.2011 - ] FUEL TANK (1109- ))
77681-47030	Seat, Fuel Tank Band, Lh	Fuel Tank & Tube ([09.2011 - ] FUEL TANK (1109- ))
77730-47040	Canister Assy, Charcoal	Fuel Tank & Tube ([09.2011 - ] FUEL TANK (1109- ))
77740-47080	Canister Assy, Charcoal	Fuel Tank & Tube ([09.2011 - ] FUEL TANK (1109- ))
77785-12010	Harness, Fuel Pump	Fuel Tank & Tube ([09.2011 - ] FUEL TANK (1109- ))
77785-12020	Harness, Fuel Pump	Fuel Tank & Tube ([09.2011 - ] FUEL TANK (1109- ))
77785-12021	Harness, Fuel Pump	Fuel Tank & Tube ([09.2011 - ] FUEL TANK (1109- ))
77785-52101	Harness, Fuel Pump	Fuel Tank & Tube ([09.2011 - ] FUEL TANK (1109- ))
77785-52110	Harness, Fuel Pump	Fuel Tank & Tube ([09.2011 - ] FUEL TANK (1109- ))
90119-10909	Bolt	Fuel Tank & Tube ([09.2011 - ] FUEL TANK (1109- ))
90301-04013	Ring, O(For Fuel Pump)	Fuel Tank & Tube ([09.2011 - ] FUEL TANK (1109- ))
90301-08020	Ring, O(For Fuel Pump)	Fuel Tank & Tube ([09.2011 - ] FUEL TANK (1109- ))
90301-15024	Ring, O(For Fuel Pump)	Fuel Tank & Tube ([09.2011 - ] FUEL TANK (1109- ))
90460-40005	Clamp (For Fuel Filler Pipe)	Fuel Tank & Tube ([09.2011 - ] FUEL TANK (1109- ))
90460-46005	Clamp (For Fuel Filler Pipe)	Fuel Tank & Tube ([09.2011 - ] FUEL TANK (1109- ))
91671-A0820	New Genuine Part	Fuel Tank & Tube ([09.2011 - ] FUEL TANK (1109- ))
91673-A1025	New Genuine Part	Fuel Tank & Tube ([09.2011 - ] FUEL TANK (1109- ))
94151-80840	NUT, FLANGE	Fuel Tank & Tube ([09.2011 - ] FUEL TANK (1109- ))
96136-41901	Clip Or Clamp(For Ventilation Hose)	Fuel Tank & Tube ([09.2011 - ] FUEL TANK (1109- ))
