Search › Model › ZVW41

ZVW41

Toyota PRIUS · 2011 · 4,573 parts · 192 categories

4,573 items

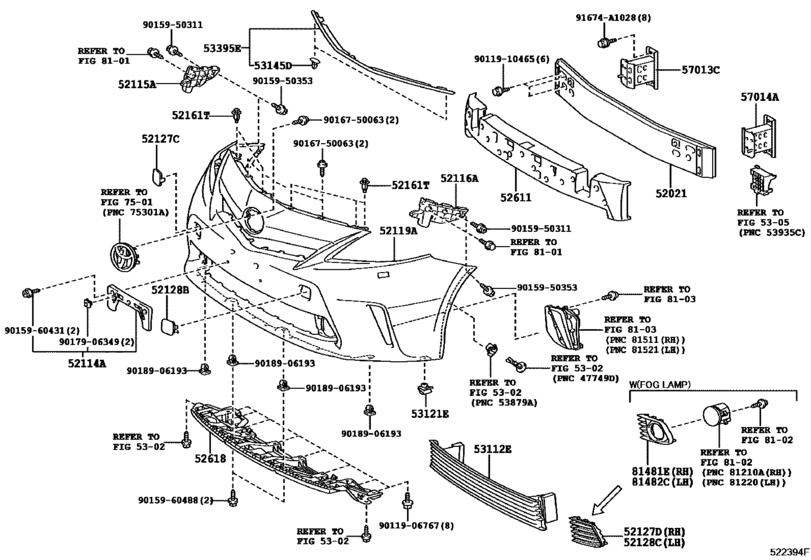

Front Bumper & Bumper Stay ([09.2011 - 11.2014] (1109-1411)) 48

#	OEM	Part name
52021	52021-47060	Reinforcement Sub-Assy, Front Bumper
52021	52021-47100	Reinforcement Sub-Assy, Front Bumper
52021	52021-47050	Reinforcement Sub-Assy, Front Bumper
52021	52021-47160	Reinforcement Sub-Assy, Front Bumper
52114	52114-47100	Bracket, Front Bumper Extention Mounting
52114	52114-47160	Bracket, Front Bumper Extention Mounting
52115	52115-47030	Support, Front Bumper Side, Rh
52116	52116-47030	Support, Front Bumper Side, Lh
52119	52119-47923	Cover, Front Bumper
52119	52119-47924	Cover, Front Bumper
52119	52119-47925	Cover, Front Bumper
52119	52119-47926	Cover, Front Bumper
52119	52119-47949	Cover, Front Bumper
52127	52127-47060	Cover, Front Bumper Hole
52127	52127-47902	Cover, Front Bumper Hole
52127	81481-47050	Cover, Front Bumper Hole, Rh
52128	52128-47040	Cover, Front Bumper Hole, Lh
52128	52128-47902	Cover, Front Bumper Hole, Lh
52128	81482-47050	Cover, Front Bumper Hole, Lh
52161	52161-16010	Clip
52161	52161-0K040	Clip
52161	52161-02020	Clip
52611	52611-47070	Absorber, Front Bumper Energy
52611	52611-47110	Absorber, Front Bumper Energy
52611	52611-47100	Absorber, Front Bumper Energy
52618	52618-47040	Absorber, Front Bumper, Lower
52618	52618-47060	Absorber, Front Bumper, Lower
53112	53112-47050	Grille, Radiator, Lower No.1
53121	90467-05114	Clip(For Front Bumper), No.1
53145	53145-60030	Clip(For Front Bumper), No.1
53395	53395-47030	Seal, Hood To Front End Panel
57013	57013-47030	Bracket Sub-Assy, Front Side Member, Rh
57013	57013-47060	Bracket Sub-Assy, Front Side Member, Rh
57014	57014-47030	Bracket Sub-Assy, Front Side Member, Lh
57014	57014-47070	Bracket Sub-Assy, Front Side Member, Lh
81481	52030-47010	Cover, Fog Lamp, Rh
81482	52040-47010	Cover, Fog Lamp, Lh
91674	91674-A1028	BOLT FLANGE
9011906767	90119-06767	Bolt, W/washer(For Engine Under Cover)
9011910465	90119-10465	WASHER
9015950311	90159-50311	SCREW
9015950311	90159-A0034	SCREW WWASHER
9015950353	90159-50353	SCREW, W-WASHER
9015960431	90159-60431	SCREW
9015960488	90159-60488	SCREW WWASHER
9016750063	90167-50063	SCREW PAN TAPPING
9017906349	90179-06349	NUT
9018906193	90189-06193	Grommet(For Engine Under Cover)

OEM	Part name	Category
52021-47050	Reinforcement Sub-Assy, Front Bumper	Front Bumper & Bumper Stay ([09.2011 - 11.2014] (1109-1411))
52021-47060	Reinforcement Sub-Assy, Front Bumper	Front Bumper & Bumper Stay ([09.2011 - 11.2014] (1109-1411))
52021-47100	Reinforcement Sub-Assy, Front Bumper	Front Bumper & Bumper Stay ([09.2011 - 11.2014] (1109-1411))
52021-47160	Reinforcement Sub-Assy, Front Bumper	Front Bumper & Bumper Stay ([09.2011 - 11.2014] (1109-1411))
52030-47010	Cover, Fog Lamp, Rh	Front Bumper & Bumper Stay ([09.2011 - 11.2014] (1109-1411))
52040-47010	Cover, Fog Lamp, Lh	Front Bumper & Bumper Stay ([09.2011 - 11.2014] (1109-1411))
52114-47100	Bracket, Front Bumper Extention Mounting	Front Bumper & Bumper Stay ([09.2011 - 11.2014] (1109-1411))
52114-47160	Bracket, Front Bumper Extention Mounting	Front Bumper & Bumper Stay ([09.2011 - 11.2014] (1109-1411))
52115-47030	Support, Front Bumper Side, Rh	Front Bumper & Bumper Stay ([09.2011 - 11.2014] (1109-1411))
52116-47030	Support, Front Bumper Side, Lh	Front Bumper & Bumper Stay ([09.2011 - 11.2014] (1109-1411))
52119-47923	Cover, Front Bumper	Front Bumper & Bumper Stay ([09.2011 - 11.2014] (1109-1411))
52119-47924	Cover, Front Bumper	Front Bumper & Bumper Stay ([09.2011 - 11.2014] (1109-1411))
52119-47925	Cover, Front Bumper	Front Bumper & Bumper Stay ([09.2011 - 11.2014] (1109-1411))
52119-47926	Cover, Front Bumper	Front Bumper & Bumper Stay ([09.2011 - 11.2014] (1109-1411))
52119-47949	Cover, Front Bumper	Front Bumper & Bumper Stay ([09.2011 - 11.2014] (1109-1411))
52127-47060	Cover, Front Bumper Hole	Front Bumper & Bumper Stay ([09.2011 - 11.2014] (1109-1411))
52127-47902	Cover, Front Bumper Hole	Front Bumper & Bumper Stay ([09.2011 - 11.2014] (1109-1411))
52128-47040	Cover, Front Bumper Hole, Lh	Front Bumper & Bumper Stay ([09.2011 - 11.2014] (1109-1411))
52128-47902	Cover, Front Bumper Hole, Lh	Front Bumper & Bumper Stay ([09.2011 - 11.2014] (1109-1411))
52161-02020	Clip	Front Bumper & Bumper Stay ([09.2011 - 11.2014] (1109-1411))
52161-0K040	Clip	Front Bumper & Bumper Stay ([09.2011 - 11.2014] (1109-1411))
52161-16010	Clip	Front Bumper & Bumper Stay ([09.2011 - 11.2014] (1109-1411))
52611-47070	Absorber, Front Bumper Energy	Front Bumper & Bumper Stay ([09.2011 - 11.2014] (1109-1411))
52611-47100	Absorber, Front Bumper Energy	Front Bumper & Bumper Stay ([09.2011 - 11.2014] (1109-1411))
52611-47110	Absorber, Front Bumper Energy	Front Bumper & Bumper Stay ([09.2011 - 11.2014] (1109-1411))
52618-47040	Absorber, Front Bumper, Lower	Front Bumper & Bumper Stay ([09.2011 - 11.2014] (1109-1411))
52618-47060	Absorber, Front Bumper, Lower	Front Bumper & Bumper Stay ([09.2011 - 11.2014] (1109-1411))
53112-47050	Grille, Radiator, Lower No.1	Front Bumper & Bumper Stay ([09.2011 - 11.2014] (1109-1411))
53145-60030	Clip(For Front Bumper), No.1	Front Bumper & Bumper Stay ([09.2011 - 11.2014] (1109-1411))
53395-47030	Seal, Hood To Front End Panel	Front Bumper & Bumper Stay ([09.2011 - 11.2014] (1109-1411))
57013-47030	Bracket Sub-Assy, Front Side Member, Rh	Front Bumper & Bumper Stay ([09.2011 - 11.2014] (1109-1411))
57013-47060	Bracket Sub-Assy, Front Side Member, Rh	Front Bumper & Bumper Stay ([09.2011 - 11.2014] (1109-1411))
57014-47030	Bracket Sub-Assy, Front Side Member, Lh	Front Bumper & Bumper Stay ([09.2011 - 11.2014] (1109-1411))
57014-47070	Bracket Sub-Assy, Front Side Member, Lh	Front Bumper & Bumper Stay ([09.2011 - 11.2014] (1109-1411))
81481-47050	Cover, Front Bumper Hole, Rh	Front Bumper & Bumper Stay ([09.2011 - 11.2014] (1109-1411))
81482-47050	Cover, Front Bumper Hole, Lh	Front Bumper & Bumper Stay ([09.2011 - 11.2014] (1109-1411))
90119-06767	Bolt, W/washer(For Engine Under Cover)	Front Bumper & Bumper Stay ([09.2011 - 11.2014] (1109-1411))
90119-10465	WASHER	Front Bumper & Bumper Stay ([09.2011 - 11.2014] (1109-1411))
90159-50311	SCREW	Front Bumper & Bumper Stay ([09.2011 - 11.2014] (1109-1411))
90159-50353	SCREW, W-WASHER	Front Bumper & Bumper Stay ([09.2011 - 11.2014] (1109-1411))
90159-60431	SCREW	Front Bumper & Bumper Stay ([09.2011 - 11.2014] (1109-1411))
90159-60488	SCREW WWASHER	Front Bumper & Bumper Stay ([09.2011 - 11.2014] (1109-1411))
90159-A0034	SCREW WWASHER	Front Bumper & Bumper Stay ([09.2011 - 11.2014] (1109-1411))
90167-50063	SCREW PAN TAPPING	Front Bumper & Bumper Stay ([09.2011 - 11.2014] (1109-1411))
90179-06349	NUT	Front Bumper & Bumper Stay ([09.2011 - 11.2014] (1109-1411))
90189-06193	Grommet(For Engine Under Cover)	Front Bumper & Bumper Stay ([09.2011 - 11.2014] (1109-1411))
90467-05114	Clip(For Front Bumper), No.1	Front Bumper & Bumper Stay ([09.2011 - 11.2014] (1109-1411))
91674-A1028	BOLT FLANGE	Front Bumper & Bumper Stay ([09.2011 - 11.2014] (1109-1411))
