ZVW41

Toyota PRIUS · 2011 · 4,573 parts · 192 categories

← Back to categories

4,573 items

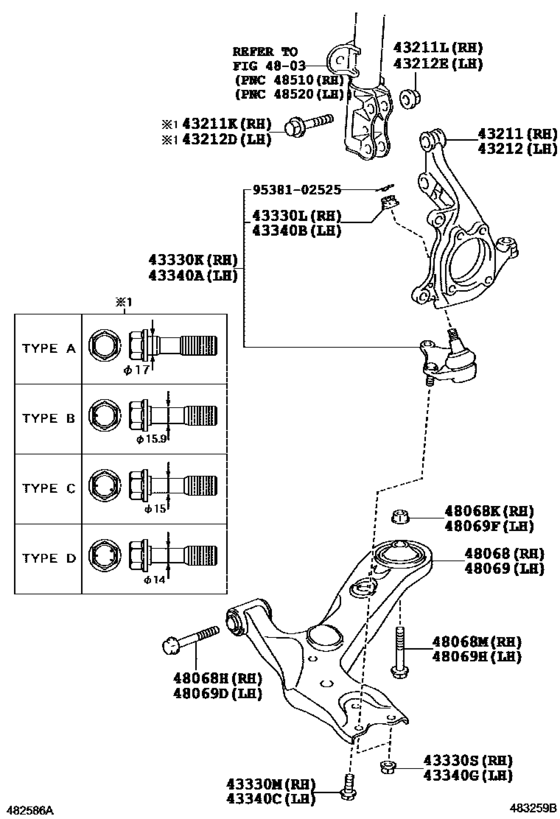

Front Axle Arm & Steering Knuckle ([09.2011 - ] (1109- )) 18

#	OEM	Part name
43211	43211-12460	Knuckle, Steering, Rh
43211	90105-17008	Bolt (For Steering Knuckle Rh)
43211	90105-17009	Bolt (For Steering Knuckle Rh)
43211	90105-17010	Bolt (For Steering Knuckle Rh)
43211	90105-17011	Bolt (For Steering Knuckle Rh)
43211	90178-17002	Nut (For Rear Axle Carrier Rh)
43212	43212-12410	Knuckle, Steering, Lh
43330	43330-19245	Joint Assy, Lower Ball, Front
43330	43330-19275	JOINT ASSY LWR BALL
43330	90171-14003	Nut, Castle (For Front Lower Ball Joint Setting)
43330	90105-12346	Bolt (For Front Lower Ball Joint)
43330	90178-12019	Nut (For Front Lower Ball Joint Setting)
48068	48068-12300	Arm Sub-Assy, Front Suspension, Lower No.1 Rh
48068	90105-16090	Bolt(For Front Suspension Lower Arm No.1 Rh)
48068	91554-L1690	Bolt(For Front Suspension Lower Arm No.1 Rh)
48068	90178-16006	Nut(For Front Suspension Lower Arm No.2 Rh)
48069	48069-12300	Arm Sub-Assy, Front Suspension, Lower No.1 Lh
9538102525	95381-02525	PINCOTTER

OEM	Part name	Category
43211-12460	Knuckle, Steering, Rh	Front Axle Arm & Steering Knuckle ([09.2011 - ] (1109- ))
43212-12410	Knuckle, Steering, Lh	Front Axle Arm & Steering Knuckle ([09.2011 - ] (1109- ))
43330-19245	Joint Assy, Lower Ball, Front	Front Axle Arm & Steering Knuckle ([09.2011 - ] (1109- ))
43330-19275	JOINT ASSY LWR BALL	Front Axle Arm & Steering Knuckle ([09.2011 - ] (1109- ))
48068-12300	Arm Sub-Assy, Front Suspension, Lower No.1 Rh	Front Axle Arm & Steering Knuckle ([09.2011 - ] (1109- ))
48069-12300	Arm Sub-Assy, Front Suspension, Lower No.1 Lh	Front Axle Arm & Steering Knuckle ([09.2011 - ] (1109- ))
90105-12346	Bolt (For Front Lower Ball Joint)	Front Axle Arm & Steering Knuckle ([09.2011 - ] (1109- ))
90105-16090	Bolt(For Front Suspension Lower Arm No.1 Rh)	Front Axle Arm & Steering Knuckle ([09.2011 - ] (1109- ))
90105-17008	Bolt (For Steering Knuckle Rh)	Front Axle Arm & Steering Knuckle ([09.2011 - ] (1109- ))
90105-17009	Bolt (For Steering Knuckle Rh)	Front Axle Arm & Steering Knuckle ([09.2011 - ] (1109- ))
90105-17010	Bolt (For Steering Knuckle Rh)	Front Axle Arm & Steering Knuckle ([09.2011 - ] (1109- ))
90105-17011	Bolt (For Steering Knuckle Rh)	Front Axle Arm & Steering Knuckle ([09.2011 - ] (1109- ))
90171-14003	Nut, Castle (For Front Lower Ball Joint Setting)	Front Axle Arm & Steering Knuckle ([09.2011 - ] (1109- ))
90178-12019	Nut (For Front Lower Ball Joint Setting)	Front Axle Arm & Steering Knuckle ([09.2011 - ] (1109- ))
90178-16006	Nut(For Front Suspension Lower Arm No.2 Rh)	Front Axle Arm & Steering Knuckle ([09.2011 - ] (1109- ))
90178-17002	Nut (For Rear Axle Carrier Rh)	Front Axle Arm & Steering Knuckle ([09.2011 - ] (1109- ))
91554-L1690	Bolt(For Front Suspension Lower Arm No.1 Rh)	Front Axle Arm & Steering Knuckle ([09.2011 - ] (1109- ))
95381-02525	PINCOTTER	Front Axle Arm & Steering Knuckle ([09.2011 - ] (1109- ))

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 192
Collected: 2026-08-02
