Search › Model › ZVW40
ZVW40

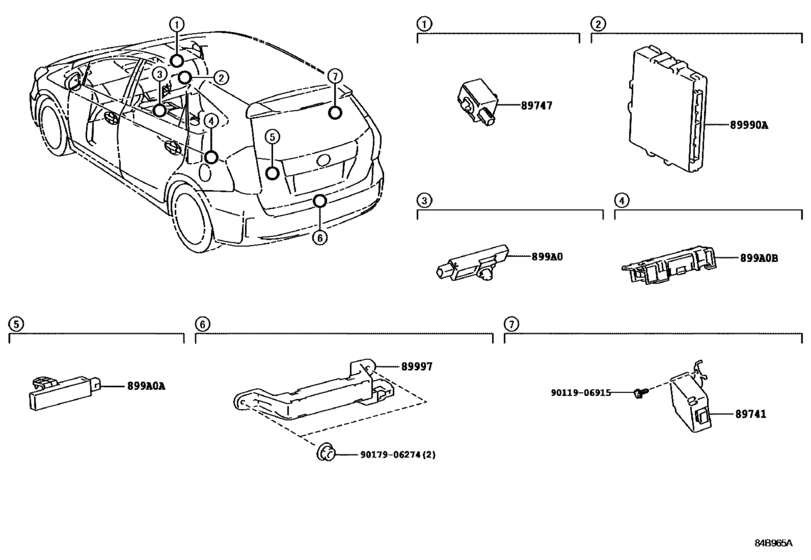

Wireless Door Lock ([03.2012 - ] (1203- )) 9
| # | OEM | Part name |
|---|---|---|
| 89741 | 89740-47080 | Receiver, Door Control |
| 89741 | 89740-47230 | Receiver, Door Control |
| 89747 | 89747-30040 | Buzzer, Wireless Door Lock |
| 89990 | 89990-47101 | Computer Assy, Smart Key |
| 89990 | 89990-47102 | Computer Assy, Smart Key |
| 89990 | 89990-47310 | Computer Assy, Smart Key |
| 89997 | 89997-30070 | Antenna, Electrical Key |
| 9011906915 | 90119-06915 | BOLT W-WASHER |
| 9017906274 | 90179-06274 | Nut |
| OEM | Part name | Category |
|---|---|---|
| 89740-47080 | Receiver, Door Control | Wireless Door Lock ([03.2012 - ] (1203- )) |
| 89740-47230 | Receiver, Door Control | Wireless Door Lock ([03.2012 - ] (1203- )) |
| 89747-30040 | Buzzer, Wireless Door Lock | Wireless Door Lock ([03.2012 - ] (1203- )) |
| 89990-47101 | Computer Assy, Smart Key | Wireless Door Lock ([03.2012 - ] (1203- )) |
| 89990-47102 | Computer Assy, Smart Key | Wireless Door Lock ([03.2012 - ] (1203- )) |
| 89990-47310 | Computer Assy, Smart Key | Wireless Door Lock ([03.2012 - ] (1203- )) |
| 89997-30070 | Antenna, Electrical Key | Wireless Door Lock ([03.2012 - ] (1203- )) |
| 90119-06915 | BOLT W-WASHER | Wireless Door Lock ([03.2012 - ] (1203- )) |
| 90179-06274 | Nut | Wireless Door Lock ([03.2012 - ] (1203- )) |
