ZVW40

Toyota PRIUS · 2011 · 4,468 parts · 247 categories

← Back to categories

4,468 items

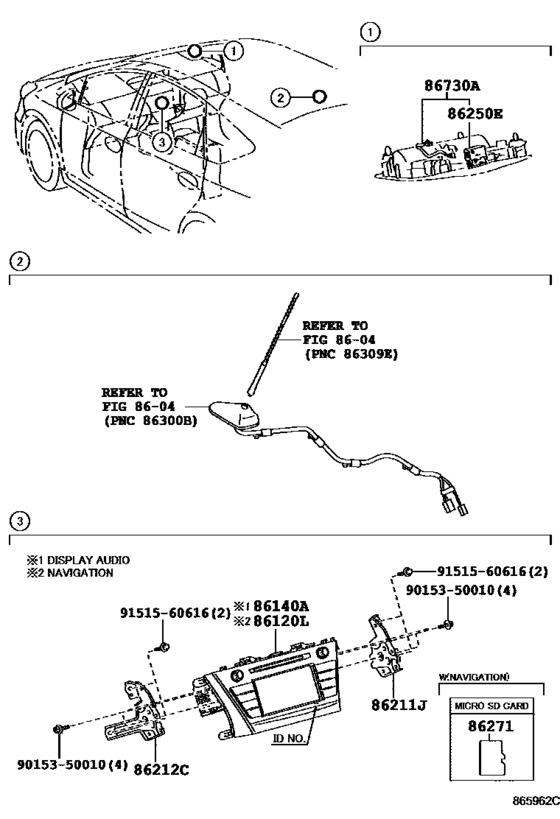

Navigation & Front Monitor Display ([04.2015 - ] (1504- )) 19

#	OEM	Part name
86120	86804-47190	Receiver Assy, Navigation
86120	86804-47280	Receiver Assy, Navigation
86140	86140-47140	Receiver Assy, Radio & Display
86140	86140-47250	Receiver Assy, Radio & Display
86211	86211-47080	Bracket, Radio Receiver, No.1
86211	86211-47120	Bracket, Radio Receiver, No.1
86212	86212-47080	Bracket, Radio Receiver, No.2
86212	86212-47120	Bracket, Radio Receiver, No.2
86250	86250-52020	Microphone Assy, Amplifier
86271	86271-0E171	Disc, Disc Player
86271	86271-0E173	Disc, Disc Player
86271	86271-0E172	Disc, Disc Player
86271	86807-06010	Disc, Disc Player
86271	86807-06013	Disc, Disc Player
86271	86807-06011	Disc, Disc Player
86271	86807-30120	Disc, Disc Player
86730	86730-47030	Microphone Assy, Telephone
9015350010	90153-50010	BOLT
9151560616	91515-60616	BOLT FLANGE

OEM	Part name	Category
86140-47140	Receiver Assy, Radio & Display	Navigation & Front Monitor Display ([04.2015 - ] (1504- ))
86140-47250	Receiver Assy, Radio & Display	Navigation & Front Monitor Display ([04.2015 - ] (1504- ))
86211-47080	Bracket, Radio Receiver, No.1	Navigation & Front Monitor Display ([04.2015 - ] (1504- ))
86211-47120	Bracket, Radio Receiver, No.1	Navigation & Front Monitor Display ([04.2015 - ] (1504- ))
86212-47080	Bracket, Radio Receiver, No.2	Navigation & Front Monitor Display ([04.2015 - ] (1504- ))
86212-47120	Bracket, Radio Receiver, No.2	Navigation & Front Monitor Display ([04.2015 - ] (1504- ))
86250-52020	Microphone Assy, Amplifier	Navigation & Front Monitor Display ([04.2015 - ] (1504- ))
86271-0E171	Disc, Disc Player	Navigation & Front Monitor Display ([04.2015 - ] (1504- ))
86271-0E172	Disc, Disc Player	Navigation & Front Monitor Display ([04.2015 - ] (1504- ))
86271-0E173	Disc, Disc Player	Navigation & Front Monitor Display ([04.2015 - ] (1504- ))
86730-47030	Microphone Assy, Telephone	Navigation & Front Monitor Display ([04.2015 - ] (1504- ))
86804-47190	Receiver Assy, Navigation	Navigation & Front Monitor Display ([04.2015 - ] (1504- ))
86804-47280	Receiver Assy, Navigation	Navigation & Front Monitor Display ([04.2015 - ] (1504- ))
86807-06010	Disc, Disc Player	Navigation & Front Monitor Display ([04.2015 - ] (1504- ))
86807-06011	Disc, Disc Player	Navigation & Front Monitor Display ([04.2015 - ] (1504- ))
86807-06013	Disc, Disc Player	Navigation & Front Monitor Display ([04.2015 - ] (1504- ))
86807-30120	Disc, Disc Player	Navigation & Front Monitor Display ([04.2015 - ] (1504- ))
90153-50010	BOLT	Navigation & Front Monitor Display ([04.2015 - ] (1504- ))
91515-60616	BOLT FLANGE	Navigation & Front Monitor Display ([04.2015 - ] (1504- ))
