Search › Model › ZVW40

ZVW40

Toyota PRIUS · 2011 · 4,468 parts · 247 categories

4,468 items

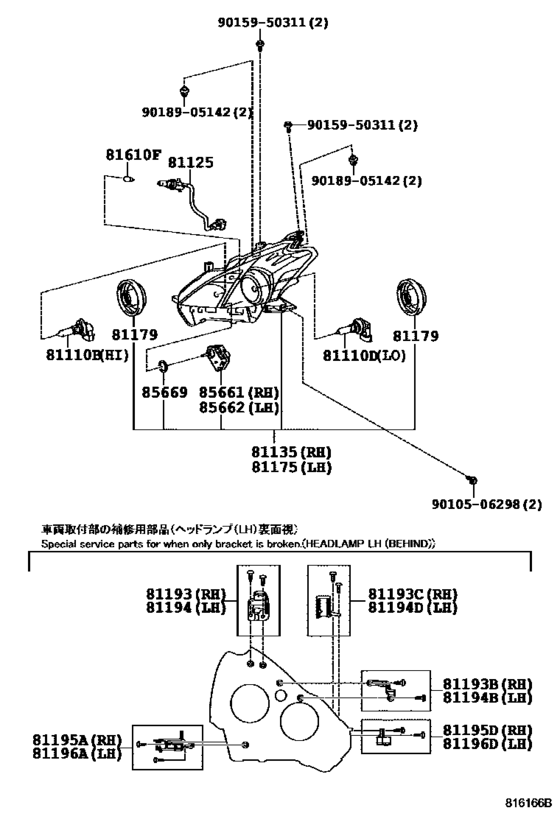

Headlamp ([03.2012 - 11.2014] HALOGEN HEADLAMP (1203-1411)) 34

#	OEM	Part name
81110	90981-13046	Bulb(For Headlamp, No.1) (12V, 65W)
81110	90981-13075	Bulb(For Headlamp, No.1)
81125	81125-47280	Cord, Headlamp
81125	81125-47660	Cord, Headlamp
81135	81130-47280	Unit Assy, Headlamp, Rh
81135	81140-47660	Unit Assy, Headlamp, Rh
81135	81145-47290	Unit Assy, Headlamp, Rh
81135	81145-47590	Unit Assy, Headlamp, Rh
81175	81070-47660	Unit Assy, Headlamp, Lh
81175	81170-47280	Unit Assy, Headlamp, Lh
81175	81185-47290	Unit Assy, Headlamp, Lh
81175	81185-47590	Unit Assy, Headlamp, Lh
81179	90075-65006	Cover, Headlamp Back, No.1
81193	81193-47050	Retainer, Headlamp Protector, Upper Rh
81193	81193-47060	Retainer, Headlamp Protector, Upper Rh No.2
81193	81193-47090	Retainer, Rh Headlamp Protector, Upper Rh
81194	81194-47050	Retainer, Headlamp Protector, Upper Lh
81194	81194-47060	Retainer, Headlamp Protector, Upper Lh No.2
81194	81194-47090	Retainer, Lh Headlamp Protector, Upper Lh
81195	81195-47050	Retainer, Headlamp Protector, Lower Rh
81195	81195-47060	Retainer, Headlamp Protector, Lower Rh No.2
81195	81195-47130	Retainer, Headlamp Protector, Lower Rh No.2
81196	81196-47050	Retainer, Headlamp Protector, Lower Lh
81196	81196-47060	Retainer, Headlamp Protector, Lower Lh No.2
81196	81196-47130	Retainer, Headlamp Protector, Lower Lh No.2
81610	99132-12050	Bulb (12V 5W)
81610	90080-81053	Bulb(For Clearance Lamp)
85661	85661-12010	Motor, Headlamp Leveling, Rh
85661	85661-12020	Motor, Headlamp Leveling, Rh
85669	90075-99120	Packing, Headlamp Leveling Motor Base
9010506298	90105-06298	BOLT FLANGE
9015950311	90159-50311	SCREW
9015950311	90159-A0034	SCREW WWASHER
9018905142	90189-05142	GROMMET, SCREW

OEM	Part name	Category
81070-47660	Unit Assy, Headlamp, Lh	Headlamp ([03.2012 - 11.2014] HALOGEN HEADLAMP (1203-1411))
81125-47280	Cord, Headlamp	Headlamp ([03.2012 - 11.2014] HALOGEN HEADLAMP (1203-1411))
81125-47660	Cord, Headlamp	Headlamp ([03.2012 - 11.2014] HALOGEN HEADLAMP (1203-1411))
81130-47280	Unit Assy, Headlamp, Rh	Headlamp ([03.2012 - 11.2014] HALOGEN HEADLAMP (1203-1411))
81140-47660	Unit Assy, Headlamp, Rh	Headlamp ([03.2012 - 11.2014] HALOGEN HEADLAMP (1203-1411))
81145-47290	Unit Assy, Headlamp, Rh	Headlamp ([03.2012 - 11.2014] HALOGEN HEADLAMP (1203-1411))
81145-47590	Unit Assy, Headlamp, Rh	Headlamp ([03.2012 - 11.2014] HALOGEN HEADLAMP (1203-1411))
81170-47280	Unit Assy, Headlamp, Lh	Headlamp ([03.2012 - 11.2014] HALOGEN HEADLAMP (1203-1411))
81185-47290	Unit Assy, Headlamp, Lh	Headlamp ([03.2012 - 11.2014] HALOGEN HEADLAMP (1203-1411))
81185-47590	Unit Assy, Headlamp, Lh	Headlamp ([03.2012 - 11.2014] HALOGEN HEADLAMP (1203-1411))
81193-47050	Retainer, Headlamp Protector, Upper Rh	Headlamp ([03.2012 - 11.2014] HALOGEN HEADLAMP (1203-1411))
81193-47060	Retainer, Headlamp Protector, Upper Rh No.2	Headlamp ([03.2012 - 11.2014] HALOGEN HEADLAMP (1203-1411))
81193-47090	Retainer, Rh Headlamp Protector, Upper Rh	Headlamp ([03.2012 - 11.2014] HALOGEN HEADLAMP (1203-1411))
81194-47050	Retainer, Headlamp Protector, Upper Lh	Headlamp ([03.2012 - 11.2014] HALOGEN HEADLAMP (1203-1411))
81194-47060	Retainer, Headlamp Protector, Upper Lh No.2	Headlamp ([03.2012 - 11.2014] HALOGEN HEADLAMP (1203-1411))
81194-47090	Retainer, Lh Headlamp Protector, Upper Lh	Headlamp ([03.2012 - 11.2014] HALOGEN HEADLAMP (1203-1411))
81195-47050	Retainer, Headlamp Protector, Lower Rh	Headlamp ([03.2012 - 11.2014] HALOGEN HEADLAMP (1203-1411))
81195-47060	Retainer, Headlamp Protector, Lower Rh No.2	Headlamp ([03.2012 - 11.2014] HALOGEN HEADLAMP (1203-1411))
81195-47130	Retainer, Headlamp Protector, Lower Rh No.2	Headlamp ([03.2012 - 11.2014] HALOGEN HEADLAMP (1203-1411))
81196-47050	Retainer, Headlamp Protector, Lower Lh	Headlamp ([03.2012 - 11.2014] HALOGEN HEADLAMP (1203-1411))
81196-47060	Retainer, Headlamp Protector, Lower Lh No.2	Headlamp ([03.2012 - 11.2014] HALOGEN HEADLAMP (1203-1411))
81196-47130	Retainer, Headlamp Protector, Lower Lh No.2	Headlamp ([03.2012 - 11.2014] HALOGEN HEADLAMP (1203-1411))
85661-12010	Motor, Headlamp Leveling, Rh	Headlamp ([03.2012 - 11.2014] HALOGEN HEADLAMP (1203-1411))
85661-12020	Motor, Headlamp Leveling, Rh	Headlamp ([03.2012 - 11.2014] HALOGEN HEADLAMP (1203-1411))
90075-65006	Cover, Headlamp Back, No.1	Headlamp ([03.2012 - 11.2014] HALOGEN HEADLAMP (1203-1411))
90075-99120	Packing, Headlamp Leveling Motor Base	Headlamp ([03.2012 - 11.2014] HALOGEN HEADLAMP (1203-1411))
90080-81053	Bulb(For Clearance Lamp)	Headlamp ([03.2012 - 11.2014] HALOGEN HEADLAMP (1203-1411))
90105-06298	BOLT FLANGE	Headlamp ([03.2012 - 11.2014] HALOGEN HEADLAMP (1203-1411))
90159-50311	SCREW	Headlamp ([03.2012 - 11.2014] HALOGEN HEADLAMP (1203-1411))
90159-A0034	SCREW WWASHER	Headlamp ([03.2012 - 11.2014] HALOGEN HEADLAMP (1203-1411))
90189-05142	GROMMET, SCREW	Headlamp ([03.2012 - 11.2014] HALOGEN HEADLAMP (1203-1411))
90981-13046	Bulb(For Headlamp, No.1) (12V, 65W)	Headlamp ([03.2012 - 11.2014] HALOGEN HEADLAMP (1203-1411))
90981-13075	Bulb(For Headlamp, No.1)	Headlamp ([03.2012 - 11.2014] HALOGEN HEADLAMP (1203-1411))
99132-12050	Bulb (12V 5W)	Headlamp ([03.2012 - 11.2014] HALOGEN HEADLAMP (1203-1411))

Source: Public OEM parts-catalog data
Variants: 2 / 5
Category: 247
Collected: 2026-08-02
